JAI CV-M91 - Manual (Page 7)

CV-M91
- 6 -
HD, VD, WEN, EEN and PCLK output
GND
10
10
10k
10k
67
TTL
220
GND
10
10
10k
10k
67
TTL
220

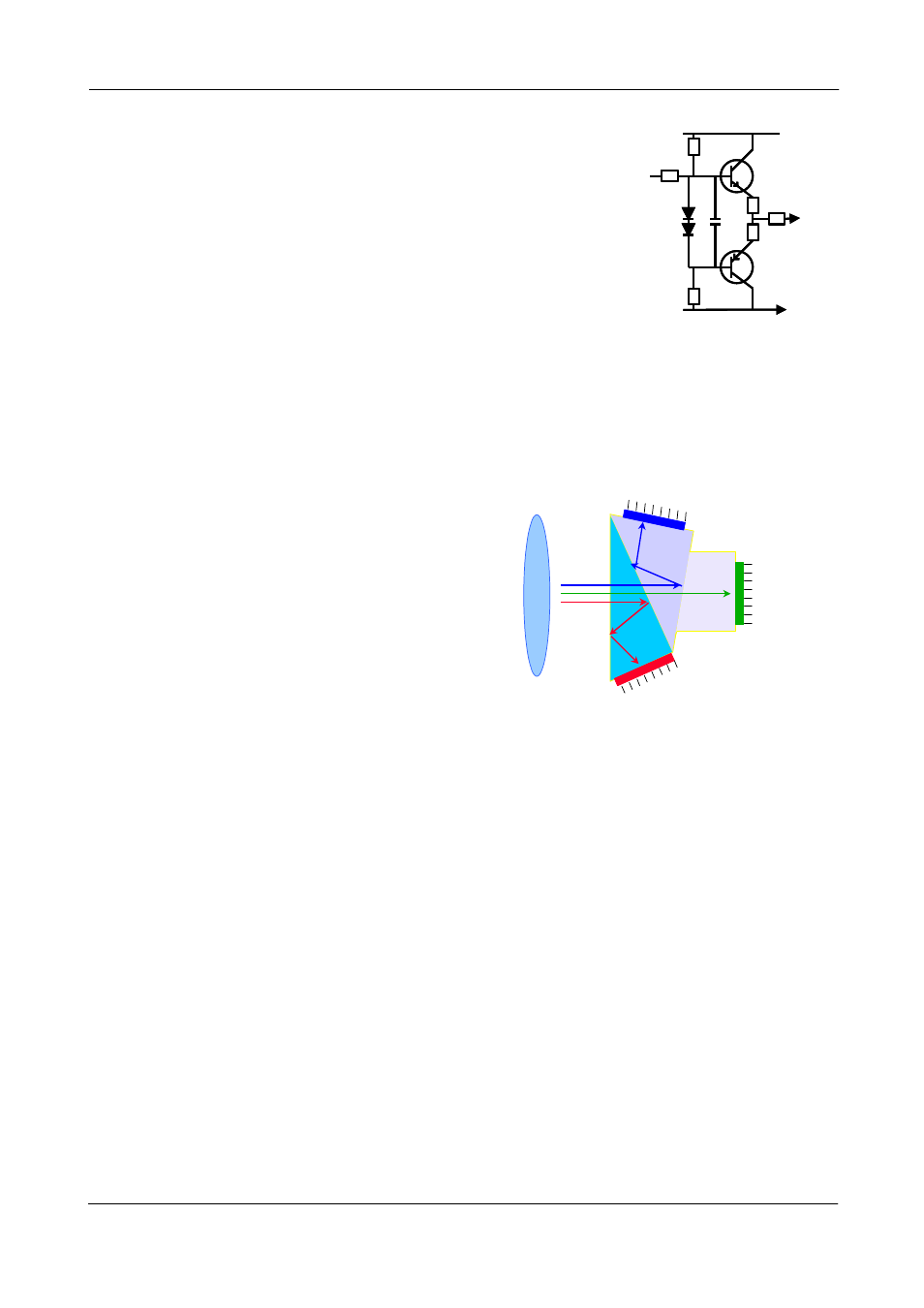

The output circuit for HD, VD, WEN, EEN and PCLK
are complementary emitter followers with 75 Ω in series.
Output level is 4V. (Non-terminated).
Fig. 7. HD and VD output.
5.5. Prism unit
Red CCD
Green CCD
Blue CCD
For best color performance, the lens
should be designed for 1/3” 3CCD camera.
Otherwise color shading can be a problem.
Fig. 9. Principle for prism unit.
