7.3. Switch and jumper positions

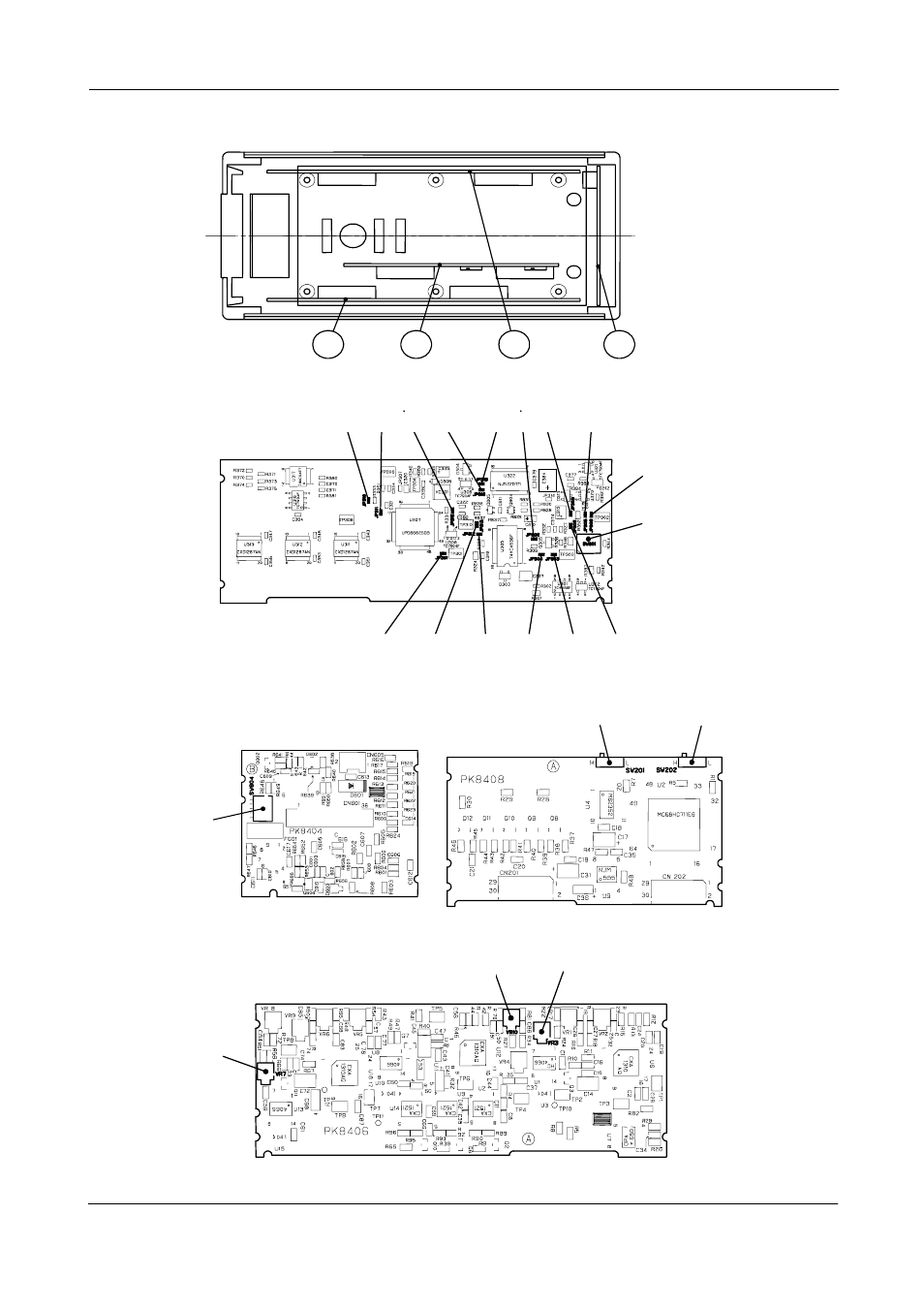

Fig. 35. Board positions.

2

3

4

1

Front

Rear

1. PK8407
2. PK8404
3. PK8406
4. PK8408












JP 312

JP 301

JP 313

JP 304 JP 303 JP 308

JP 306

SW 301

JP310 JP311 JP315 JP318 JP319 JP302 JP309 JP305

SW 301 for
75Ω term.

Fig. 36. Jumpers and switches on PK8407.










SW 604

Off <-> ON

SW 201 for

CCD iris

SW 202 for
White bal.

SW 201

Off <-> ON

SW 604 for
Video output

SW 202

Fig. 37. Switches on PK8404. Fig. 38. Switches on PK8408.











VR 7

VR 10

VR 3

VR 3 = AGC
VR 7 = Manual gain
VR 10 = CCD iris

Fig. 39. Potentiometers on PK8406.
