CV-M91

- 23 -

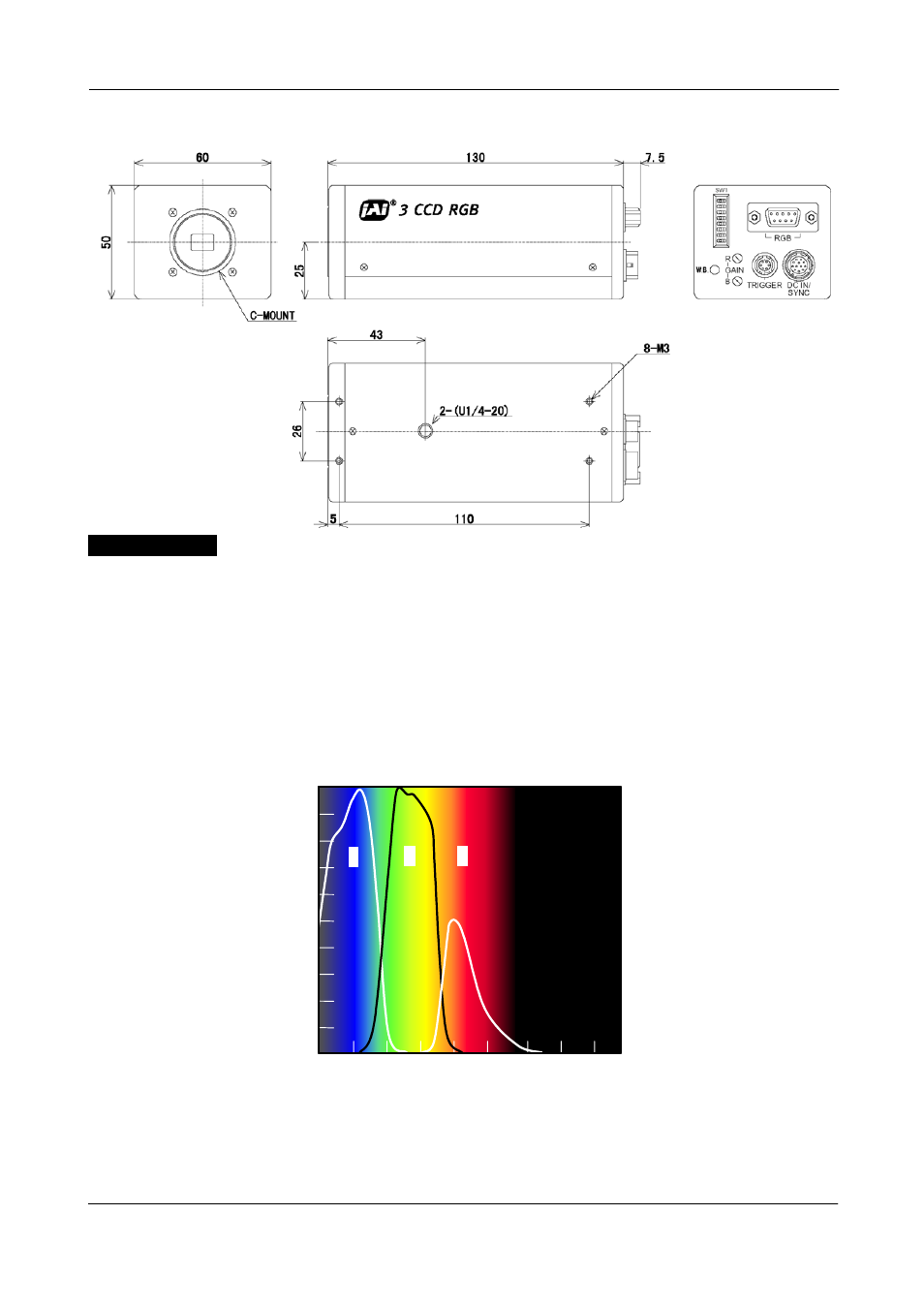

8. External Appearance and Dimensions

Important notes.

• C-mount thread on lens should be less than 4.0 mm.
• Use only lenses designed for 1/3” 3 CCD cameras.

Fig. 41. Outline.

9. Specifications

9.1. Spectral sensitivity

The resulting relative response for the prism and the CCD sensor characteristics combined.

Wave length (nm)

400

500

600

700

800

1.0

0.8

0.6

0.4

0.2

0.0

Rel

ati

ve res

po

nse

B

G

R

Wave length (nm)

400

500

600

700

800

1.0

0.8

0.6

0.4

0.2

0.0

Rel

ati

ve res

po

nse

B

G

R

Fig. 42. Spectral sensitivity for CV-M91
