GETTING STARTED
EN
7
MasterPage: Start_Right
Controls
A Index Button [INDEX] ( ੬ pg. 23)
Navigation Button [INDEX] ( ੬ pg. 36)
B Thumbnail Storing Button [STORE] ( ੬ pg. 36)
C D.S.C. Playback Select Button [SELECT]
( ੬ pg. 22, 23)
D VIDEO/MEMORY Switch ( ੬ pg. 12)
E Stop Button [8] (੬ pg. 17)
Backlight Compensation Button [BACK LIGHT]
(
੬ pg. 33)
F Rewind Button [3] (੬ pg. 17)
Manual Focus Button [FOCUS] ( ੬ pg. 32)
G Play/Pause Button [4/9] (੬ pg. 17)
Exposure Button [EXPOSURE] ( ੬ pg. 33)
H Fast-Forward Button [5] (੬ pg. 17)
Night Button [NIGHT] ( ੬ pg. 32)
I E-Mail Clip Recording Button [E-MAIL] ( ੬ pg. 24)
Information Button [INFO] ( ੬ pg. 23)
J Up Button [ ] ( ੬ pg. 27)
LCD Monitor Brightness Control [BRIGHT ]
( ੬ pg. 13)
K LED Light Button [LIGHT] ( ੬ pg. 31)
L Set Button [SET] ( ੬ pg. 27)
M Down Button [ ] ( ੬ pg. 27)
LCD Monitor Brightness Control [BRIGHT ]
( ੬ pg. 13)
N Menu Button [MENU] ( ੬ pg. 27)
O Snapshot Button [SNAPSHOT] ( ੬ pg. 21, 32)
P Power Zoom Lever [T/W] ( ੬ pg. 16)
Speaker Volume Control [VOL. +, –] ( ੬ pg. 17)
Q Diopter Adjustment Control ( ੬ pg. 13)
R Recording Start/Stop Button ( ੬ pg. 15)
S Lock Button ( ੬ pg. 12)
T Power Switch [A, M, PLAY, OFF] ( ੬ pg. 12)
U Cassette Open/Eject Switch [OPEN/EJECT]
( ੬ pg. 14)
V Battery Release Switch [BATT.] ( ੬ pg. 11)
Connectors
The connectors are located beneath the covers.
W USB (Universal Serial Bus) Connector (
੬ pg. 39)
X Digital Video Connector [DV IN/OUT] (i.Link*)
( ੬ pg. 38, 39)
Y DC Input Connector [DC] ( ੬ pg. 11)
Z Microphone connector [MIC] ( ੬ pg. 30, 40)
(An optional microphone can be used during video
recording and audio dubbing. To stabilize the
microphone, use of an optional shoe adapter is
recommended.)
a S-Video/Audio/Video Input/Output Connector [S/AV]
( ੬ pg. 18, 37, 42)
* i.Link refers to the IEEE1394-1995 industry specification
and extensions thereof. The logo is used for products
compliant with the i.Link standard.
Indicators
b POWER/CHARGE Lamp ( ੬ pg. 11, 15)
c Tally Lamp ( ੬ pg. 15, 29)
Other Parts
d Monitor Latch ( ੬ pg. 15)
e LCD Monitor ( ੬ pg. 15, 16)
f Viewfinder ( ੬ pg. 13)
g Shoulder Strap Eyelet ( ੬ pg. 10)
h Battery Pack Mount ( ੬ pg. 11)
i Speaker ( ੬ pg. 17)
j Grip Strap ( ੬ pg. 13)
k Lens
l LED Light (
੬ pg. 31)
(When using an optional conversion lens, it may cover
this area and block the light.)
m Stereo Microphone ( ੬ pg. 40)
n Remote Sensor ( ੬ pg. 19)
o Camera Sensor
(Be careful not to cover this area, a sensor necessary
for shooting is built-in here.)
p Stud Hole ( ੬ pg. 13)
q Tripod Mounting Socket ( ੬ pg. 13)
r Cassette Holder Cover ( ੬ pg. 14)
s Card Cover [MEMORY CARD] ( ੬ pg. 14)

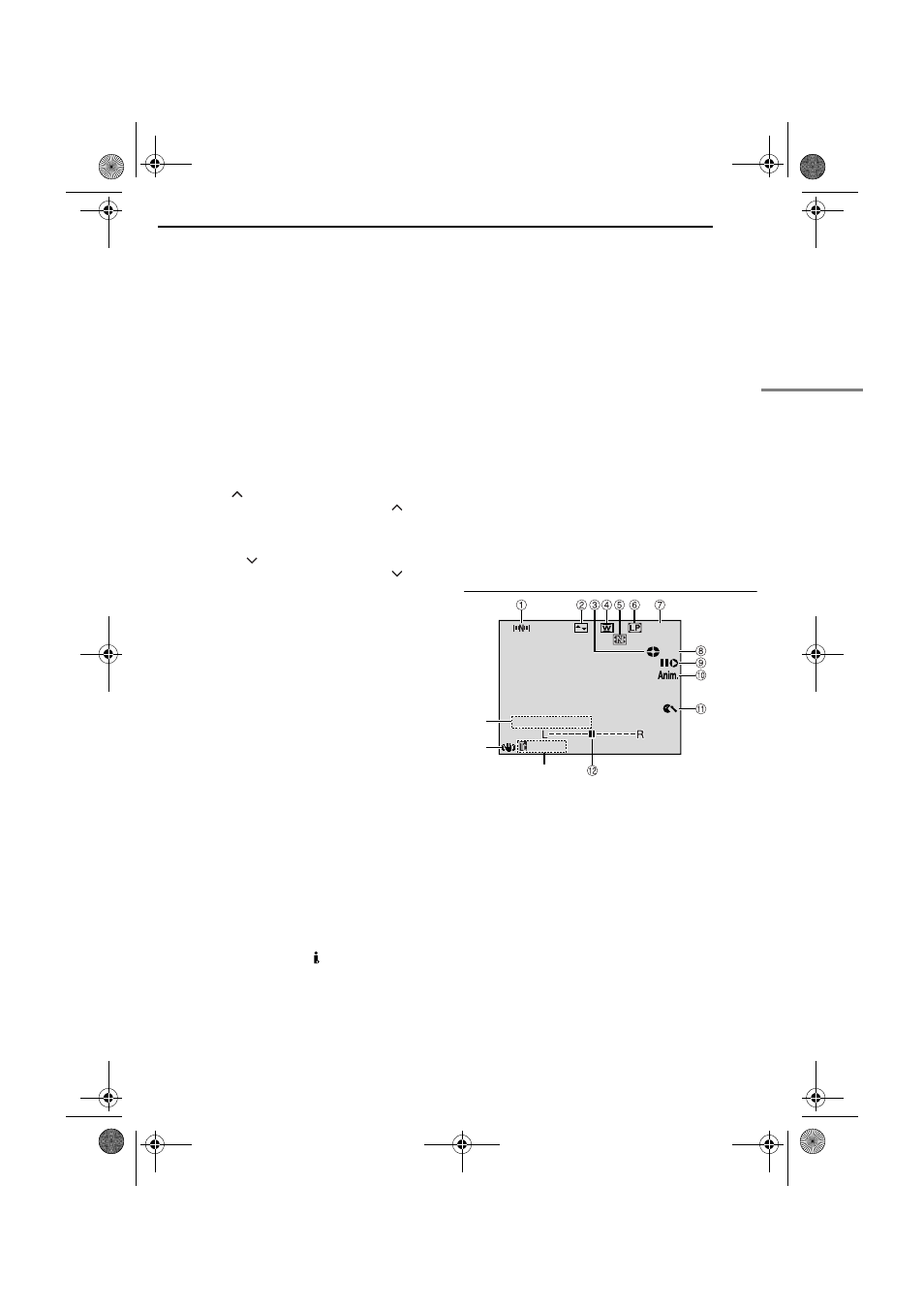

LCD Monitor/Viewfinder Indications
During Video Recording Only
a Navigation Indicator (੬ pg. 35)
B Selected Wipe/Fader Effect Indicator (
੬ pg. 34)
C Tape Running Indicator ( ੬ pg. 15)
(Rotates while tape is running.)
D Selected Wide Mode Indicator ( ੬ pg. 29)
E Thumbnail Storing Indicator ( ੬ pg. 35)
F Recording Speed Mode (SP/LP) ( ੬ pg. 27)
G Tape Remaining Time ( ੬ pg. 15)
H REC: (Appears during recording.) ( ੬ pg. 15)
PAUSE: (Appears during Record-Standby mode.)
(
੬ pg. 15)
I Insert Editing/Insert Editing Pause Mode ( ੬ pg. 40)
J 5S/Anim.: Displays the 5-Second Recording mode or
Animation recording mode. ( ੬ pg. 28)
K Wind Cut Indicator ( ੬ pg. 29)
L Auxiliary Microphone Level Indicator
(Appears when an optional microphone is connected.
੬ pg. 30, “AUX MIC” )
M Time Code ( ੬ pg. 30, 31)
N Digital Image Stabilizer (“DIS”) ( ੬ pg. 28)
O Sound Mode Indicator ( ੬ pg. 28)
(Appears for approx. 5 seconds after turning on the
camcorder.)
SOUND 12 B IT
1h40m
t
r
e
15:55
REC
