EN INDEX

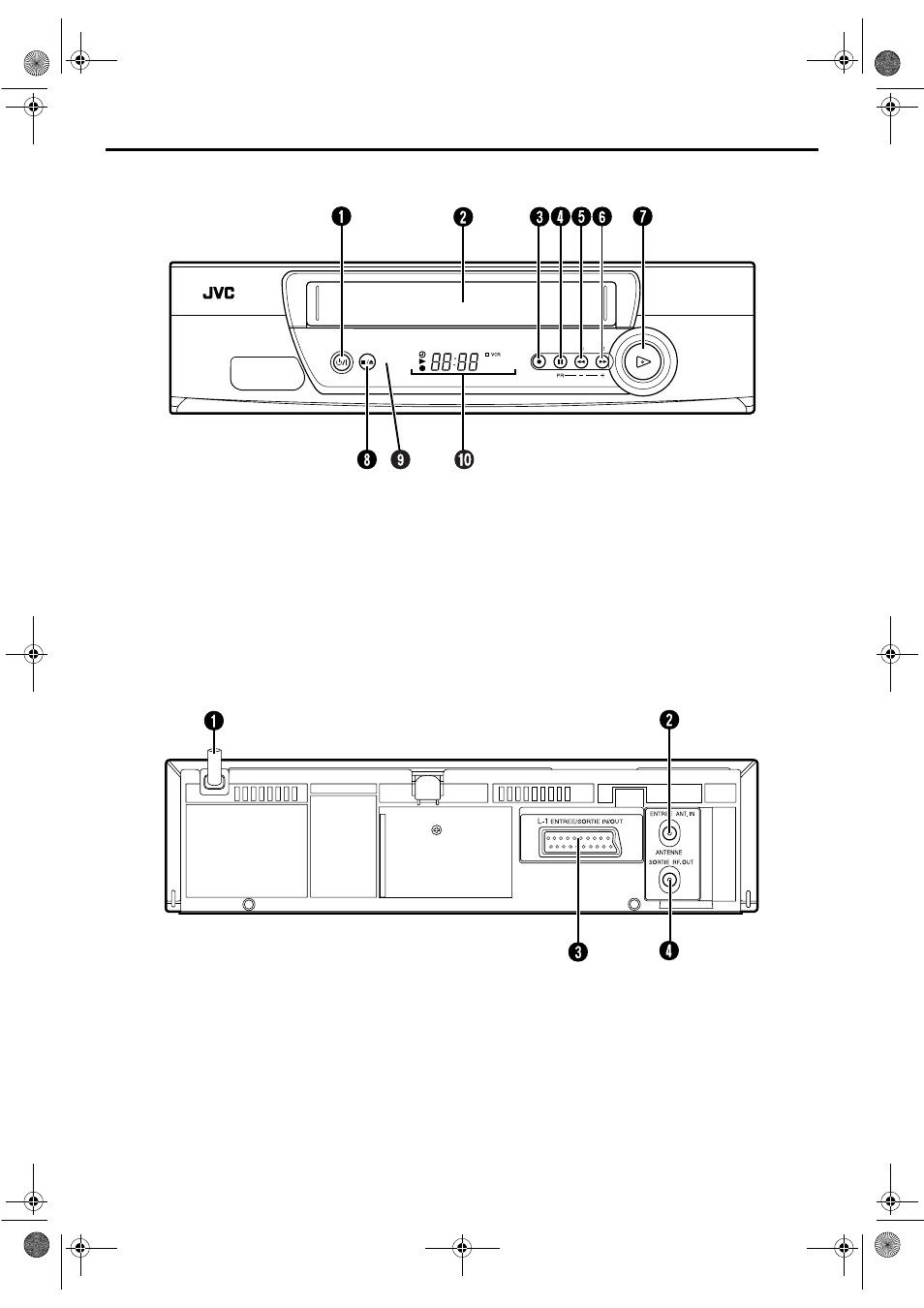

FRONT VIEW
A STANDBY/ON 1 Button ੬ pg. 8
B Cassette Loading Slot
C Record 7 Button ੬ pg. 16
D Pause 9 [PR] Button ੬ pg. 13, 16
E Rewind 3 [PR–] Button ੬ pg. 12, 13, 16
F Fast Forward 5 [PR+] Button ੬ pg. 12, 13, 16
G Play 4 Button ੬ pg. 12
H Stop/Eject 0 Button ੬ pg. 12
I Infrared Beam Receiving Window
J Front Display Panel ੬ pg. 5
REAR VIEW
A Mains Power Cord ੬ pg. 7
B ANT. IN Connector ੬ pg. 7
C L-1 IN/OUT Connector ੬ pg. 7, 24, 25
D RF. OUT Connector ੬ pg. 7
