SUBSIDIARY INFORMATION (cont.)

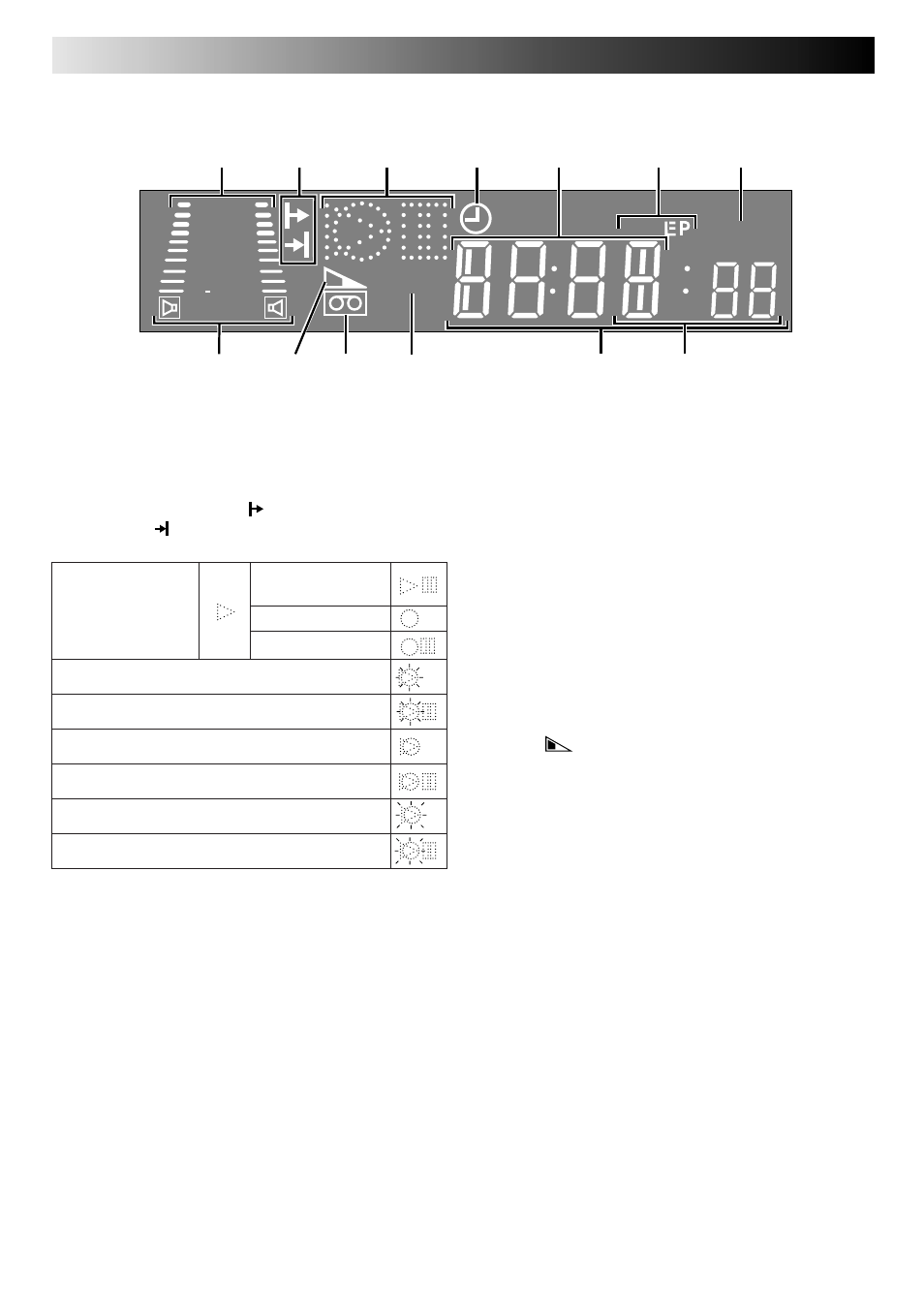

DISPLAY PANEL
1 B.E.S.T. Picture System Display lights from
bottom to top while B.E.S.T. is active.
੬
pg. 22
Audio Level Indicator displays audio input and
output levels.
੬
pg. 25
2 Programme Time Indicators show the
programme start time ( ) and the programme
stop time ( ) for timer-recording.
੬
pg. 14
3 Symbolic Mode Indicators
4 "Timer" Indicator lights when ‰ has been
pressed to engage Timer mode.
੬
pg. 13, 15
5 Channel Display shows preset position where
the station currently being received is stored.
Clock Display shows current time.
੬
pg. 7
6 Tape Speed Indicators display mode of record-
ing; light during Record or Play mode.
੬
pg. 10
* EP is only for NTSC playback.
7 Instant REVIEW Indicator blinks after timer-
recording and shows how many programmes
have been timer-recorded.
੬
pg. 19
8 Audio Mode Indicator displays audio output
mode currently selected.
੬
pg. 24
9 Tape Remaining Time Indicator displays time
remaining on tape when certain buttons are
pressed.
੬
pg. 11
0 "Cassette Loaded" Mark lights once a cassette is
inserted; remains lit until cassette ejected.
! PDC Indicator lights when PDC has been
engaged for timer recording.
੬
pg. 13, 15
* VPS (Video Programme System) recording is
not currently available in the U.K. and not
possible with this recorder.
@ Counter shows time elapsed since playback or
recording began.
With
displayed, shows time remaining from
current tape position to end of tape (
੬
pg. 11).
Counter, Preset Position*, Clock and Tape
Remaining Time Display appear alternately
when DISPLAY
(or – –:– –) is pressed.
* Preset Position is not displayed during play-
back.
# Mode shows external input mode selected (L-1,
L-2 or F-1).
STILL:
SLOW:
RECORD:
RECORD PAUSE:
PLAY:
FF/REW VARIABLE
SHUTTLE SEARCH:
REVIEW SP
VPS/PDC
+8
4
0
6
15dB
NORM
! 0 9 @ # 8
1 5 7 6 3 4 2
AUDIO DUBBING:
AUDIO DUBBING PAUSE:
INSERT:
INSERT PAUSE:
AUDIO DUBBING INSERT:
AUDIO DUBBING INSERT PAUSE:
