54

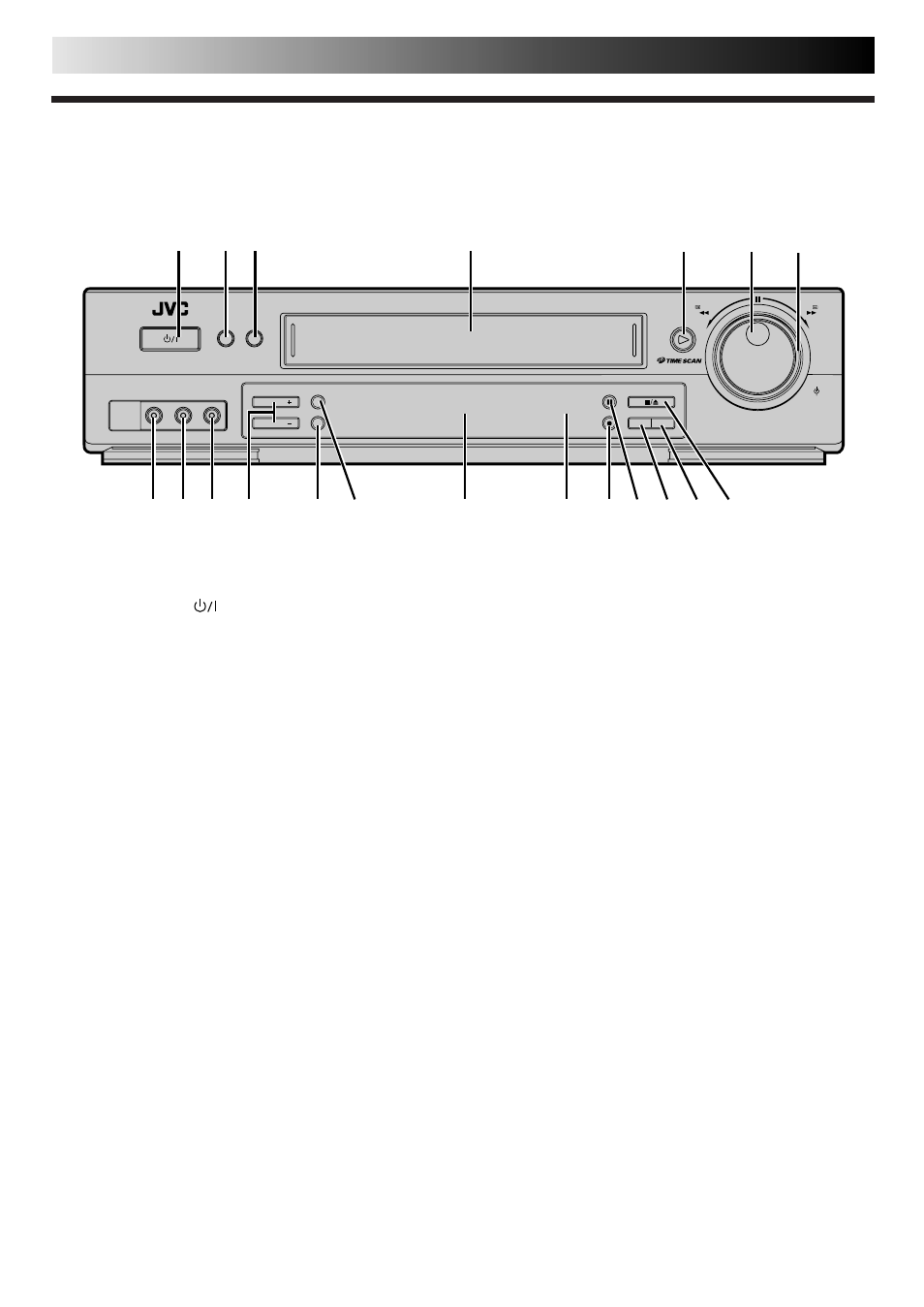

FRONT VIEW
SUBSIDIARY INFORMATION (cont.)
REW
INSERT A.DUB
FF
TV PROG/
JOG
SHUTTLE
3R PICTURE
TIMER
STANDBY/ON
VIDEO (MONO) L –AUDIO– R
SPATIALIZER
REC LINK
TV PROG
TV PROG
1 2 3
^ ) ( * & $ ! # @ 8 9 0
4 5 6 7
%
1 STANDBY/ON Button turns recorder on/off
(loading a cassette also turns power on).
2 TIMER Button engages timer standby mode.
੬
pg. 13, 15
3 SPATIALIZER Button enables/disables
Spatializer
ᮋ .
੬
pg. 25
4 Cassette Loading Slot is where cassette is
inserted; door closes, "cassette loaded" indicator
lights up on front display panel.
5 PLAY Button plays back tape
੬ pg. 8; cancels
Pause, Still, Slow, Search modes.
੬
pg. 9
6 TV PROG Dial scans to desired preset position
during Stop mode.
੬ pg. 10
JOG Dial plays back frame by frame during Still
or Play mode.
੬ pg. 9
7 TIME SCAN SHUTTLE Ring rewinds or fast-
forwards tape during Stop mode
੬ pg. 8;
performs forward and reverse slow-motion and
search (TimeScan) during Still or Play mode.
੬ pg. 9, 20
8 VIDEO Input Connector enables easy connection
of video output from another recorder or
camcorder for editing.
੬ pg. 31
9 AUDIO Input Connector [L] enables easy
connection of audio output (mono) from an-
other recorder, camcorder or other source for
editing.
੬
pg. 31
0 AUDIO Input Connector [R] enables easy
connection of audio output (Hi-Fi) from another
recorder, camcorder or other source for editing.
੬
pg. 31
! TV PROG +/– Buttons select a preset position.
੬
pg. 10
@ REC LINK Button enables/disables the Auto
Satellite Prog Rec mode.
੬
pg. 27
# 3R PICTURE Button enables/disables 3R Picture.
੬
pg. 17
$ Display Panel provides clear view of various
displays and indicators.
੬
pg. 58
% Infrared Beam Receiving Window is where
remote control should be aimed when in use.
^ RECORD Button starts regular recording (press
once), Instant Timer Recording (press twice);
sets duration of ITR.
੬ pg. 10, 11
& PAUSE Button stops tape temporarily during
recording
੬ pg. 10; stops tape temporarily
during playback; plays back frame by frame
with each additional press.
੬ pg. 9
* INSERT Button engages Insert Editing mode.
੬
pg. 32
( A.DUB Button engages Audio Dubbing mode.
੬
pg. 34
) STOP/EJECT Button stops tape; ejects tape
during Stop mode.
੬
pg. 8
Index
* Attach the provided connector cover when you do not
use the front panel connectors.
