Edit From A
Camcorder
NUMBER "0"
TV PROG
You can use a camcorder as the source player and your video
recorder as the recorder.

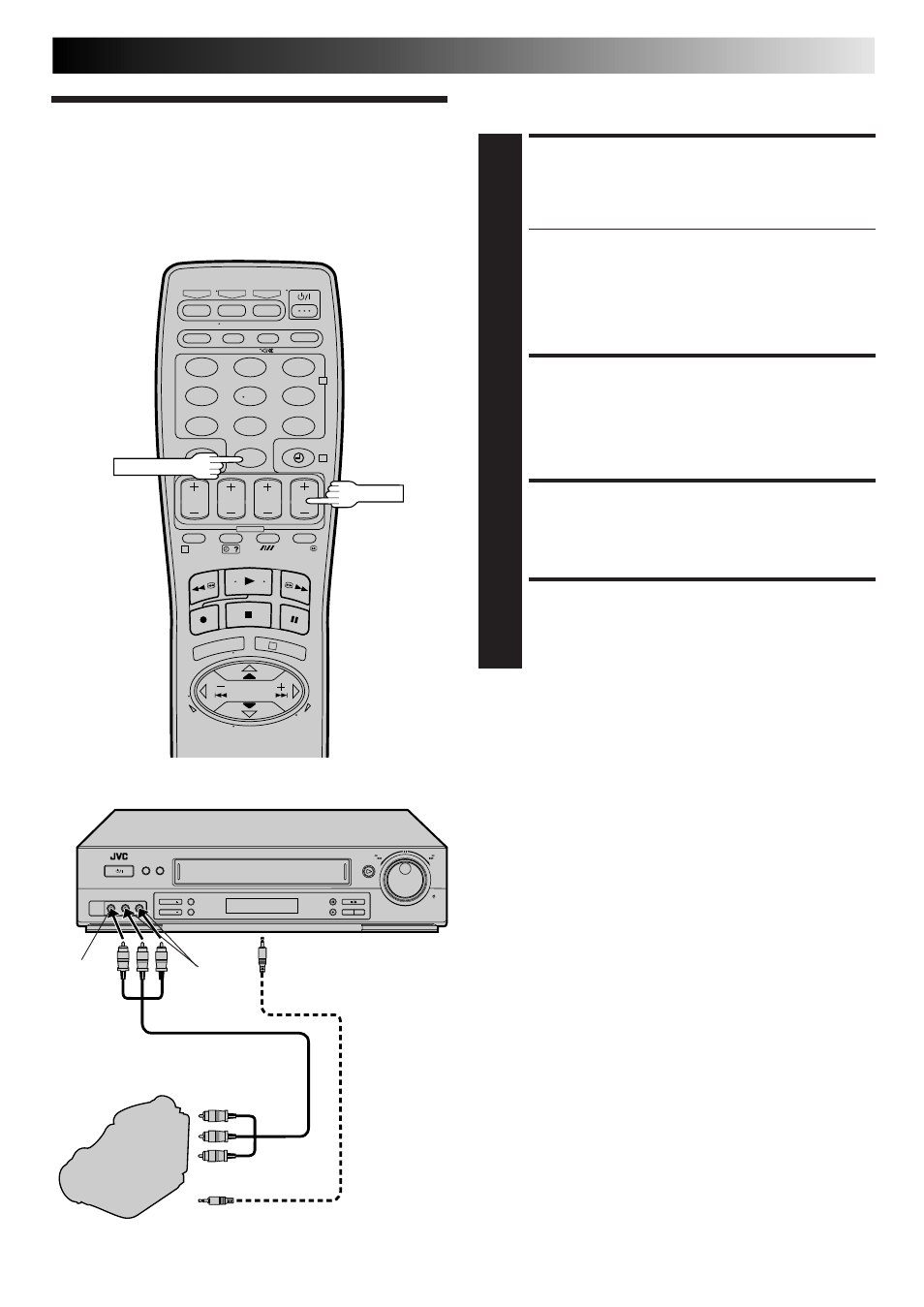

MAKE CONNECTIONS
1
Connect the camcorder’s AUDIO/VIDEO OUT
connectors to the recorder’s front panel AUDIO/VIDEO
input connectors.
● When using a monaural camcorder, connect its
AUDIO OUT connector to the AUDIO L input
connector on your recorder.
● When a Master Edit Control-equipped JVC camcorder
is used, the camcorder is capable of controlling the
recorder. Refer to the camcorder’s instruction manual
for operating procedure.
SET RECORDER’S INPUT
MODE
2
Press NUMBER key “0” and/or TV PROG so that “F-1”
appears in place of a preset position number.
START CAMCORDER
3
Engage its Play mode.
START RECORDER
4
Engage its Record mode.
NOTE:
All necessary cables can be obtained from your dealer.
Mini-Plug Cable
(not provided)
(JVC camcorder
only)
VIDEO OUT
EDIT
Camcorder
VIDEO
input
Recorder
To rear panel PAUSE
connector
AUDIO OUT
Audio/Video Cable
(not provided)
Player
AUDIO
input
