AV1 IN/OUT
AV2 IN
R L
AUDIO
PAUSE
ANT. IN
RF OUT
OUT
1
7 5 6
4 3 2
5 AV2 IN Connector enables connection of
satellite receiver or second recorder; input
recordable when "L-2" selected.
੬
pg. 26, 30
6 Remote PAUSE Connector enables connection
to second recorder equipped with R.A. Edit
connector, or to JVC camcorder equipped with
Master Edit Control, for easy editing.
੬
pg. 31
7 RF OUT Connector enables connection to
aerial terminal of TV receiver.
੬
pg. 5
1 Mains Power Cord supplies power to recorder.
੬
pg. 5
2 AV1 IN/OUT Connector enables AV connec-
tion to TV or second recorder; input recordable
when "L-1" selected.
੬
pg. 5, 30
3 AUDIO OUT (L/R) Connectors enable
connection of audio cassette recorder, TV or
second video recorder for dubbing.
੬
pg. 39
4 ANT. IN Connector enables connection of aerial.
੬
pg. 5

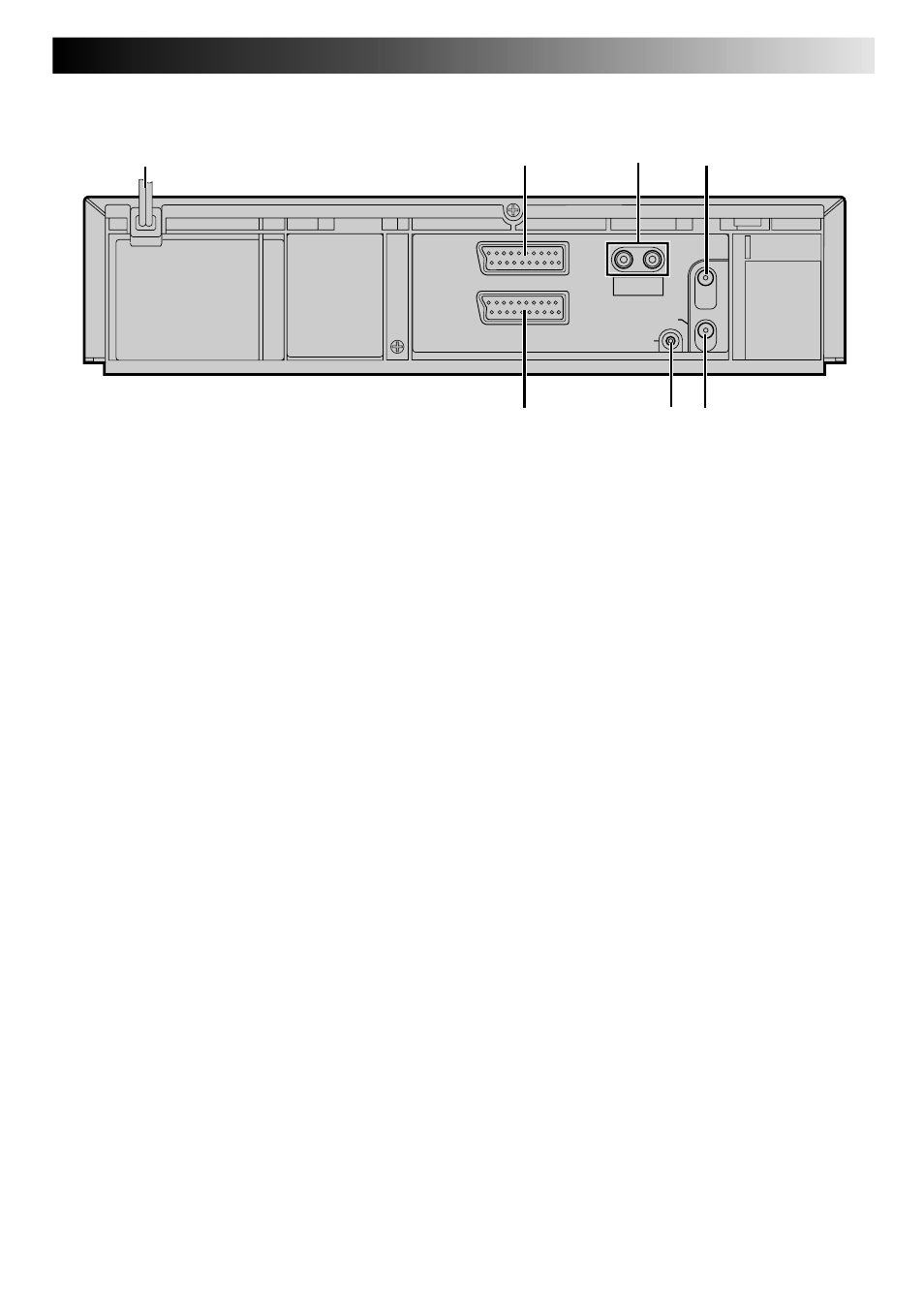

REAR VIEW
