Jackson Conserver XL2-CMR - Manual (Page 2)

The dishmachines of the Conserver XL series come
equipped with a solenoid and associated components that lift the
drain stopper during the operating cycle. This provides for efficient
and automatic draining of the machine prior to the rinse cycle. The
main component of this system is the drain solenoid itself. As with
any other electrical component, there may come a time when this
part fails and needs to be replaced.
The instructions provided here are for maintenance per-
sonnel only. Unauthorized persons should not attempt any of the
steps contained in these instructions.
Warning: many of the instructions and steps within
this document require the use of tools. Only authotized per-
sonnel should ever perform any maintenance procedure on
the dishmachine!
PREPARATION
1. Power must be secured to the unit at the service break-
er. Tag or lock out the service breaker to prevent accidental or
unauthorized energizing of the machine.
2. Ensure that the unit is completely drained prior to
beginning this maintenance action.
TOOLS REQUIRED
The following tools will be needed to perform this mainte-
nance evolution:
1. Phillipshead screwdriver
2. Needle nose pliers
3. Wire cutters
4. 3/8” nut driver
TIME REQUIRED
It is estimated that it will take (1) person thirty minutes to
perform this task, not including all of the items indicated in the sec-
tion entitled “PREPARATION”.
IMPORTANT NOTES
1. Read these instructions thoroughly before attempting
this maintenance action. Become familiar with the parts and what
actions need to be taken. This will save time in the long run!
STEPS (Conserver XL)
1. Remove the four screws holding the cover on (Consever XL).
2. Remove the cover by gripping firmly and sliding up.
3. Once the cover is removed, the solenoid and wiring are
exposed.
www.jacksonmsc.com
Conserver XL/XL2 Drain Slolenoid Replacement Instructions
Revision A (07/02/2005)
2

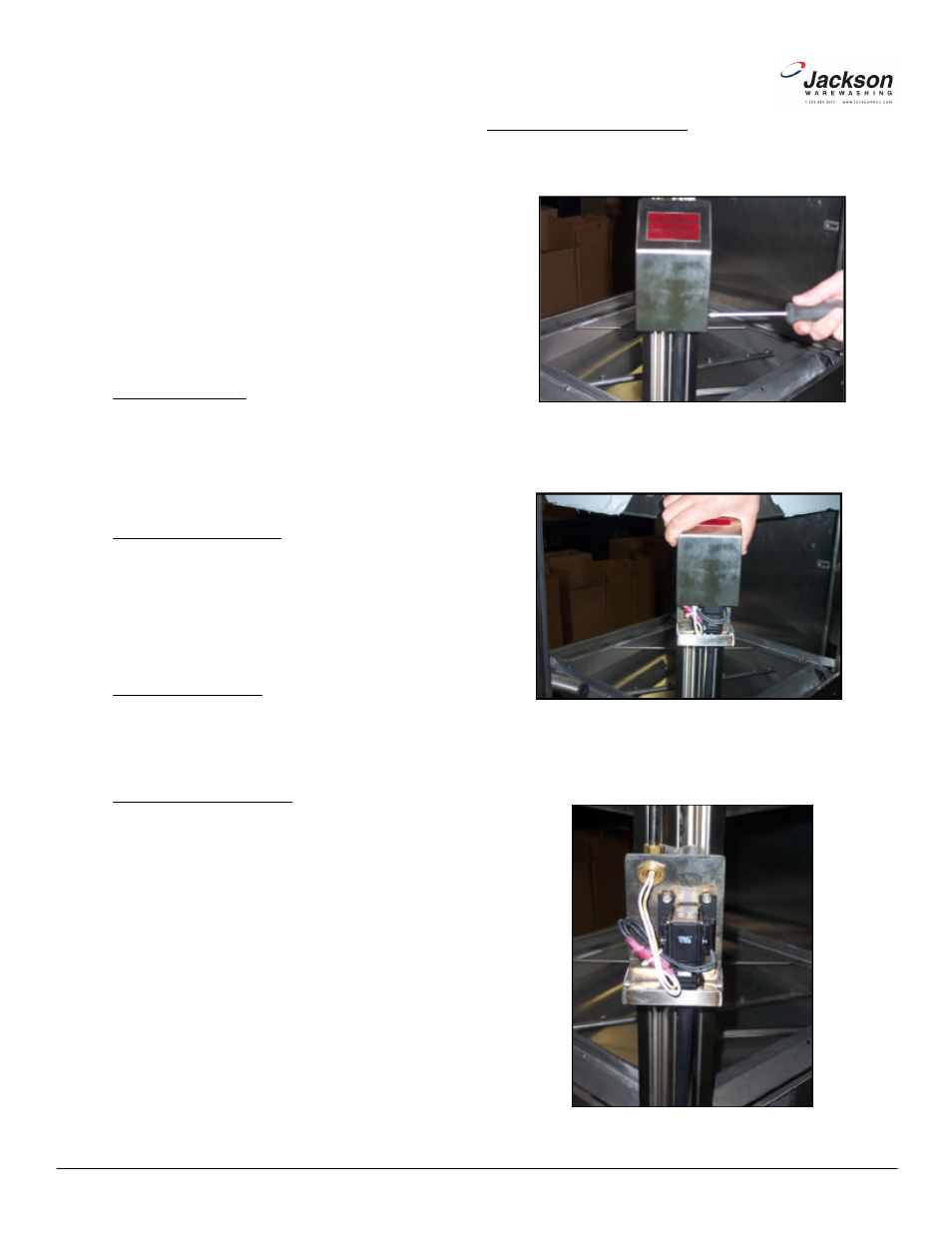

Removing screws for solenoid cover (Conserver XL)
Removing solenoid cover (Conserver XL)
Exposed solenoid and wires (Conserver XL)
