Installation Instructions
OUO6050,00012B9 –19–14OCT05–1/2

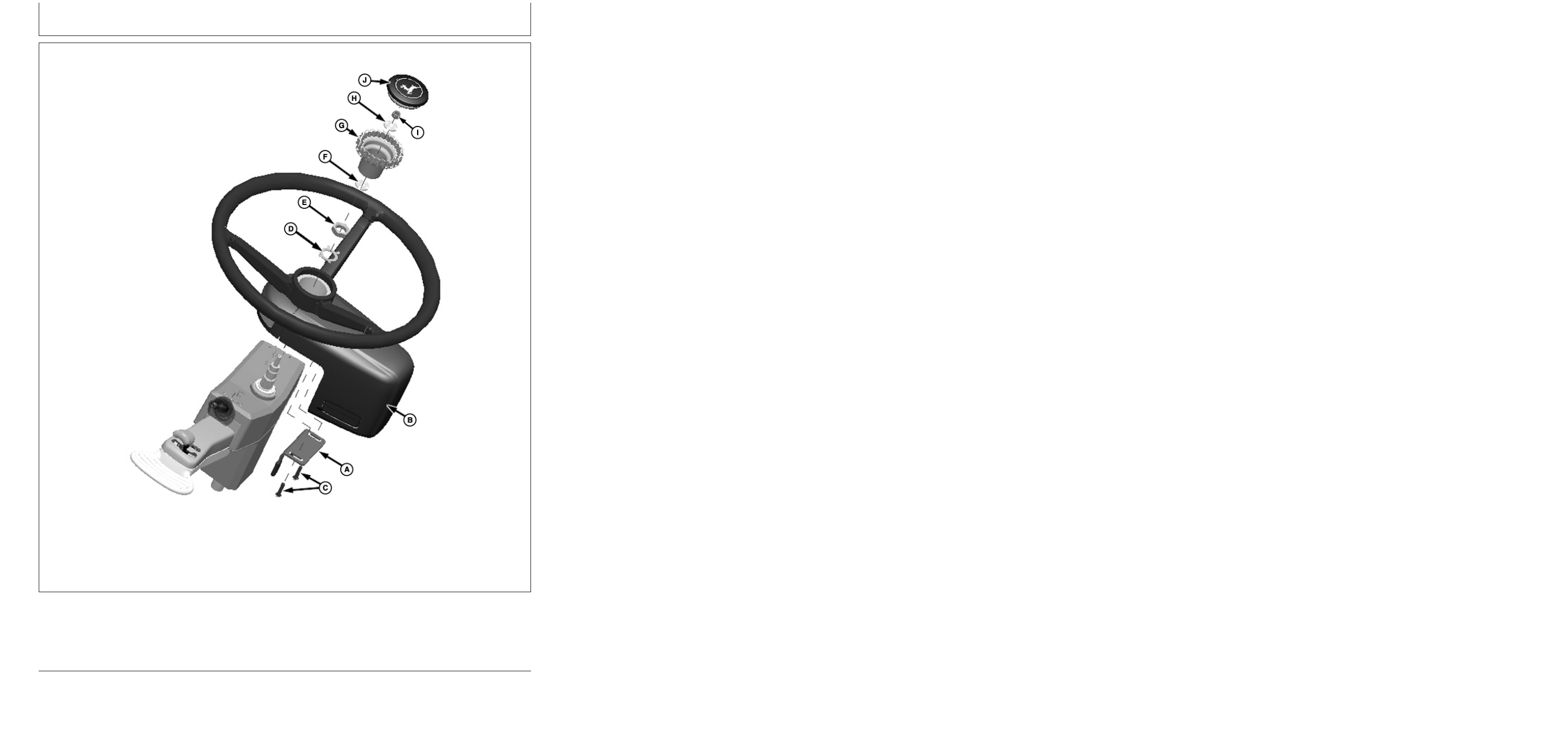

Installing Straight Anti-Rotation Bracket
PC8752
–UN–08SEP05
Ex. - JD6XX0, Small Frame JD7XX0 Tractors
A—Anti-Rotation Bracket D—Lock Washer G—Telescoping Knob I—Telescoping Rod Nut
B—Steering Unit E—Nut H—Washer J—Cap
C—Screw (2 Used) F—Washer
Continued on next page
PC20577 (22MAR06)
7
Installation Instructions
032206
PN=9
