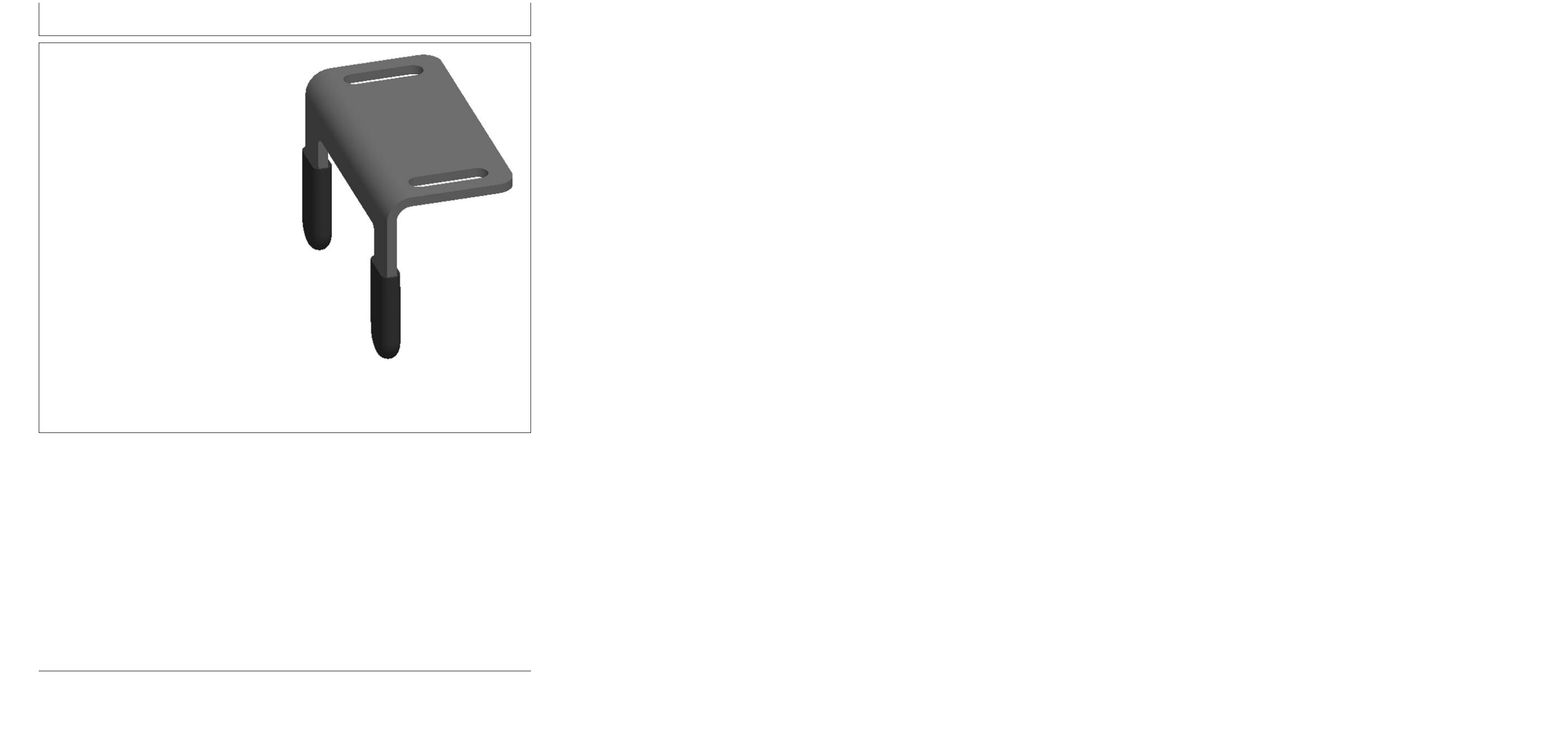

Anti-Rotation Bracket for JD6XX0, Small Frame JD7XX0 Tractors

1. Attach anti-rotation bracket (A) to steering unit (B) with

screws (C). Use slots to move bracket snug against
column.

2. Position steering unit on steering column.

NOTE: Hardware (D), (E), (F), (H), and (I) was retained

when original steering wheel was removed.

3. Attach lock washer (D) and nut (E) to steering wheel

rod.

IMPORTANT: Tighten all hardware to proper torque

according to vehicle manufacturer’s
specifications.

4. Attach washer (F), knob (G), washer (H), and nut (I) on

telescoping rod.

5. Insert cap (J) into knob.

PC20577 (22MAR06)
