Installation Instructions

OUO6050,00012B1

–19–13OCT05–1/1

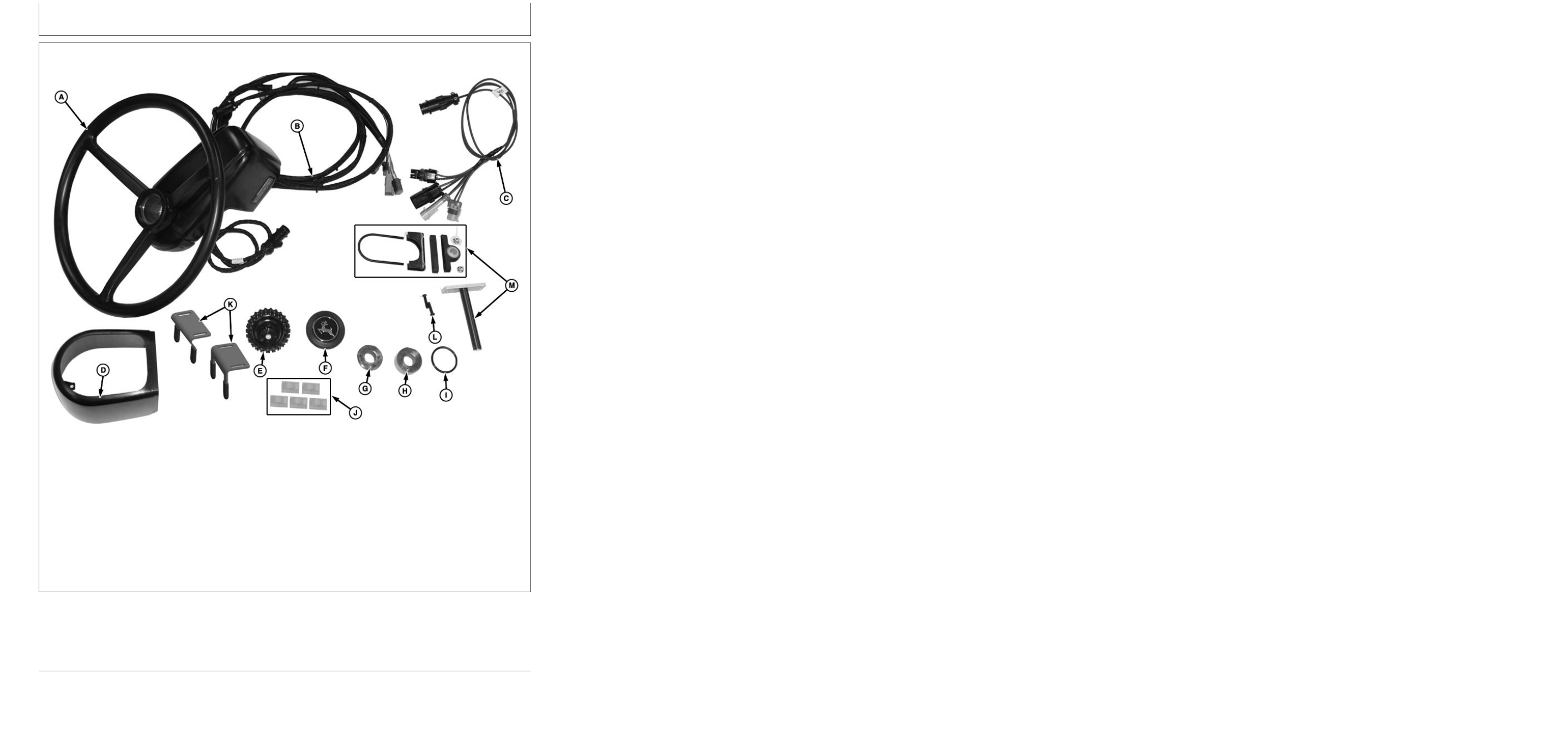

AutoTrac Universal Kit

PC8747

–UN–08SEP05

A—Steering Wheel/Motor

D—ATU Cover Used with

G—Tapered Spline Shaft

K—Anti-Rotational Brackets

Assembly

Anti-Rotation Bracket (M)

Bushing

for Consoles

B—AutoTrac Universal

E—Steering Wheel Knob (Used

H—Straight Spline Shaft

L—Screws use with bracket

Harness

to telescope steering

bushing

(K) and rod (M)

C—Operator Presence Seat

wheel)

I—Snap Ring

M—Anti-Rotation Bracket for

Switch Harness (Optional)

F—Steering Wheel Cap Cover

J—Adhesive Harness Clips

Circular Steering Columns

Also included in kit: shim kit, locking washer,
telescoping washers, manuals.

PC20577 (22MAR06)
