Page 37
32
Disabled.
High Performance Event Timer
The optional settings are: Enabled; Disabled.
Resume On RTC Alarm
Use this item to disable or enable RTC to generate a wake event.

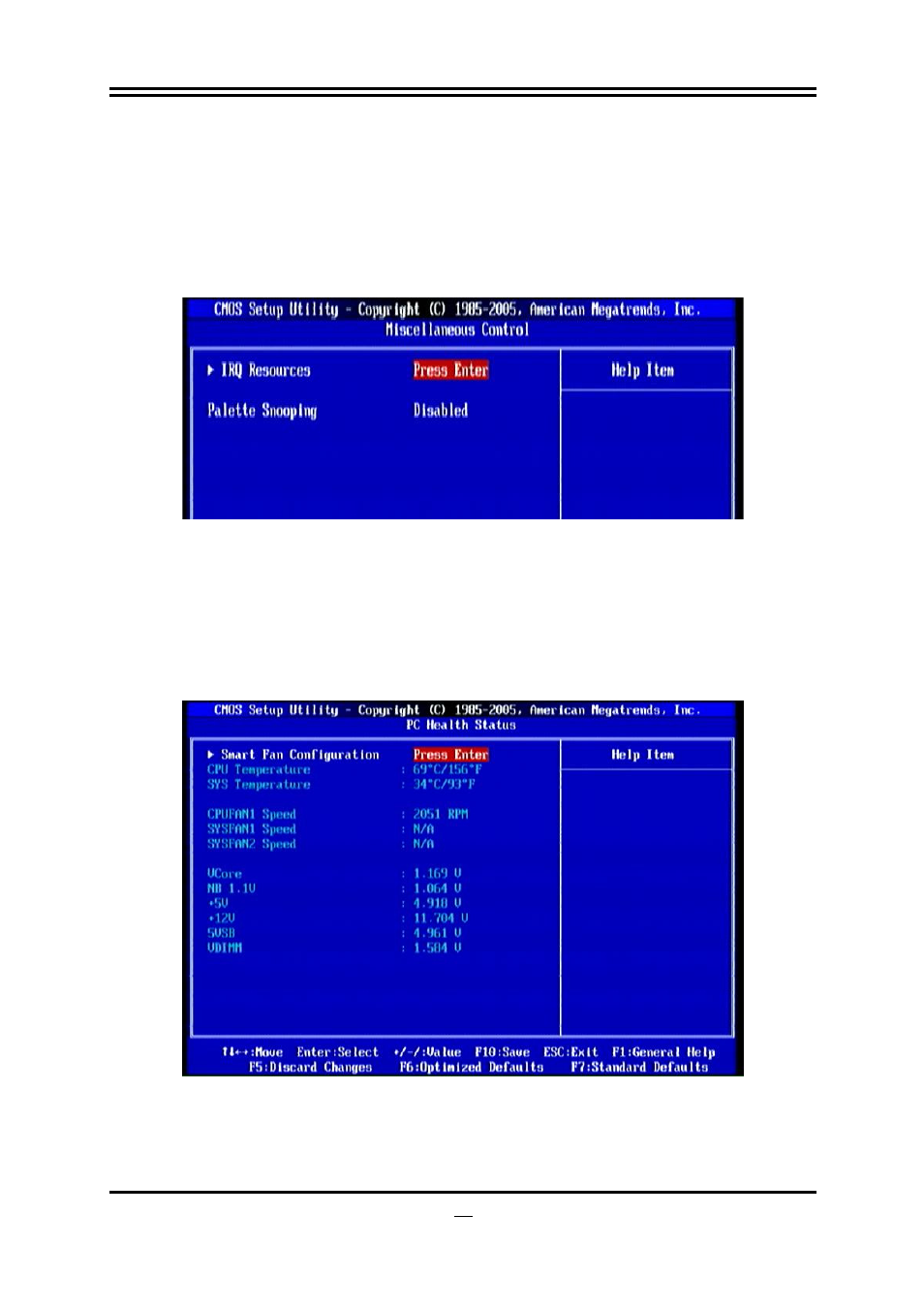

3-9 Miscellaneous Control
Palette Snooping
The optional settings are: Enabled; Disabled.
Enable: inform the PCI device that an ISA graphics devices is installed in the system
so the card will function correctly.
3-10 PC Health Status
This section shows the Status of you CPU, Fan, and Warning for overall system
status. This is only available if there is Hardware Monitor onboard.
CPU Temperature/ SYS Temperature/CPUFAAN1/SYSFAN1 Speed/SYSFAN2
Speed /VCore/NB 1.1V/+5V/+12V/5VSB/VDIMM
This will show the CPU/ /System voltage chart and FAN Speed, etc.
