the CPU socket).

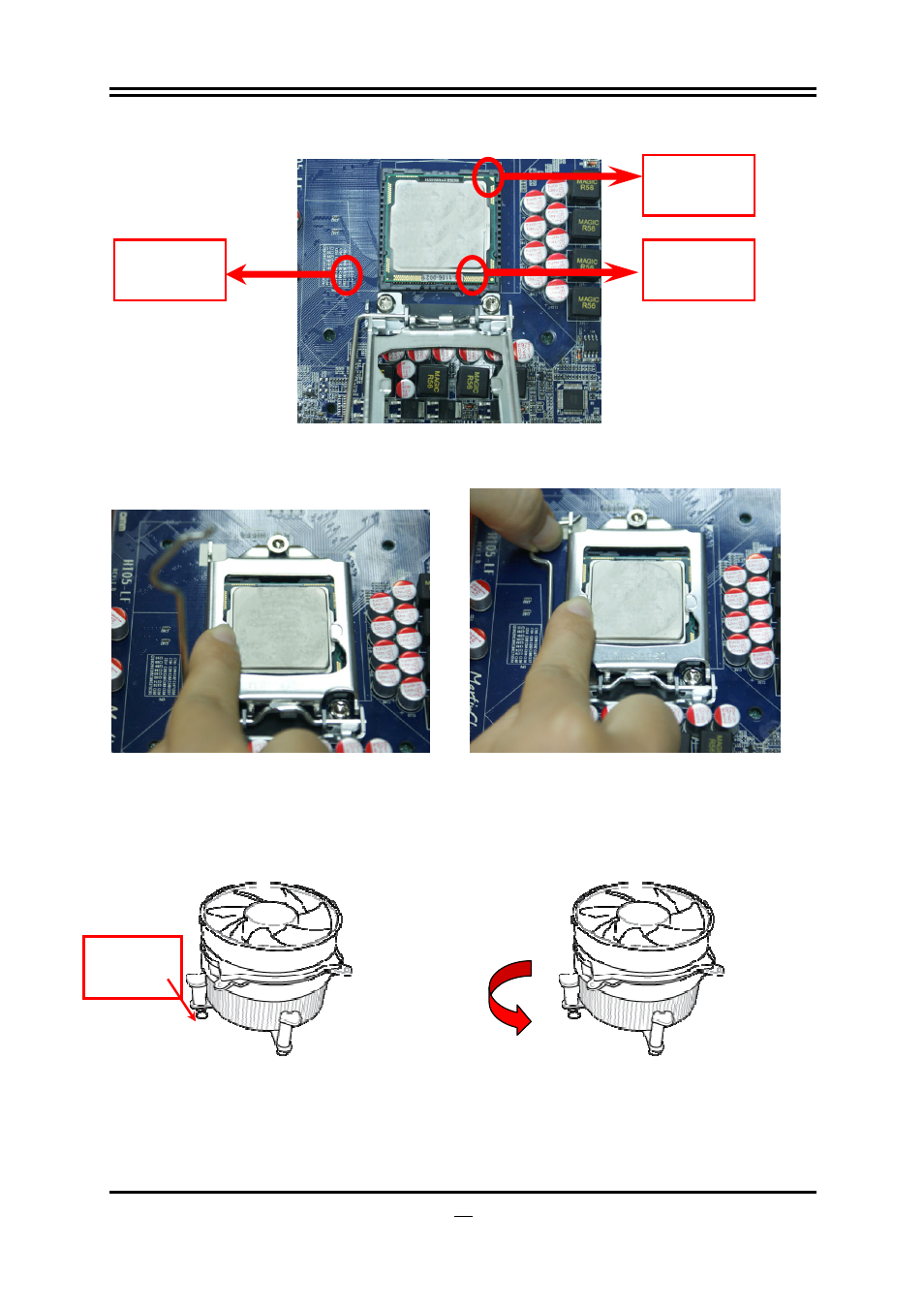

5. Make sire that golden finger in the right place as shown in the above illustration and
match the two alignment keys on the CPU with two points of the socket. CPU can only be
correctly installed with this direction. Incorrect installation might cause damage to CPU.
6． Put down the load plate in the direction shown
above.
7. Press down the load level and move it rightwards
make sure it is locked under the notch.
2-3-4 Intel Reference Thermal Solution Assembly
1. Put the heat sink vertically above the
CP-installed socket and make sure to align
the four fasteners with four holes around
the socket.
2. Revolve the four fasteners in the
counter-clockwise direction.
Pin Pin Pin Pin- -- -1 11 1
Indicator Indicator Indicator Indicator
Alignment Alignment Alignment Alignment
Key Key Key Key
Alignment Alignment Alignment Alignment
Key Key Key Key
Align the
fastener with
the hole
