3
Insignia NS-20LCD Television
www.insignia-products.com
Features
• MTS/SAP tuner.
• Sleep timer.
• Closed Caption Decoder.
• V-CHIP—Lets parents keep their children
from watching inappropriate material on
television.
• Full-function remote control.
• On-screen display.
• S-Video input—Lets you get better picture
detail and clarity.
• Component input.
• Computer (VGA) input.

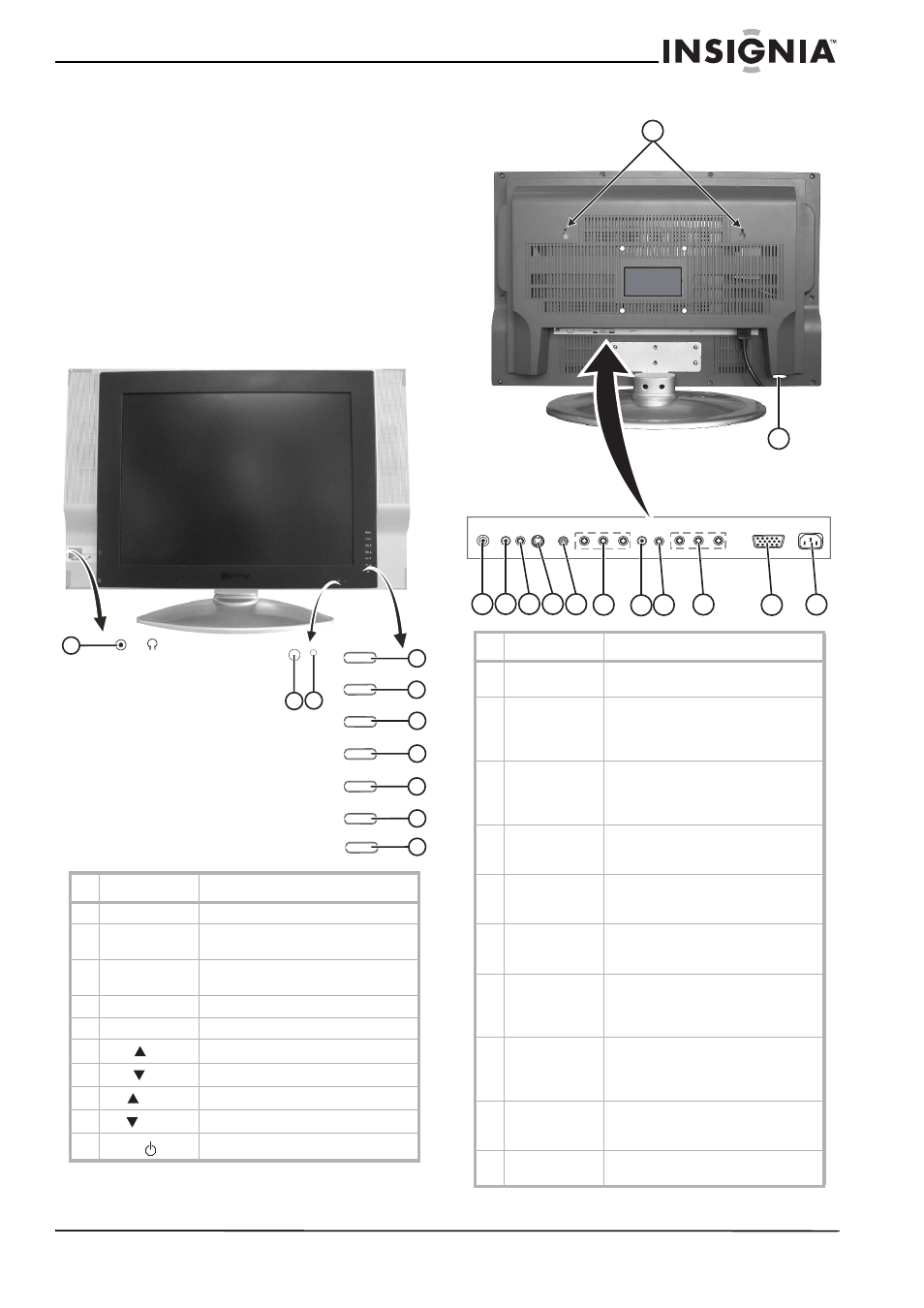

Front
Back
Component Description
1 Headphone jack Plug a headphone into this jack.
2 Remote control
sensor Receives the infrared signal from the
remote control.
3 Power indicator Lights when the television is turned
on.
4 MENU button Press to view the on-screen menu.
5 INPUT button Press to select TV or external input.
6 VOL button Press to adjust the volume up.
7 VOL button Press to adjust the volume down.
8 CH button Press to change the channel up.
9 CH button Press to change the channel down.
10 Power button Press to turn the television on and off.
1
2 3
4
5
6
7
8
9
10
Component Description
1 Coaxial cable
connector Connect your cable TV or external
antenna to this jack.
2 Audio Input left
jack Connect the left composite audio
cable from an audio/video device,
such as a VCR, DVD player, or
camcorder.
3 Audio Input
right jack Connect the right composite audio
cable from an audio/video device,
such as a VCR, DVD player, or
camcorder.
4 S-Video input
jack Connect the S-video cable from an
audio/video device, such as a VCR,
DVD player, or camcorder.
5 AV Video input
jack Connect the composite video cable
from an audio/video device, such as a
VCR, DVD player, or camcorder.
6 Component Y
Pb/Cb Pr/Cr
input jacks Connect a DVD player to this jacks for
interlaced picture viewing.
7 PC audio input
left jack Connect the left component or PC
audio cables from an audio/video
device, such as a VCR, DVD player, or
camcorder.
8 PC audio input
right jack Connect the right component or PC
audio cables from an audio/video
device, such as a VCR, DVD player, or
camcorder.
9 AV output jacks Connect the audio and video cables to
an audio/video device, such as a VCR
or camcorder.
10 Computer VGA
input jack Connect a desktop or notebook
computer to this jack.
1 2 3 4 5 6 7 8 9 10 11
12
13
