Icom VHF Marine Transceiver IC-M88 - Manual (Page 25)

7 - 2
MP681 (L)
W801 (VR)
W802 (VR)
DS681 (L) MP682 (L) EP681 (L)
LOGIC UNIT
VR UNIT
MAIN UNIT
MP53 (C)
MP53 (C)
MP32 (C)
MP33 (C)
MP1 (C)
MP10 (C)
MP8 (C)
MP7 (C)
MP9 (C)
MP71 (C)
MP72 (C)
MP21 (C)
MP41 (M)
MP101 (M)
MP151 (M)
MP42 (C)
MP42 (C)
MP41 (C)
MP44 (C)
J41 (C)
MP45 (C)
MP46 (C)
MP41 (C)
MP43 (C)
MP65 (C)
MP66 (C)
MP55 (C)
(C) : CHASSIS PARTS
(L) : LOGIC UNIT
(M): MAIN UNIT
(VR): VR UNIT
MC461 (L)
MP22(C)
MP23 (C)
MP13 (C)
W41 (C)
1 2 3
1 2
MP11 (C)
MP1 (C)
Glued
Not putting glue to the depths
of a ditch of MP1.
Painting from
the lower part. Painting with the
upper part from
a crack.

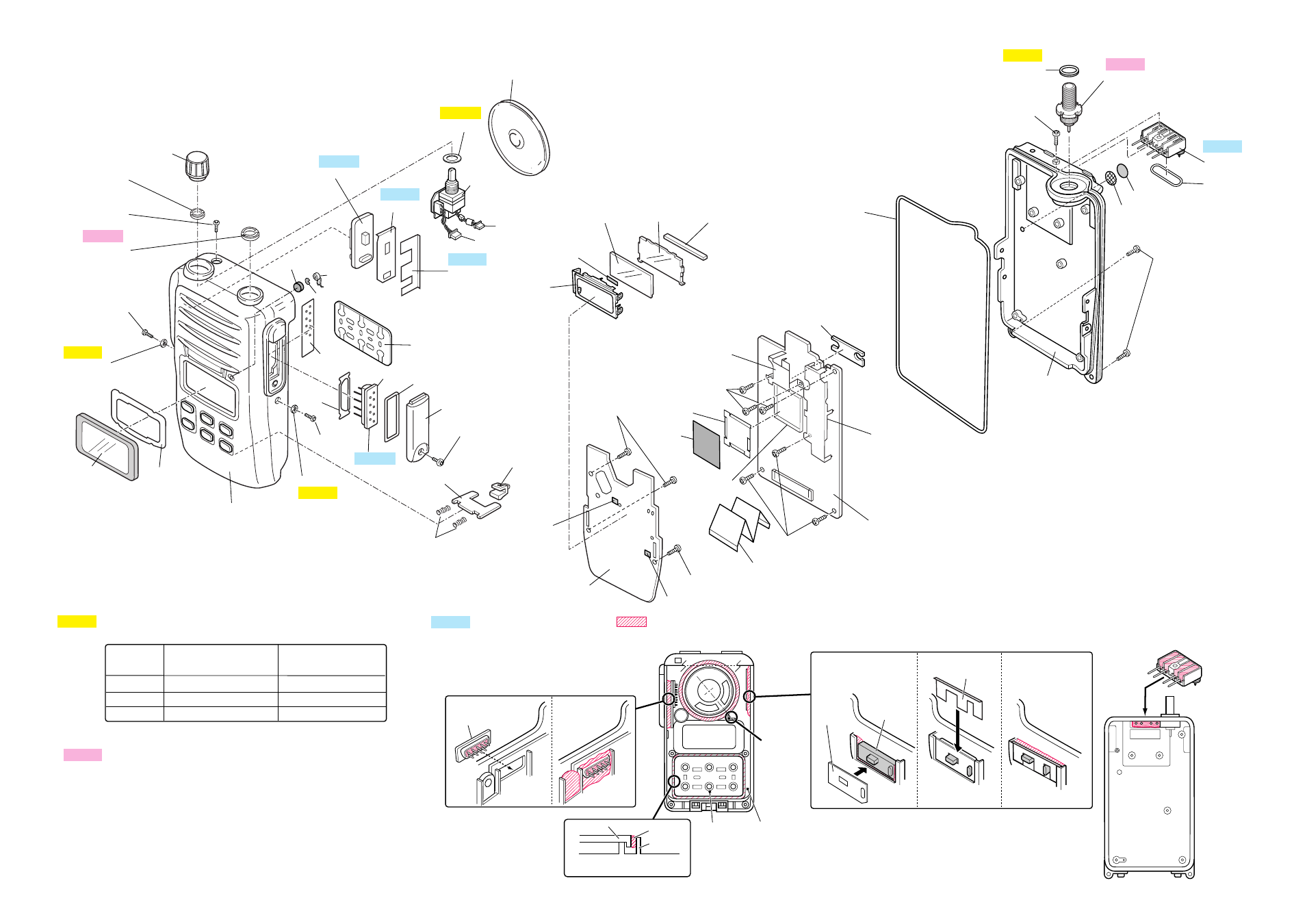

The glue must be applied to the areas when the front panel is replaced with new one, to ensure water tightness. NOTE 1 : Once the following parts are removed, an O ring or sealing washer
must be replaced with new one before reattachement.
REF. NO.
MP5 (C)
MP4 (C)
MP6 (C) MP7 (C)
MP45 (C)
MP53 (C)
O ring
Sealing washer (W)
O ring (AB)
Antenna connector (J41)
MP52 (C) Screw
MP32 (C) R801
Mother parts
Daughter parts for
relayted replacement
Manufacture : Cemedine Co.
Type
: Super-X
MP51 (C)
MP54 (C)
MP31 (C)
MP47 (C)
MP42 (M)
MP47 (C)
MP35 (C)
MP684 (L)
MP685 (L)
MP111 (M)
MP35 (C)
Apply a screw lock in the conclusion with J41 (C) and MP51 (C).
Reference No. : 89500001350
Reference Name : Screw lock 1401B
MP5 (C)
MP6 (C)
MP4 (C)
MP12 (C)
A basis to
install a
speaker
MP52 (C)
MP52 (C)
NOTE 1
NOTE 1
NOTE 3
NOTE 2
NOTE 3
NOTE3
NOTE3
NOTE 3
NOTE 2
NOTE 2
NOTE3
NOTE 1
NOTE 1
MP683 (L)
R801 (VR)
SP1 (C)
MP11 (C)
MP461 (L)
MP462 (L)
MP11 (C) MP1 (C)
MP43 (M)
