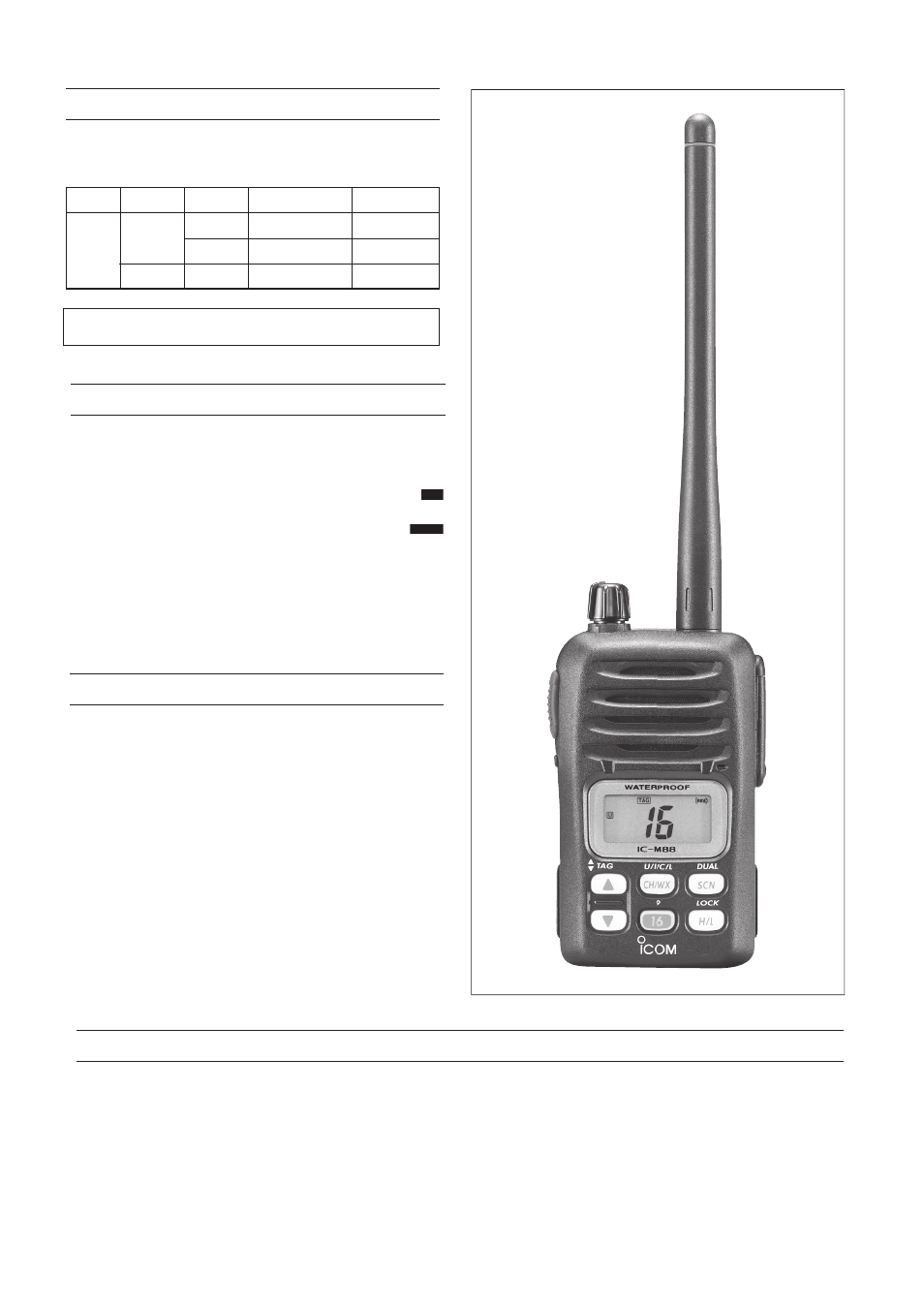

INTRODUCTION
This service manual describes the latest service information for
the IC-M88 VHF MARINE TRANSCEIVE R at the time of
publication.
To upgrade quality, all electrical or mechanical parts and inter-
nal circuits are subject to change without notice or obligation.
DANGER
NEVER connect the transceiver to an AC outlet or a DC
power supply that uses more than 8.3 V. This will ruin the
transceiver.
DO NOT expose the transceiver to rain, snow or
liquids.
DO NOT reverse the polarities of the power supply
connecting the transceiver.
DO NOT apply an RF signal of more than 20 dBm (100
mW) to the antenna connector . This could damage the
transceiverís front end.
ORDERING PARTS
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit order numbers
2. Component part number and name
3. Equipment model name and unit name
4. Quantity required
1110002750 S.IC TA7S01F IC-M88 MAIN UNIT 1 piece
8210019100 2600 Front panel IC-M88 CHASSIS 5 pieces
Addresses are provided on the inside back cover for your
convenience.
REPAIR NOTES
1. Make sure the problem is internal before disassembling the transceiver.
2. DO NOT open the transceiver until the transceiver is disconnected from its power source.
3. DO NOT force any of the variable components. Turn them slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An insulated tuning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the transceiver is defective.
6. DO NOT transmit power into a signal generator or a sweep generator.
7. ALWAYS connect a 40 dB or 50 dB attenuator between the transceiver and a deviation meter or spectrum analyzer when
using such test equipment.
8. READ the instructions of test equipment thoroughly before connecting equipment to the transceiver.
Model
IC-M88
Version
U.S.A.
S.E. Asia
Symbol FM I / S Battery pack
USA NO
YES
NO BP-227
BP-227FM
BP-227
USA-1
SEA
