STEP 2 (See Diagram 2)
A.) Attach Main Seat Support (#4) to the Cross Brace (#3). Secure it with a 4 3/8” x 1 ¾”
Bracket (#19), two M10 x 2 ½” Carriage Bolts (#42), two
∅
¾” Washers (#39), and two
M10 Aircraft Nuts (#50).
B.) Attach the Leg Developer Holder (#5) to the Main Seat Support (#4). Secure it with two
M10 x 2 ½” Carriage Bolts (#42),
∅
¾” Washers (#39), and M10 Aircraft Nuts (#50).
C.) Insert a M12 x 5 ½” Hex Bolt (#45) through the hole on the Right Butterfly (#10). Secure
the Bolt with a M12 Regular Nut (#41). Insert the Bolt through the hole on the Right
Upright Beam (#2) and secure with a M12 Lock Knob (#27).
D.) Insert a Butterfly Handle (#15) through the hole on the Right Butterfly from the rear.
Push a
∅
2 ¾” Foam Roll (#22) onto the Handle. Attach a Spring Clip (#24) to the
weight post on the Right Butterfly.
E.) Repeat the Procedures C, D, and E above to install the Left Butterfly (#9).

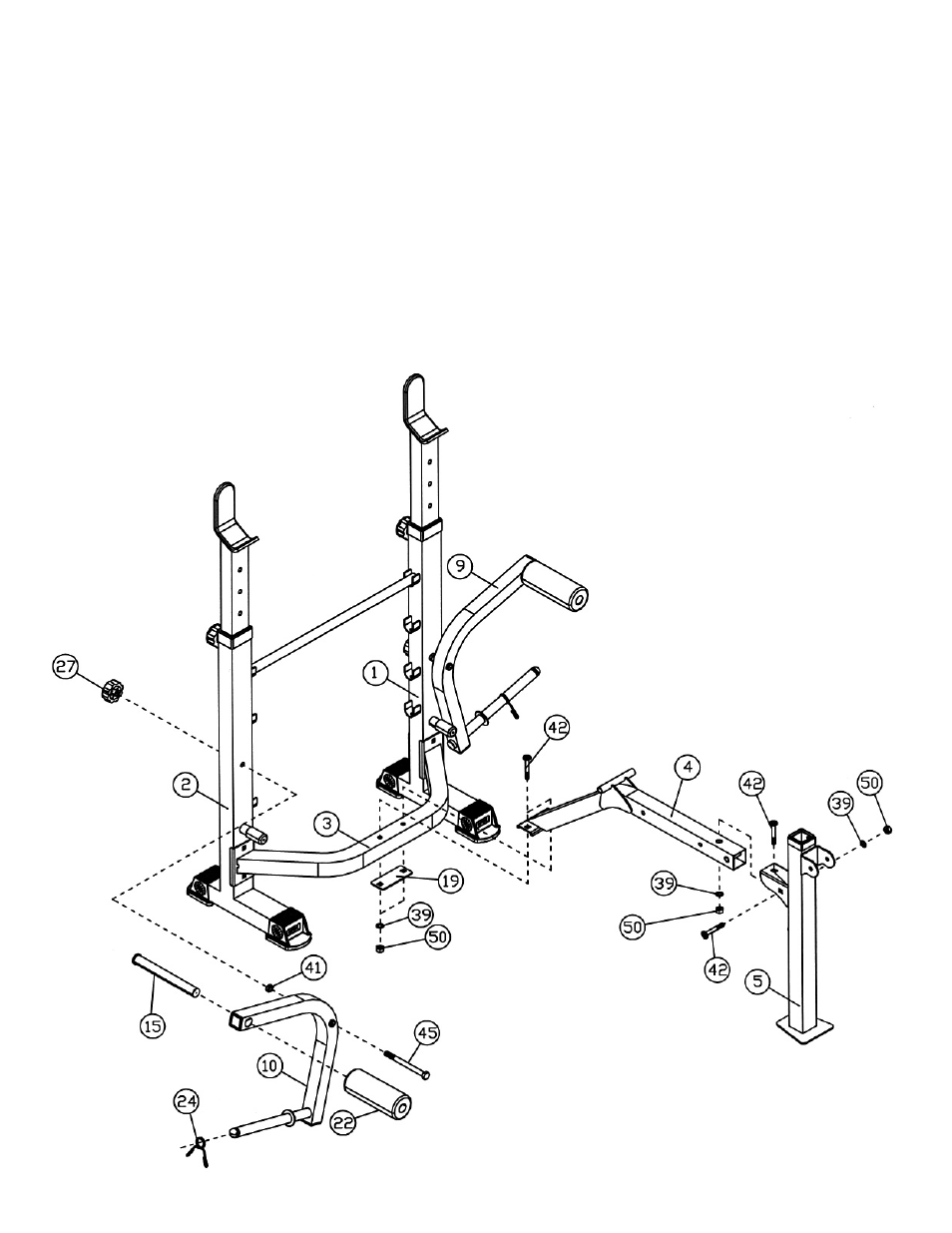

DIAGRAM 2
