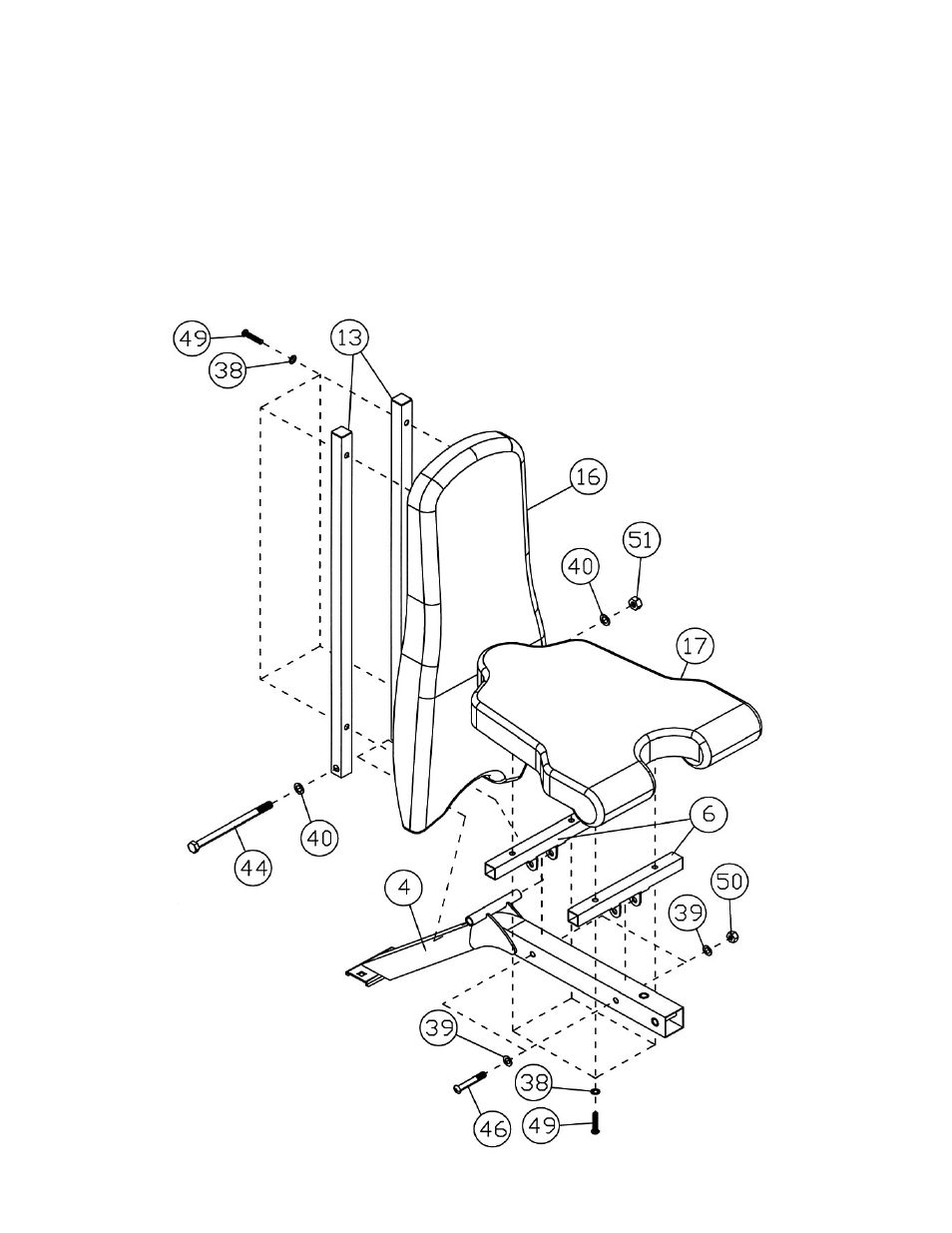

STEP 4 (See Diagram 4)
A.) Attach the two side-holes on the two Backrest Supports (#13) to the pivot on the Main

Seat Support (#4). Align the holes and secure it with one M12 x 7 ¼” Hex Bolt (#44),
two

1” Washers (#40), and one M12 Aircraft Nut (#51).

B.) Place the Backrest Board (#16) onto the Backrest Supports. Secure it with four M8 x 1

5/8” Allen Bolts (#49) and

5/8” Washers (#38).

C.) Attach the Seat (#17) to the two Seat Brackets (#6) and secure with four M8 x 1 5/8”

Allen Bolts (#49) and

5/8” Washers (#38).

D.) Place the Seat Brackets onto the Main Seat Support (#4). Align the holes and secure

each Seat Bracket to the Main Seat Support with one M10 x 2 ½” Allen Bolt (#46), two
Ø ¾” Washers (#39), and one M10 Aircraft Nut (#50).
