ASSEMBLY INSTRUCTION

NOTE: It is strongly recommended that two or more people assemble this machine to
avoid possible injury.

STEP 1 (See Diagram1)

A.) Do not tighten Nuts and Bolts until instructed to do so.
B.) Attach the Front Stabilizer (#2) to the Main Frame (#1). Secure it with two M8 x 2 ½”

Carriage Bolts (#15), two

7/8” Curved Washers (#16), and two M8 Acorn Nuts (#17).

C.) Attach the Rear Stabilizer (#3) to the Main Frame. Secure it with two M8 x 5/8” Allen Bolts

(#18) and two Ø 1” Flat Washers (#19) from the bottom. Secure it with two M8 x 5/8” Allen
Bolts (#18) and two Ø 5/8” Washers (#12) from the sides.

D.) Securely tighten all Nuts and Bolts.

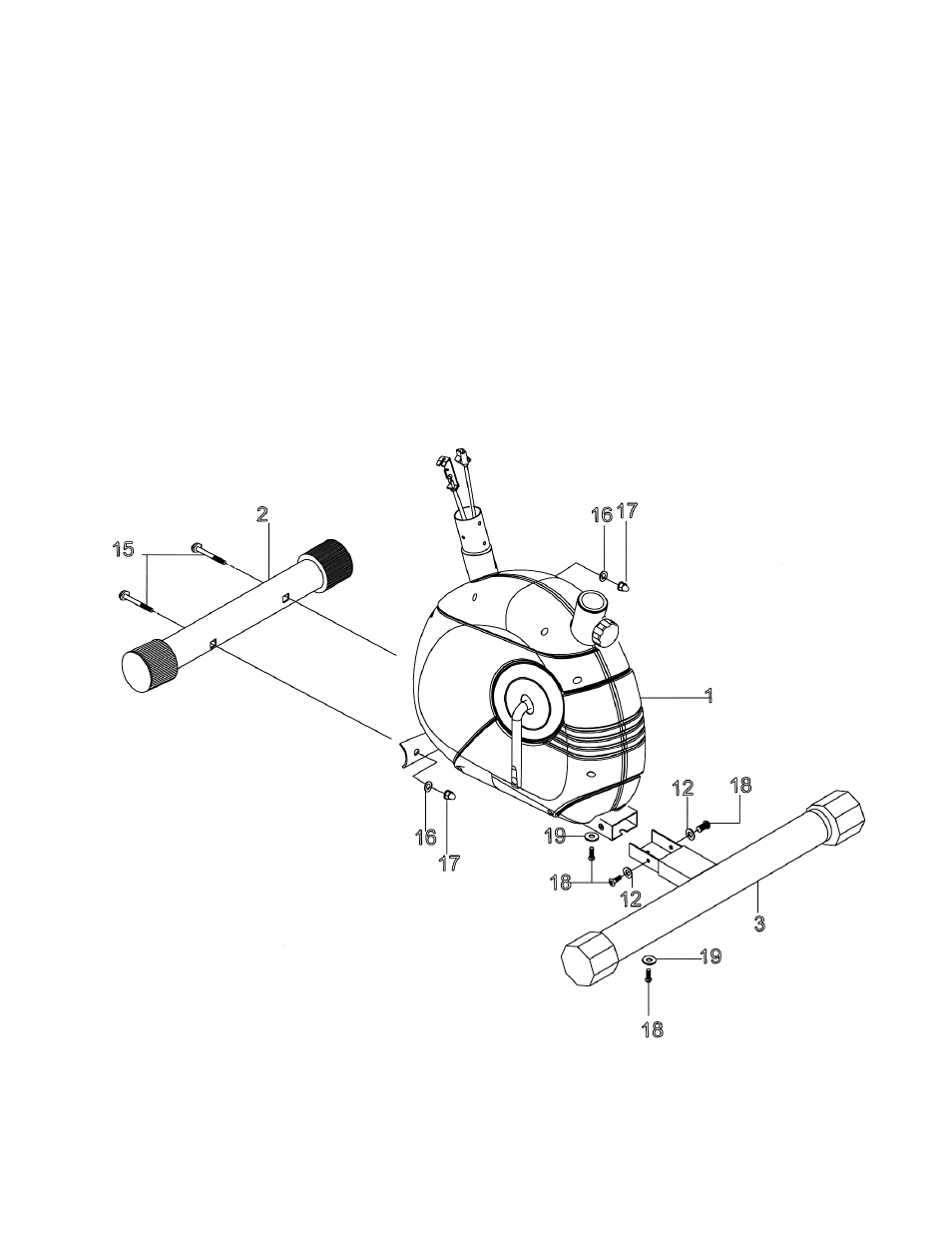

DIAGRAM 1
