Page 10

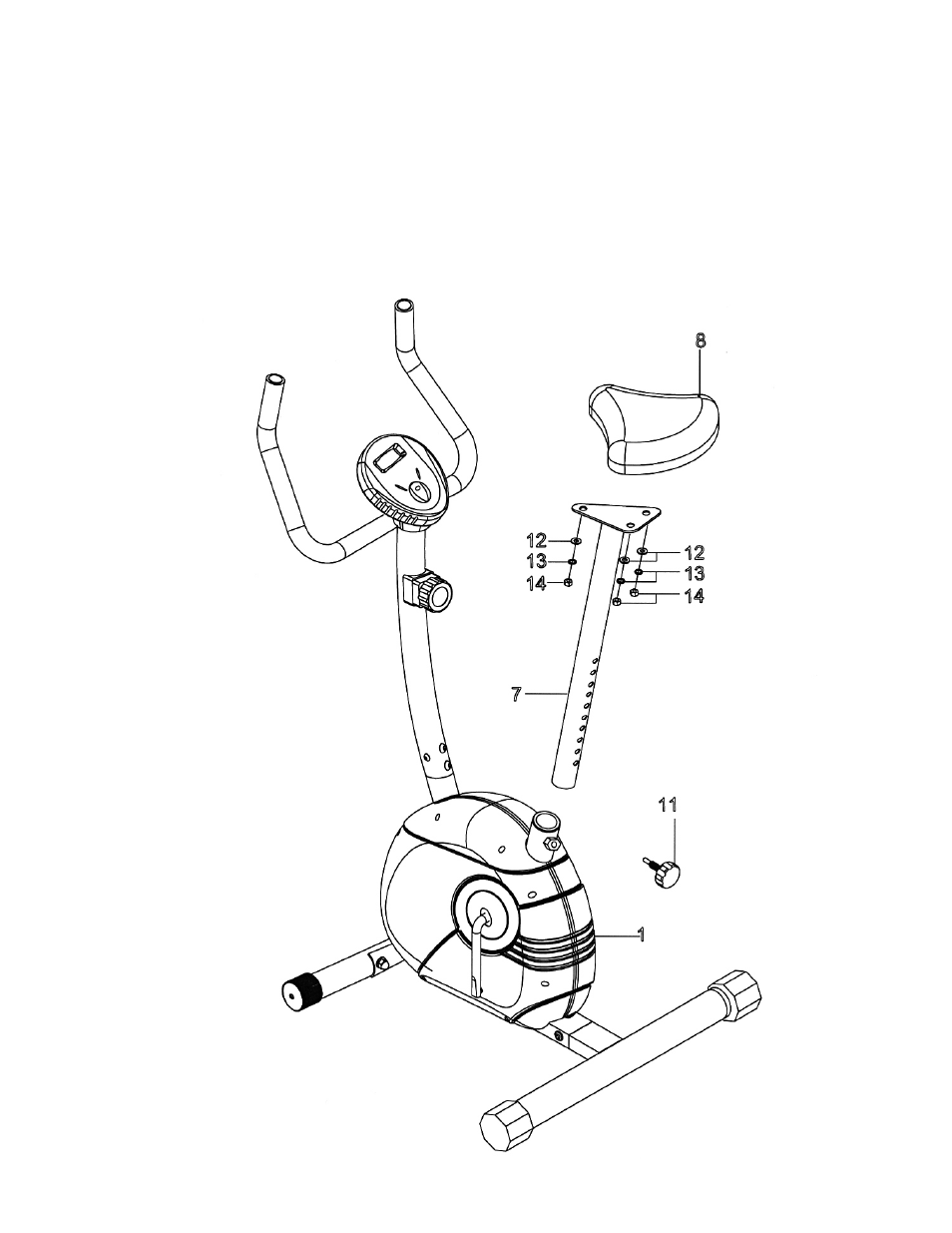

STEP 4 (See Diagram 4)

A.) Remove the three Ø 5/8” Washers (#12), three Ø 3/8” Lock Washers (#13),

and three M8 Aircraft Nuts (#14) from the Seat (#8).

B.) Attach the Seat to the Seat Post (#7). Secure it with three Ø 5/8” Washers

(#12), three Ø 3/8” Lock Washers (#13), and three M8 Aircraft Nuts (#14).

C.) Insert the Seat Post into the opening on Main Frame (#1). Thread the Lock

Knob (#11) through the hole on Seat Post to securely lock it at desired
height.

DIAGRAM 4
