1-3 Item Checklist
5 Intel G41 Platform Processor Chipset based motherboard
5
Cable for IDE
5
CD for motherboard utilities
5
Cable for Serial ATA Port
5 Intel G41 Platform Processor Chipset motherboard User’s Manual
5
Back panel

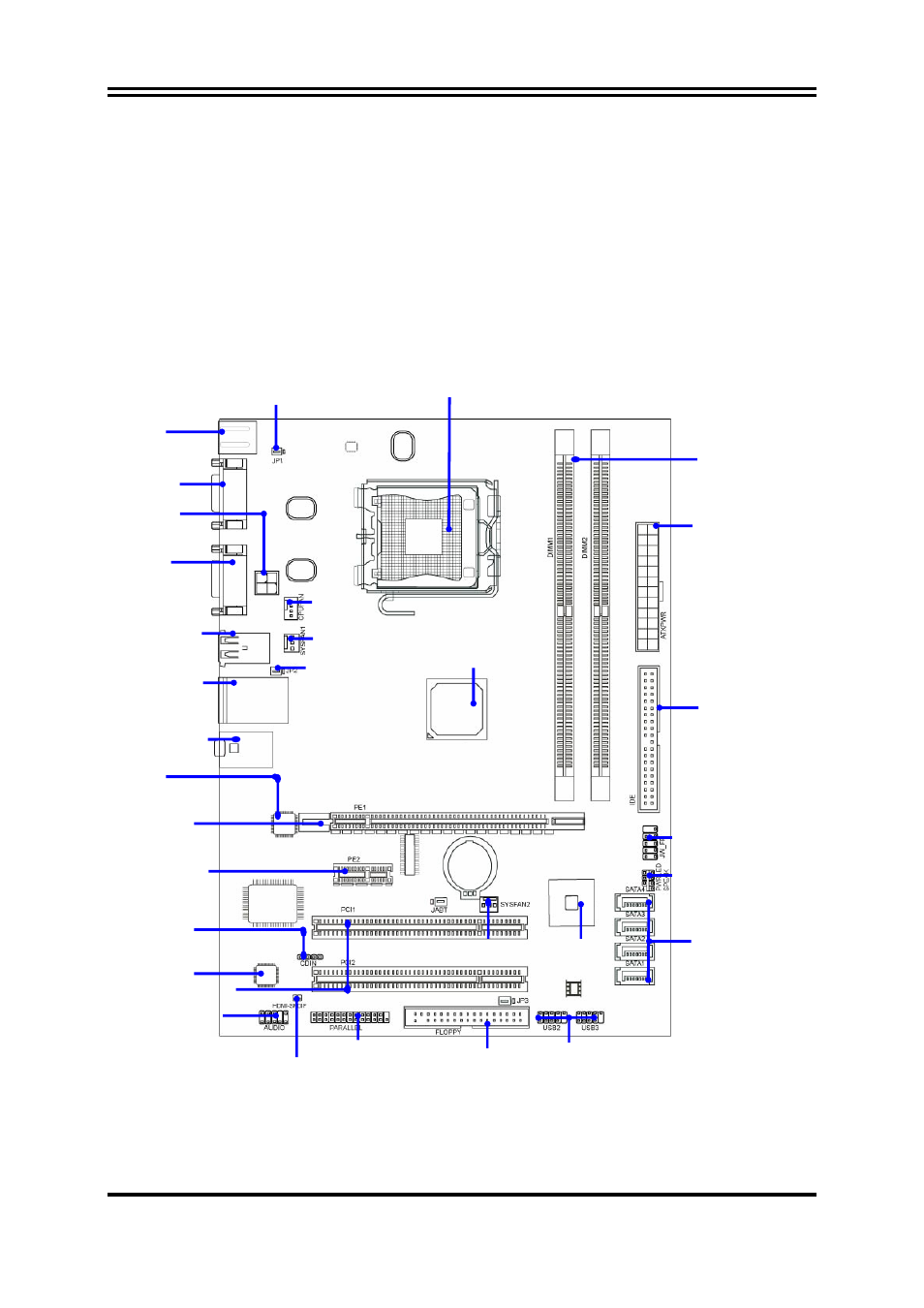

1-4 Layout Diagram & Jumper Setting
ATX 12V Power
Connector
Front Panel
Connector
ATX Power
Connector
CPU Socket mPGA775
Intel 82801GB
ICH Chipset
Power Led &
Speaker Header
DDR2
DIMMx2
6-CH ALC662 HD
Audio Codec
32-bit PCI Slot
COM
KB／MS Power ON
Jumper (JP1)
USB Port
6-CH Audio Connector
SYSFAN1
Front Panel Audio
PCI –E Megabit LAN
Controller
IDE Connector
Serial-ATA2
Connector
(SATA1, 2, 3, 4)
CPU FAN
PCI Express x1
VGA
RJ45 Over
USB Port
PCI Express x16
CD Audio In
Floppy Connector
Intel G41Express
Chipset
SYS FAN2
Parallel Connector
USB Power ON Jumper
(JP2)
PS2 KB/Mouse
Port
USB Connector
HDMI-SPDIF Connector
