(7) Power switch: PWR BTN
This 2-pin connector connects to the case-mounted power switch to power ON/OFF the
system.
(8) FAN Power Headers: SYSFAN1, SYSFAN2 (3-pin), CPUFAN (4-pin)
These connectors support cooling fans of 350mA (4.2 Watts) or less, depending on the fan
manufacturer, the wire and plug may be different. The red wire should be positive, while the
black should be ground. Connect the fan’s plug to the board taking into consideration the
polarity of connector.
(9) CD Audio-In Headers (4-pin): CDIN
CDIN are the connectors for CD-Audio Input signal. Please connect it to CD-ROM
CD-Audio output connector.

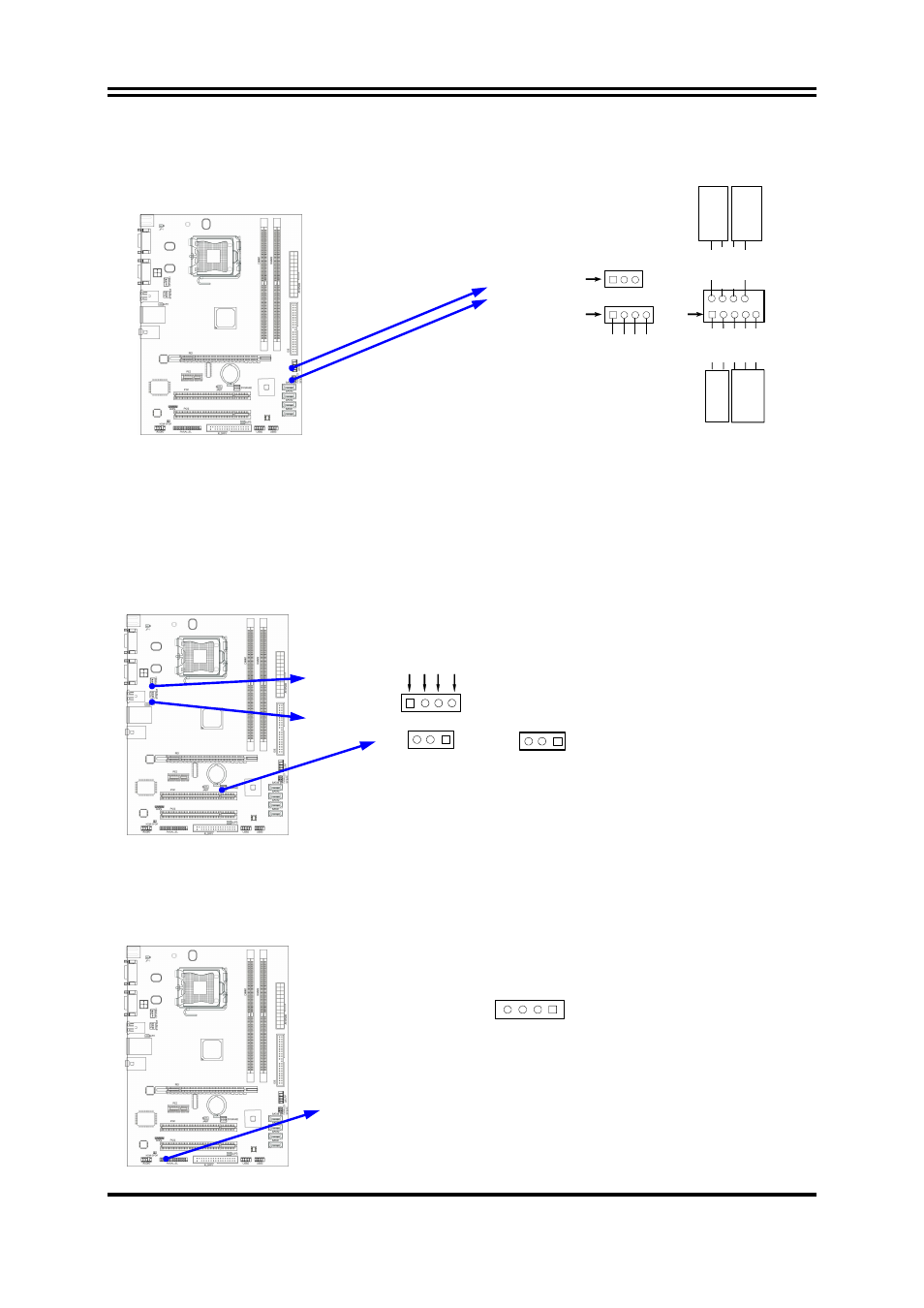

System Case Connections
HD
L
E
D
RE
S
E
T
V
CC5
G
ND
V
CC5
P
W
R L
E
D
PW
R
B
T
N
P
W
RBT
N
PW
R
L
ED
HDDLE RS
T
S
W
NC
G
ND
JW FP
Pin 1
SPEAK
S
P
KR
GN
D
NC
V
CC5
Pin 1
PWRLED
Pin 1
CD Audio-In Headers
CDIN
4 1
FAN Power Headers
CPUFAN
1 4
G
ND
+12V CP
UF
AN IN
CP
UF
AN OUT
SYSFAN1
1 3
SYSFAN2
1 3
