FS-979 User’s Manual Hardware Setup
USB2.0 Interface
26
2.12
The board supports 4 USB2.0 ports based on Intel® ICH6R, which can support up to
480Mbps of transfer rate, and offer 500mA for maximum rating.
The Intel® ICH6R contains and Enhanced Host Controller Interface (EHCI) and four
Universal Host Controller Interfaces (UHCI), it can determine whether your connected
device is for USB1.1 or USB2.0, and change the transfer rate automatically.

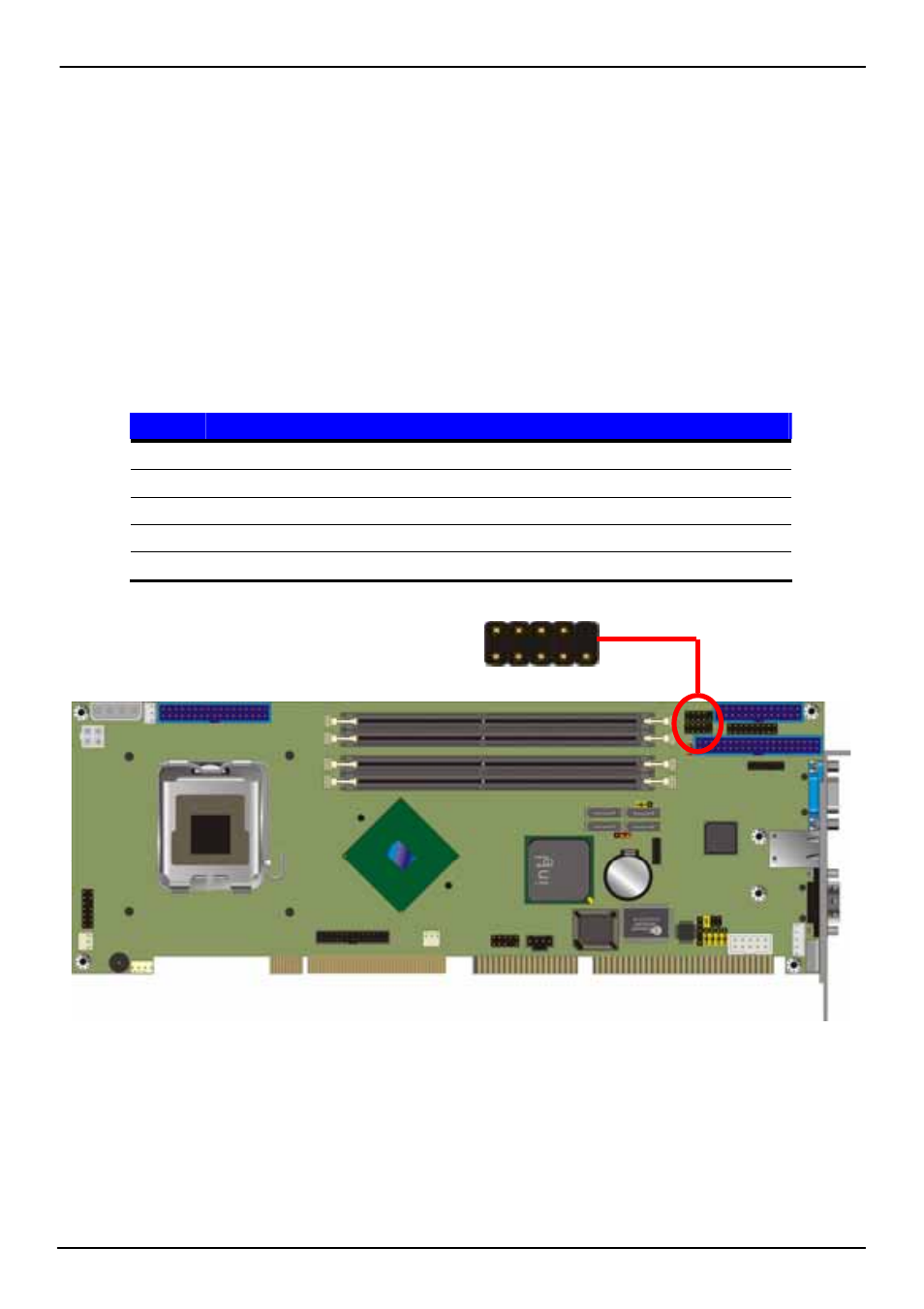

Connector: CN_USB0/1
Type: 10-pin (5 x 2) header for USB1/2 & USB3/4 Ports
Pin
Description
Pin
Description
1 VCC
2 VCC
3 Data0-
4 Data1-
5 Data0+
6 Data1+
7 Ground
8 Ground
9 Ground
10
N/C
10
CN_USB0/1
1
