FS-979 User’s Manual Hardware Setup
Compact Flash Interface
25
2.11

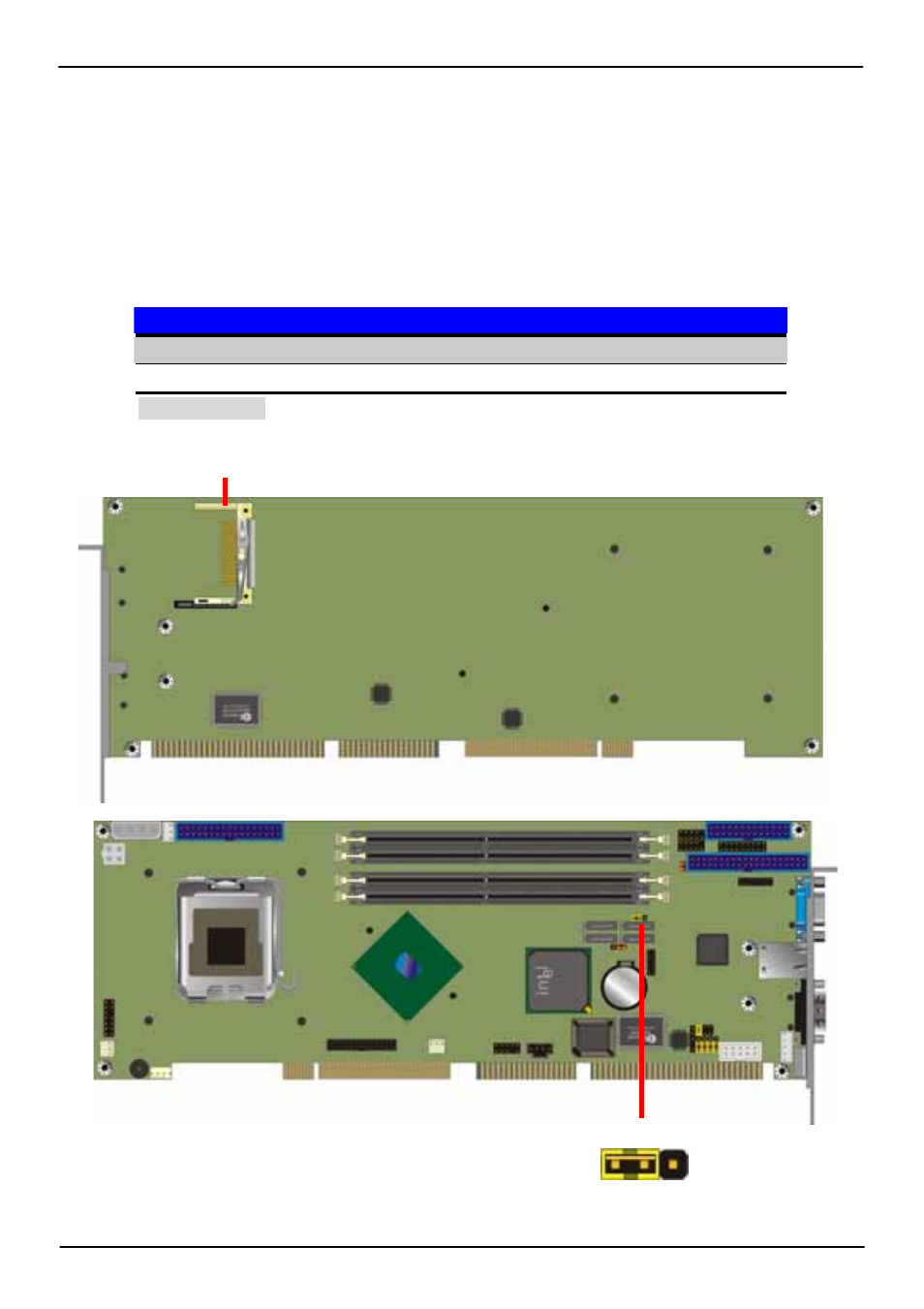

The board has one Compact Flash Type-II socket, users can apply embedded system on
CF card or Micro drives, the jumper JCFSEL can let you select operating mode under
master or slave. The Compact Flash socket supports storage type only.
Jumper: JCFSEL
Type: onboard 3-pin header
JCFSEL
Mode
1-2
Master
2-3 Slave
Default setting
CF
JCFSEL
1 3
