FS-979 User’s Manual Hardware Setup
Display Interface 23
2.10
FS-979 integrates with Intel® 915G GMCH for Intel Graphic Media Accelerator (GMA) 900
technology. It supports Intel® DVMT (Dynamic Video Memory Technology) 3.0 for up to
224MB frame buffer size shared with system memory. With a 333MHz core and DirectX 9
and OpenGL acceleration, FS-979 provides the powerful onboard graphics interface without
additional graphic card. (More information please visit Intel’s website)
The board also comes with a DVI interface with CHRONTEL CH7307B-DE for digital video
interface.
When you use the FS-979VDG3 version, please connect the VGA cable in the cable kit with
CN_VGA for display monitors.

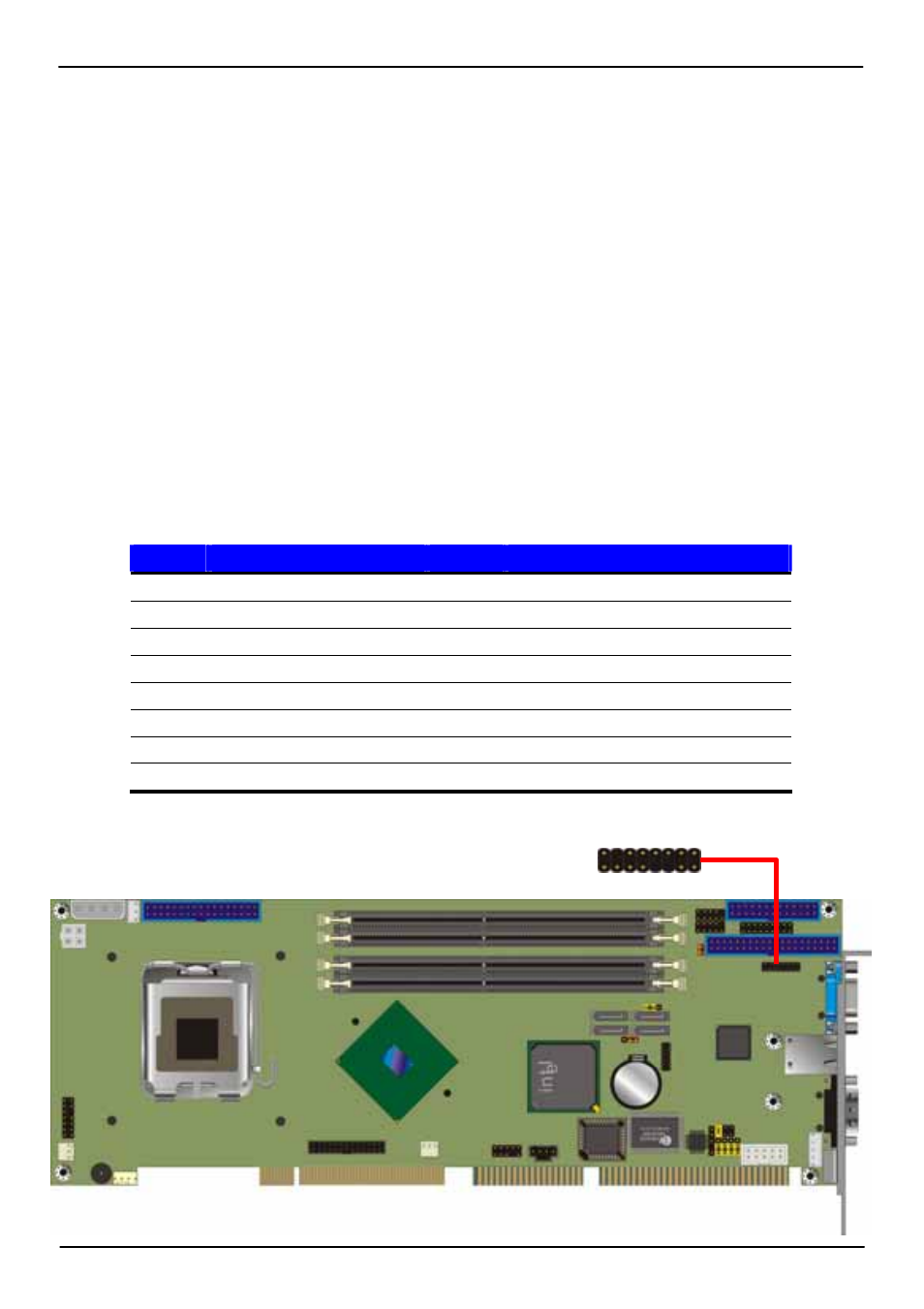

Connector: CN_VGA
Type: 16-pin (2 x 8) pin header (pitch = 2.0mm)
Pin Description Pin Description
1 Red 9 Green
2 Blue 10 N/C
3 Ground 11 Ground
4 Ground 12 Ground
5 N/C 13 Ground
6 N/C 14 Data
7 HSYNC 15 VSYNC
8 Clock 16 N/C
16
CN_VGA
1
