Installation

Page 3-15

3-6 T

Ther

her

hermo Stic

mo Stic

mo Stick Function (Optional)

k Function (Optional)

This mainboard is equipped with a digital thermometer capability to monitor any
temperature. This is useful for measuring heat on peripherals such as VGA cards,
hard disk drives, DIMMs or even on-board components such as chipset,
MOSFETS, etc.

Thermo Stick consists of:

1) THM_ST header located on the mainboard
2) Thermostick sensor cable with heat-tolerant adhesive

sticker optionally bundled in the mainboard package

3) Thunder Probe software utility

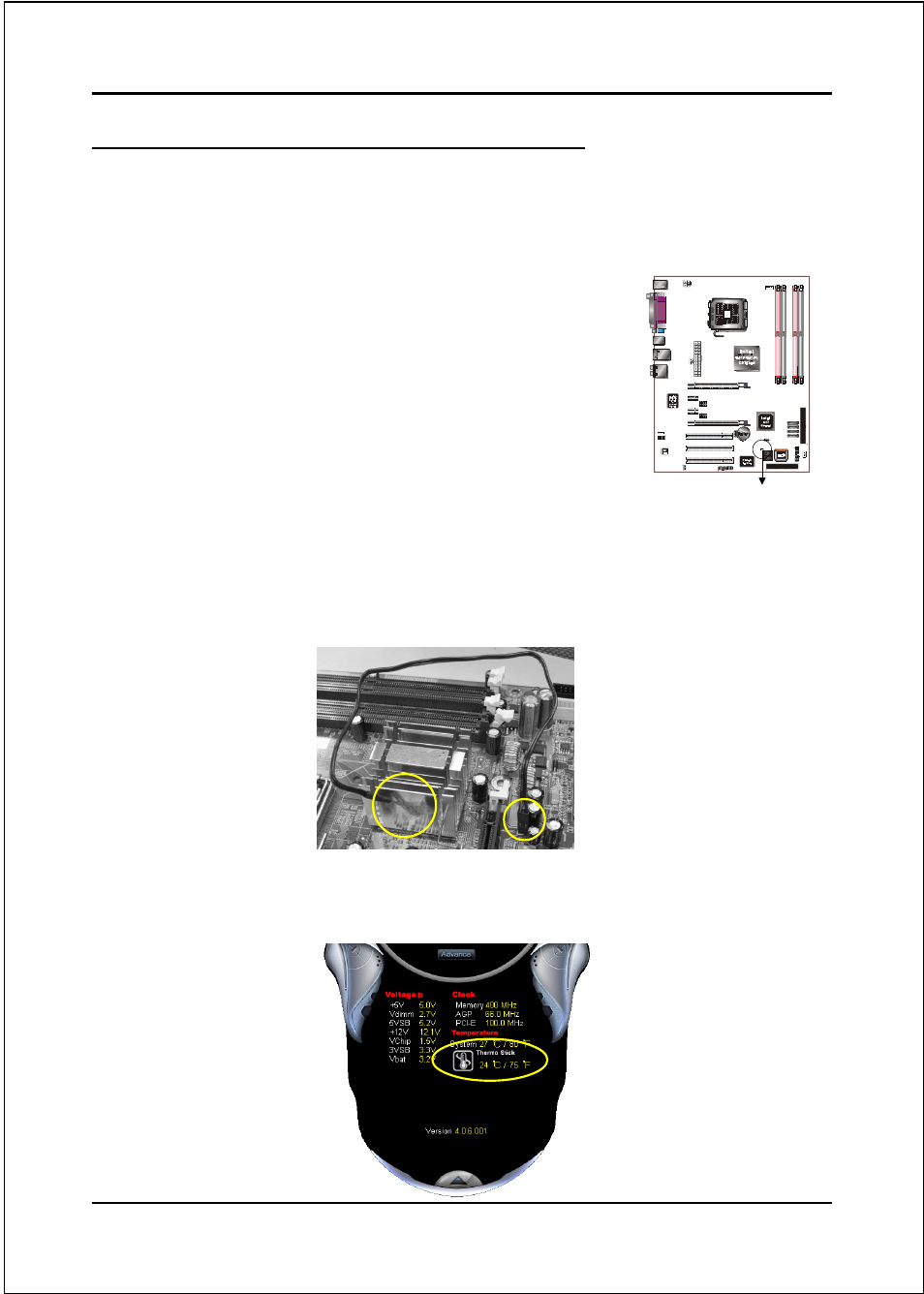

To setup Thermo Stick,

1.Insert the sensor cable to THM_ST header on the mainboard
2.Using the adhesive sticker, affix the sensor head of the cable to your desired

point of measure. e.g. the chipset as in the picture below. Trim the adhesive
sticker to a suitable size so that it will not affect the heat dissipation of any
heatsink.

3.Ensure the cable is neatly tucked away from fans or other moving parts.
4.Install and run the Thunder Probe software. The temperature will be shown as

below.

THM-ST
