Installation
Page 3-10
3-5 Device Connectors

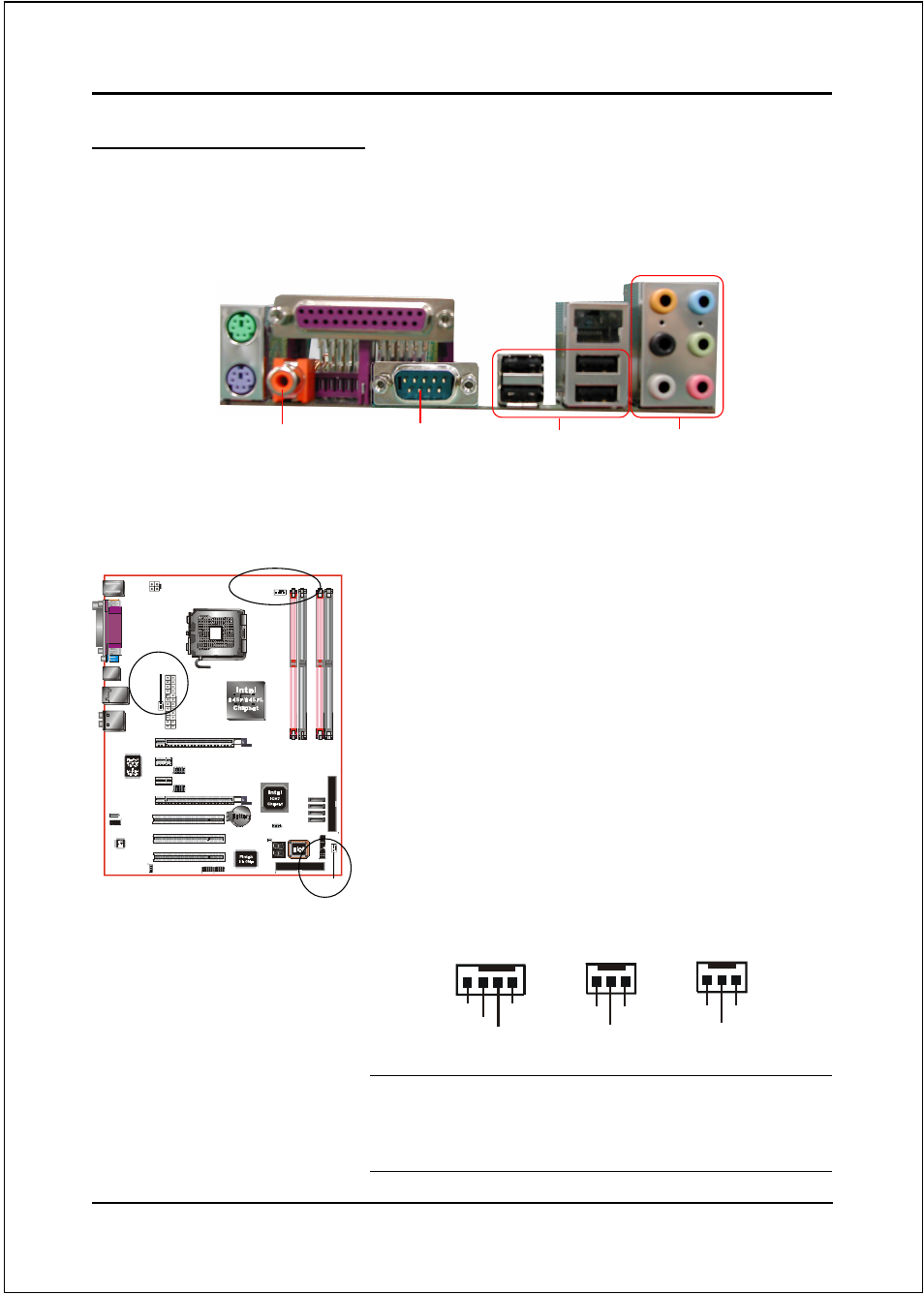

The I/O back panel for this mainboard is shown below. When installing the
mainboard into the computer case, use the bundled I/O shield to protect this back
panel.
USB2.0 x 4 ports
Parallel Port
PS/2
Mouse
PS/2
Keyboard
RJ45
LAN
COM
S/PDIF-out
Coaxial Jack
7.1 Audio Channel
JCPU_FAN / JPWR_FAN / JSYS_FAN:
CPU/Power/Chassis Fan Power Connectors
JCPU_FAN: The CPU must be kept cool by using a
heatsink with fan assembly.
JPWR_FAN: If you are installing an additional fan
in the unit, connect to this fan
connector.
JSYS_FAN: The chassis fan will provide adequate
airflow throughout the chassis to
prevent overheating the CPU.
JCPU_FAN
JSYS_FAN
JCPU_FAN
JSYS_FAN
JPWR_FAN
JPWR_FAN
Ground
+12V
Sense
This mainboard is equipped with intelligent fan speed
control. Refer to the PC Health Status submenu of
the BIOS.
Ground
+12V
Sense
Ground
+12V
Sense
Control
