Invacare Arrow - Manual (Page 115)

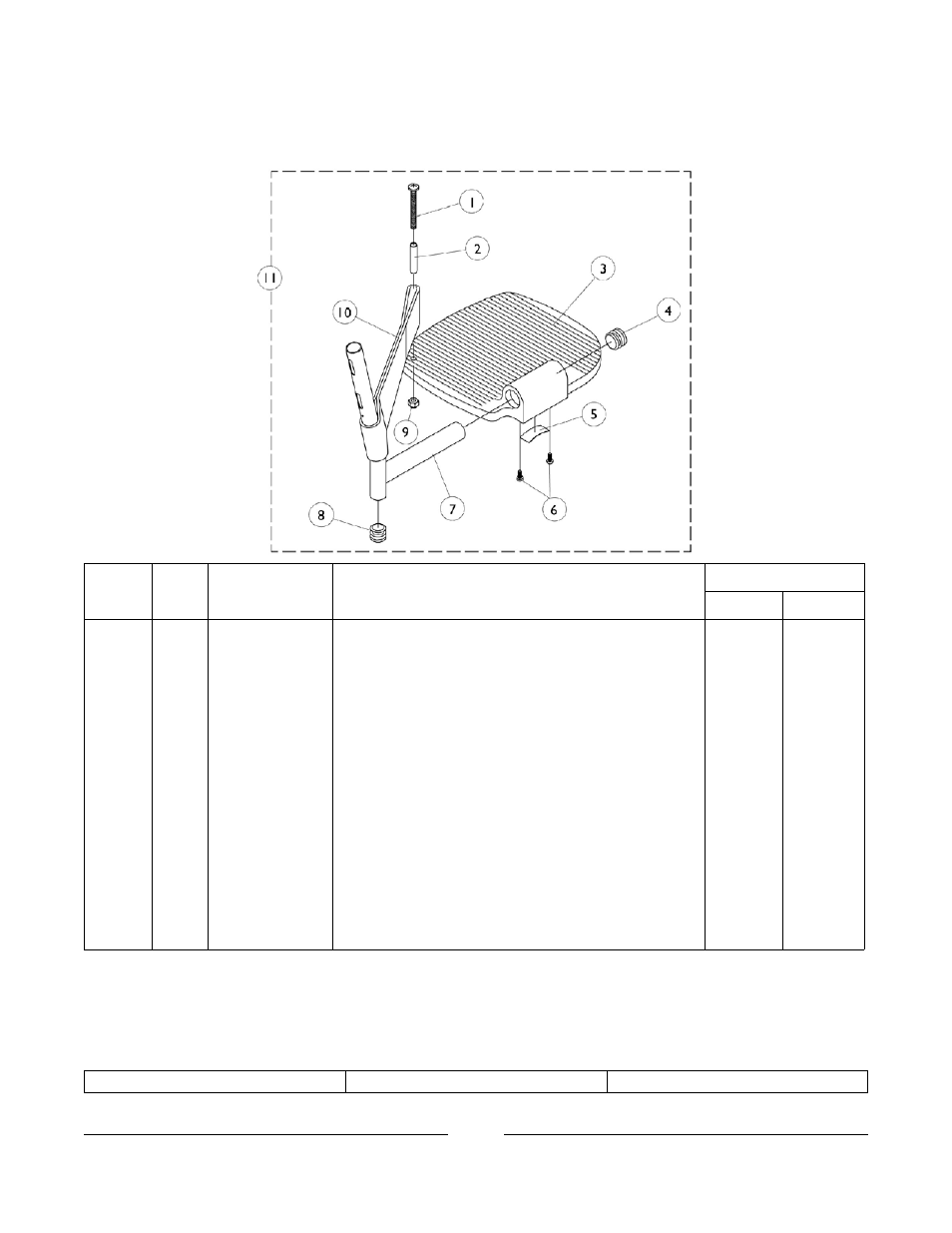

Extra Large Footplate, 1350
Item
Number Part Number Description Note
Quantity Per
Package Assembly
1028479 Screw, Phillips Pan Head (1/4-20 x 2-1/2") 1 1 1
1006477 Spacer (1/4 x 11/32 x 1-3/4") 1 1 2
44200X025 Footplate, Aluminum, Extra Large, Black - Right (8"
W x 8-1/2" L) 1 1 3
44200X026 Footplate, Aluminum, Extra Large, Black - Left (8" W
x 8-1/2" L) 1 1 3
1027095 Plug Button, Black (7/8") 1 1 4
1036123 Spring, Leaf 1 1 5
1025729 Screw, Phillips Pan Head Tap (#8-32 x 3/8") 1 2 6
1048834 Pivot/Slide Tube w/ Plug Button, Black 1 1 7
1098906 Pivot/Slide Tube w/ Plug Button, Black (2" Longer) 1 1 7
1086482 Pivot/Slide Tube w/ Plug Button, Black (4" Longer) 1 1 7
1027097 Plug Button, Black (3/4") 1 1 8
7930323 Package, Locknut (1/4-20) 25 1 9
1017621 Heel Loop - Right/Left 1 1 10
See Chart #11 Pivot/ Slide Tube and Footplate 1 1 11
Item #11 Pivot/Slide Tube w/ 1350 Extra Large Footplate"
Right Left
