GA-8IPE1000 Series Motherboard - 68 -
English

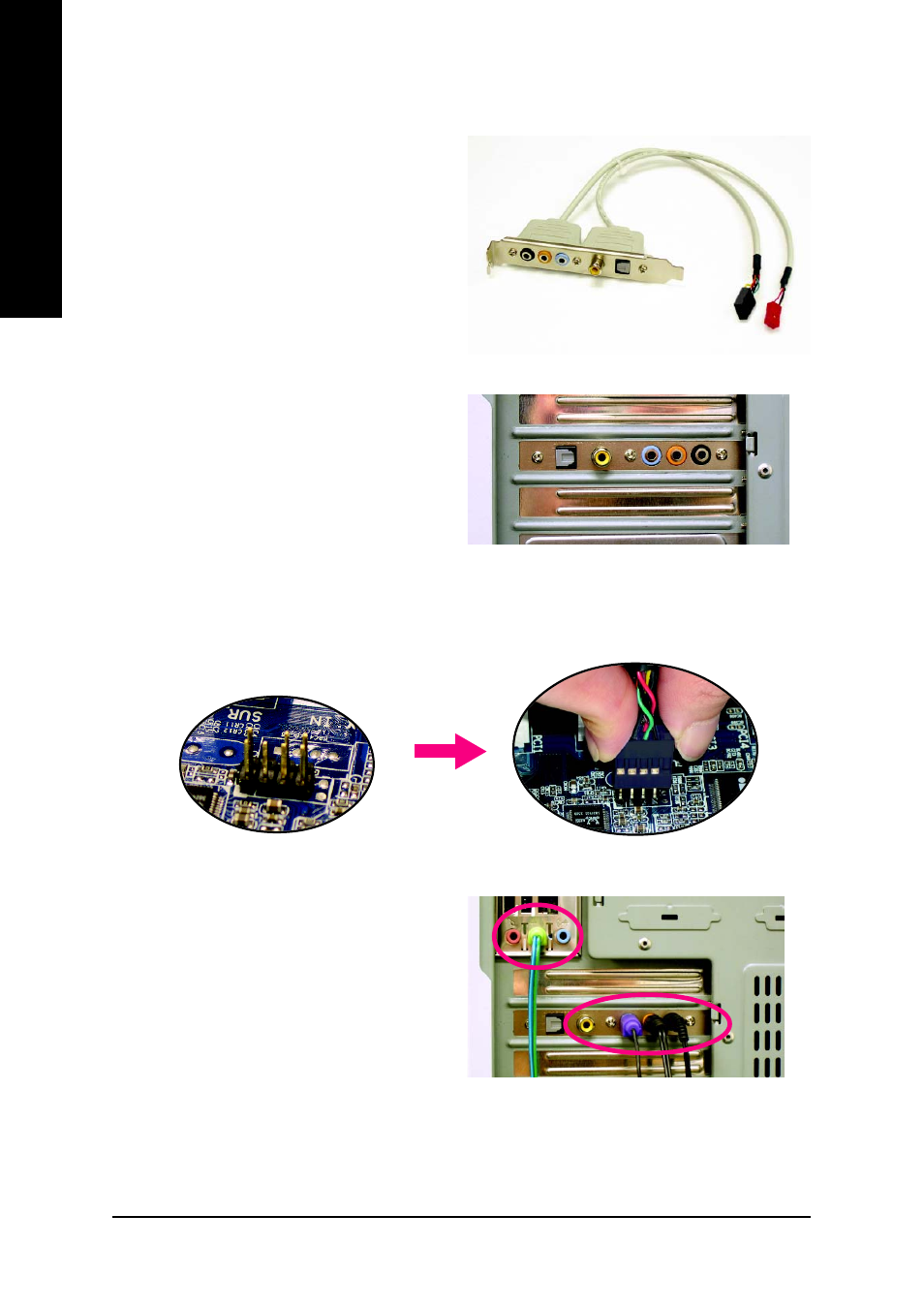

8 Channel Audio Setup (using Audio Combo Kit, optional device) :
Audio Combo Kit offers SPDIF output, an optical and
coaxial cable and a Surround-Kit. The Surround-Kit
offers R/L surround, center/subwoofer output and rear
surround.
STEP 1:
Secure the Audio Combo Kit at the panel on the back
of the case.
STEP 2:
Connect the Surround-Kit to the SUR_CEN connector located on the motherboard.
STEP 3:
There are two methods of 8 channel audio
configuration:
Method 1:
Connect the front channels to the "Line Out" port
located on the audio panel and the rear channels to
the Surround-Kit "REAR R/L" port. Connect the
center/subwoofer channels to the Surround-Kit "SUB
CENTER" and the R/L channels to the Surround-Kit
"SUR BACK" port.
