GA-8IPE1000 Series Motherboard - 26 -
English

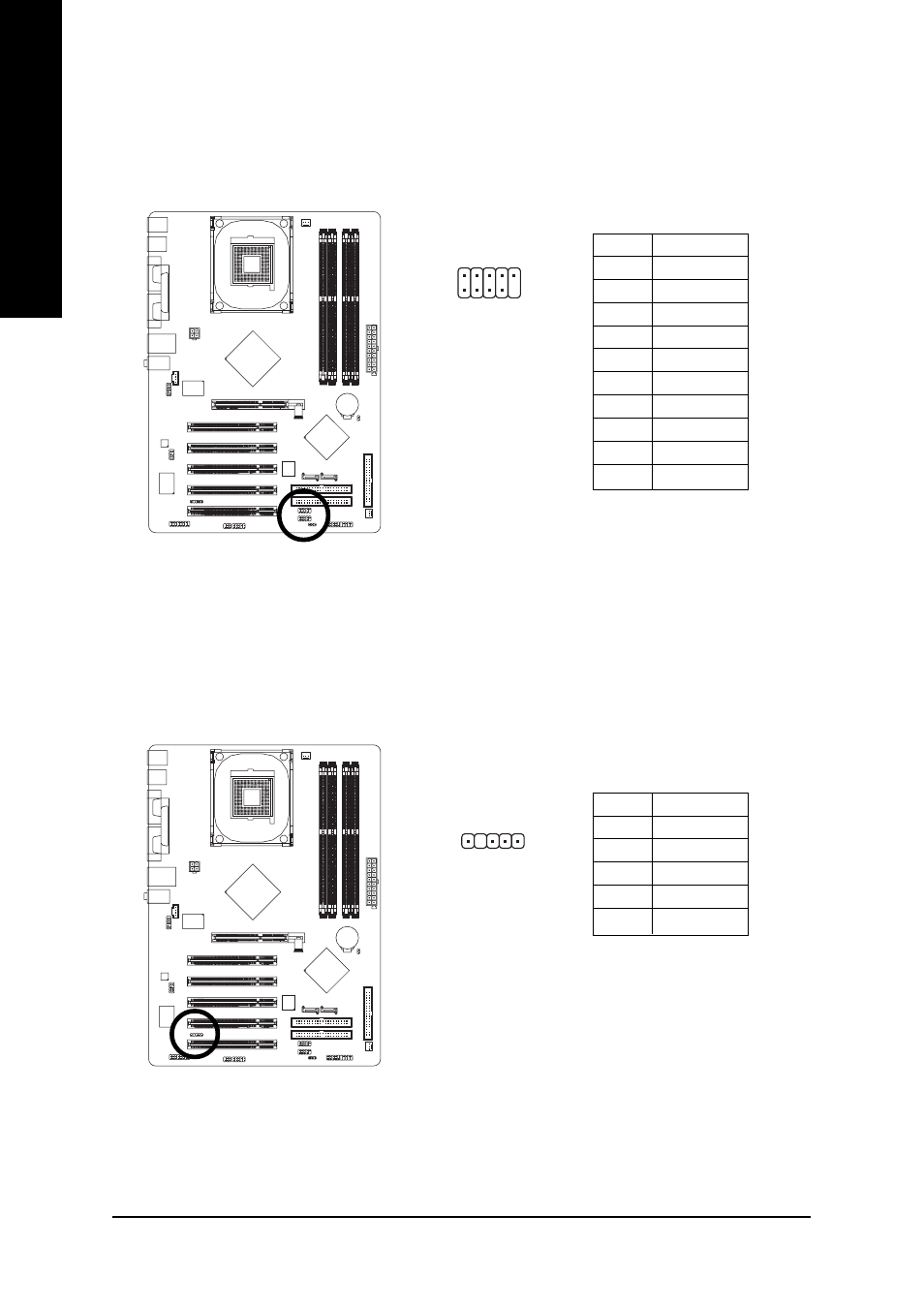

15) F_ USB1 / F_USB2 (Front USB Connector)
Be careful with the polarity of the front USB connector. Check the pin assignment carefully while you
connect the front USB cable, incorrect connection between the cable and connector will make the
device unable to work or even damage it. For optional front USB cable, please contact your local dealer.
Pin No. Definition
1 Power
2 Power
3 USB DX-
4 USB Dy-
5 USB DX+
6 USB Dy+
7 GND
8 GND
9 No Pin
10 NC
16) IR
Be careful with the polarity of the IR connector while you connect the IR. Please contact your nearest
dealer for optional IR device.
Pin No. Definition
1 VCC
2 No Pin
3 IR RX
4 GND
5 IR TX
1
2 10
1 9
