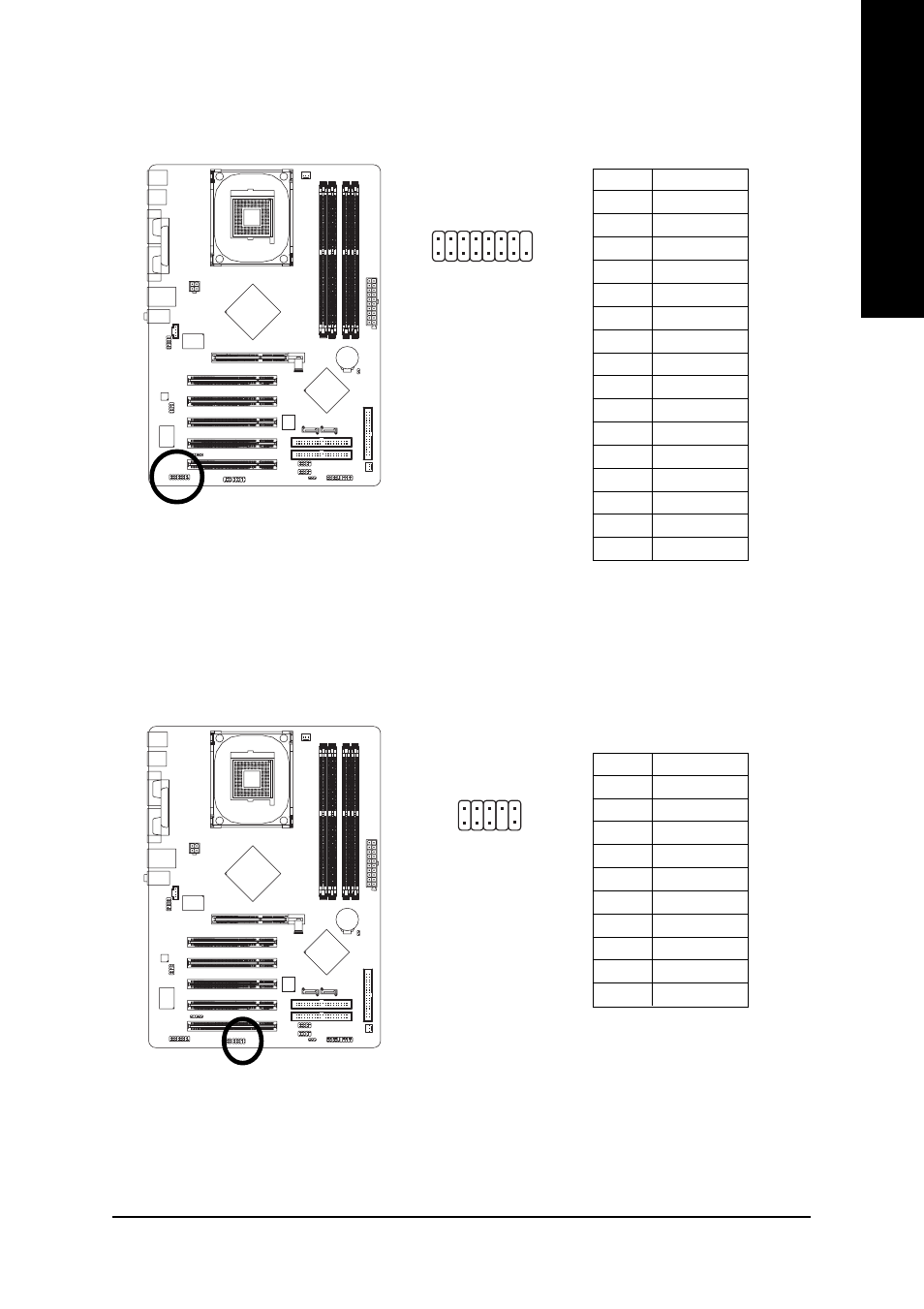

17) GAME (GAME Connector)
This connector supports joystick, MIDI keyboard and other relate audio devices.
Pin No.
Definition
1
VCC
2
GRX1_R
3
GND
4
GPSA2
5
VCC
6
GPX2_R
7
GPY2_R
8
MSI_R
9
GPSA1
10
GND
11
GPY1_R
12
VCC
13
GPSB1
14
MSO_R
15
GPSB2
16
No Pin
18) INFO_LINK
This connector allows you to connect some external devices to provide you extra function.
Pin No.
Definition
1
SMBCLK
2
VCC
3
SMBDATA
4
GPIO
5
GND
6
GND
7
No Pin
8
NC
9
+12V
10
+12V
2
16
1
15
2
10
1
9
