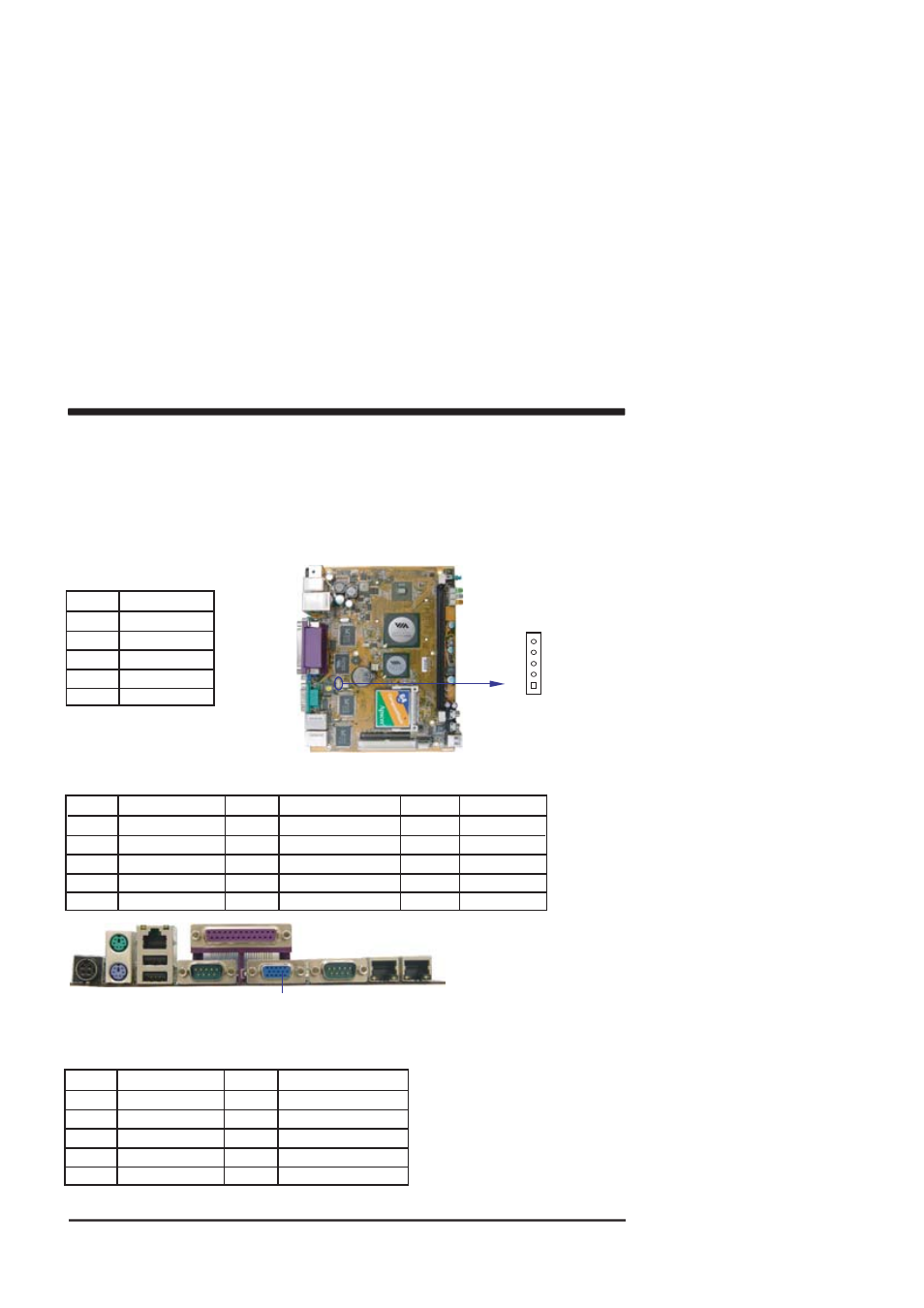

3-9 IR Connector

This built-in IR connector supports the optional wireless transmitting and receiving infrared

module. It supports Infra-red Data Association (IrDA) and Amplitude Shift Keyed IR (ASKIR).

You can configure the setting through the BIOS setup to use the IR function. (see Chapter 4)

JI1: IR connector ---5pin (1.25mm Wafer connector)

IR : ASKIR / IRDA

PIN NO. Description

1 +5VSB

2 FIR

3 IRRX

4 GND

5 IRTX

3-10 VGA Connector

PIN NO. Description PIN NO. Description PIN NO. Description

1 RED 6 GND 11 NC

2 GREEN 7 GND 12 DDC DATA

3 BULE 8 GND 13 H-SYNC

4 NC 9 NC 14 V-SYNC

5 GND 10 GND 15 DDC CLOCK

CN2: VGA DB15 Connector Up side (D SUB 15PIN)

pin1

JI1 IR

CN2 VGA

3-10.1 VGA Header

PIN NO. Description PIN NO. Description

1 BULE 2 RED

3 GREEN 4 GND

5 H-SYNC 6 V-SYNC

7 DDC DATA 8 DDC CLOCL

9 GND 10 KEY

CN46 : VGA Header (2x5pin 2.0mm)
