19
Note: Do not clear CMOS unless
1. Troubleshooting
2. Forget password
3. You fail over-clocking system

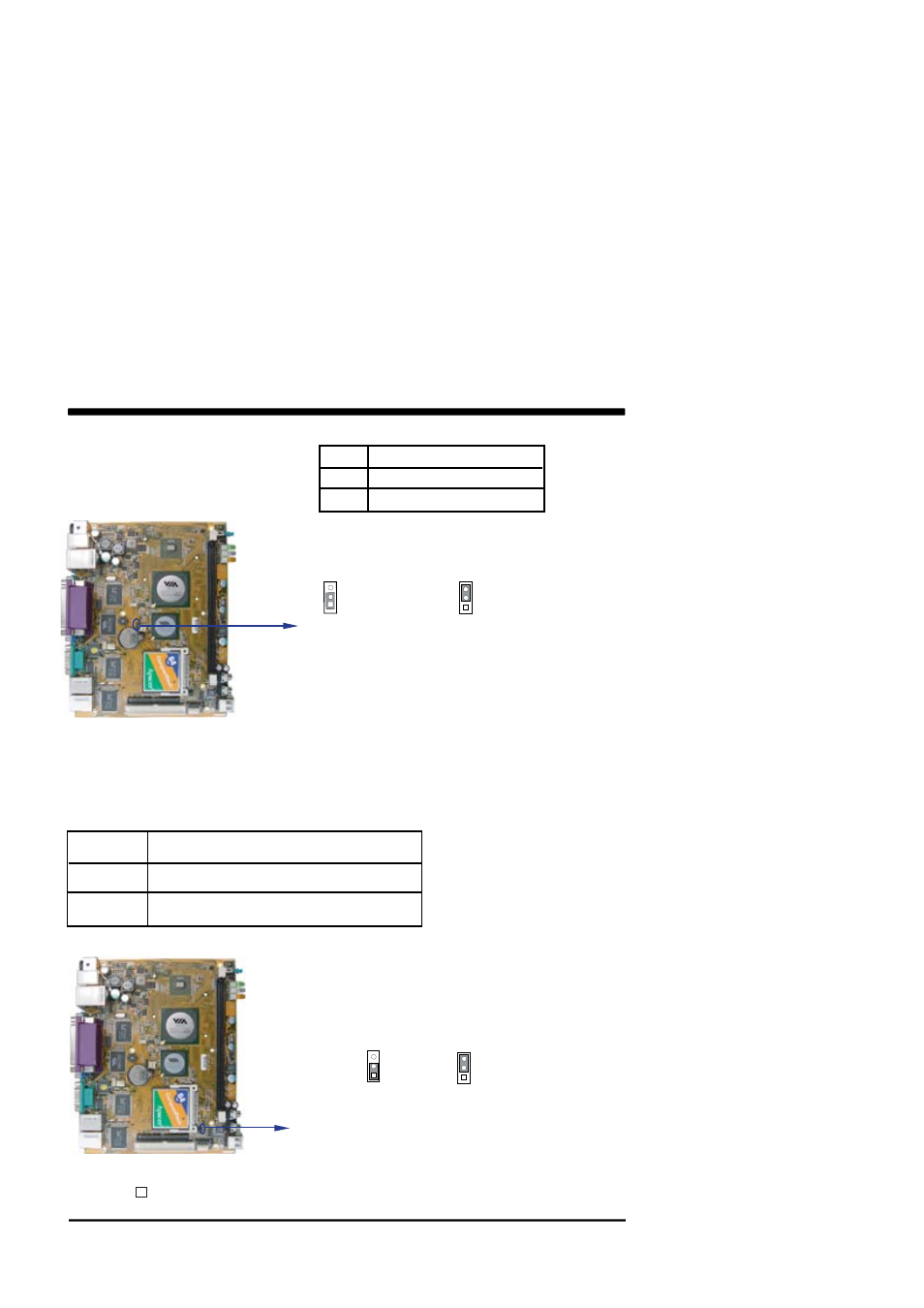

2-10 JCF2 CF Card Power Voltage select
JCF2 Description
*1-2 *For CF CARD power voltage select +5V
2-3 For CF CARD power voltage select +3.3V
JB1 Description
*1-2 *Normal Set
2-3 CMOS Data clear
* Normal
JB1
1
3
2
JCF2
If you use CF card and HDD together, we suggest you
use the jumper setup for +5V.
1
3
2
Clear Setting
3.3V
1
2
3
1
2
3
+5V *
*
We use to refer to as pin1
