28

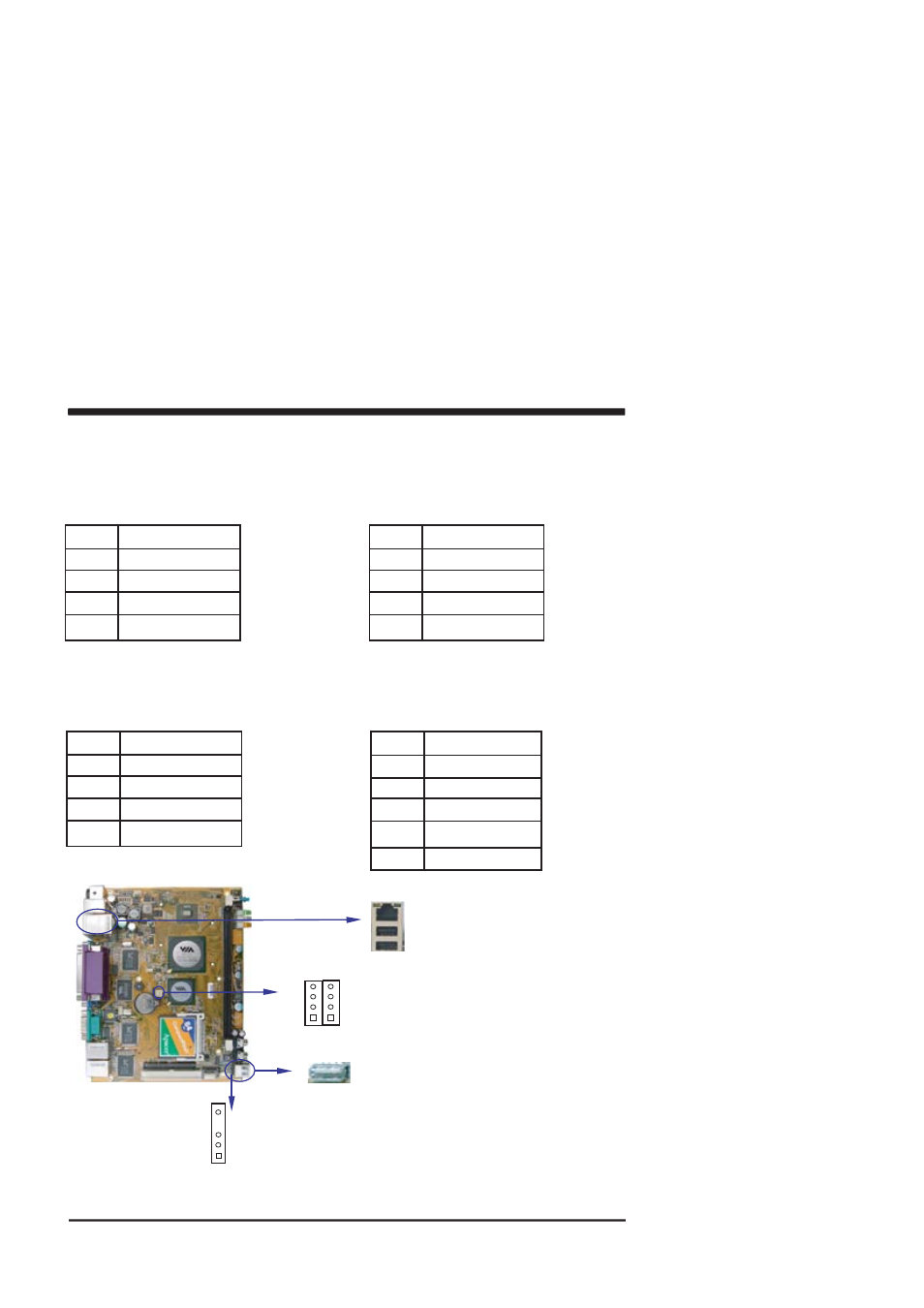

3-8 USB Port/ Header

CN3 (Down side) : USB 0/1port Type A Jack

PIN NO. Description
1 +5V
2 USB DATA 0/1-
3 USB DATA 0/1+
4 GND

JUSB1/JUSB2 USB 4/5 port
5pin header (2.54mm)

PIN NO. Description
1 +5V
2 USB DATA 6/7-
3 USB DATA 6/7+
4 KEY
5 GND

pin1

JUSB2

CN27

CN27: USB port 4 Type A jack

PIN NO. Description
1 +5V
2 USB DATA 6-
3 USB DATA 6+
4 GND

CN14 / CN16 : USB port 2/3 pin
(1.25mm Wafer connector)

PIN NO. Description
1 +5V
2 USB DATA - 4/5
3 USB DATA + 4/5
4 GND

pin1

CN14 CN16

CN3
