21
Step 5
Hand Crank Sprocket
Assembly

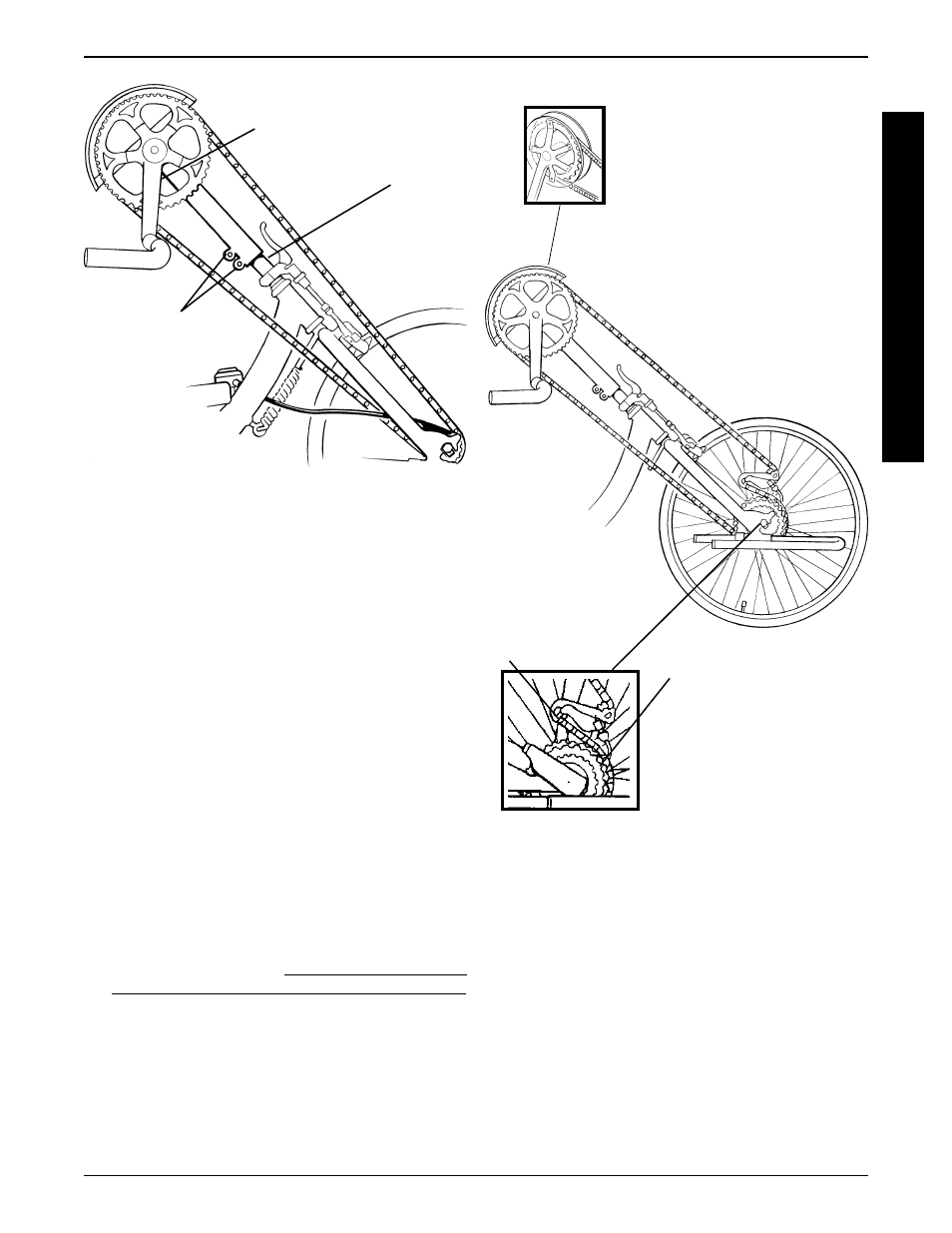

FIGURE 4 - EXCELERATOR XLT/XLT 2000 CHAIN
INSTALLATION- TWENTY-FOUR (24) OR TWENTY-
SEVEN (27) SPEED CASSETTE
Chain Derailleur and
Wheel Sprocket
Step 4
Step 3
FIGURE 3 - EXCELERATOR - XLT CHAIN ADJUSTMENT
Socket
Screws
Fork
Crank
Handles
EXCELERATOR XLT/XLT 2000
CHAIN INSTALLATION - TWENTY-
FOUR (24) OR TWENTY-SEVEN (27)
SPEED CASSETTE (FIGURE 4)
1. Spread the chain out flat and run it around the chain
ring on the crank and the sprocket on the hub.
NOTE: It may be necessary to turn the hand crank in a
clockwise motion to position the chain on the small
sprocket.
2. Ensure that crank assembly is loosened and mov-
able.
3. Lift UP on the chain derailleur and thread the chain
under the derailleur.
4. Thread the chain around the wheel sprocket.
5. Run the chain around the BOTTOM of the wheel
sprocket and back up towards the hand crank
sprocket.
6. Attach the chain together using the master link (w/
clip) provided.
7. To tension chain, refer to EXCELERATOR XLT/XLT
2000 FORK/CRANK ASSEMBLY REPLACEMENT
in PROCEDURE 5 of this manual.
C
H
A
I
N
CHAIN PROCEDURE 7
