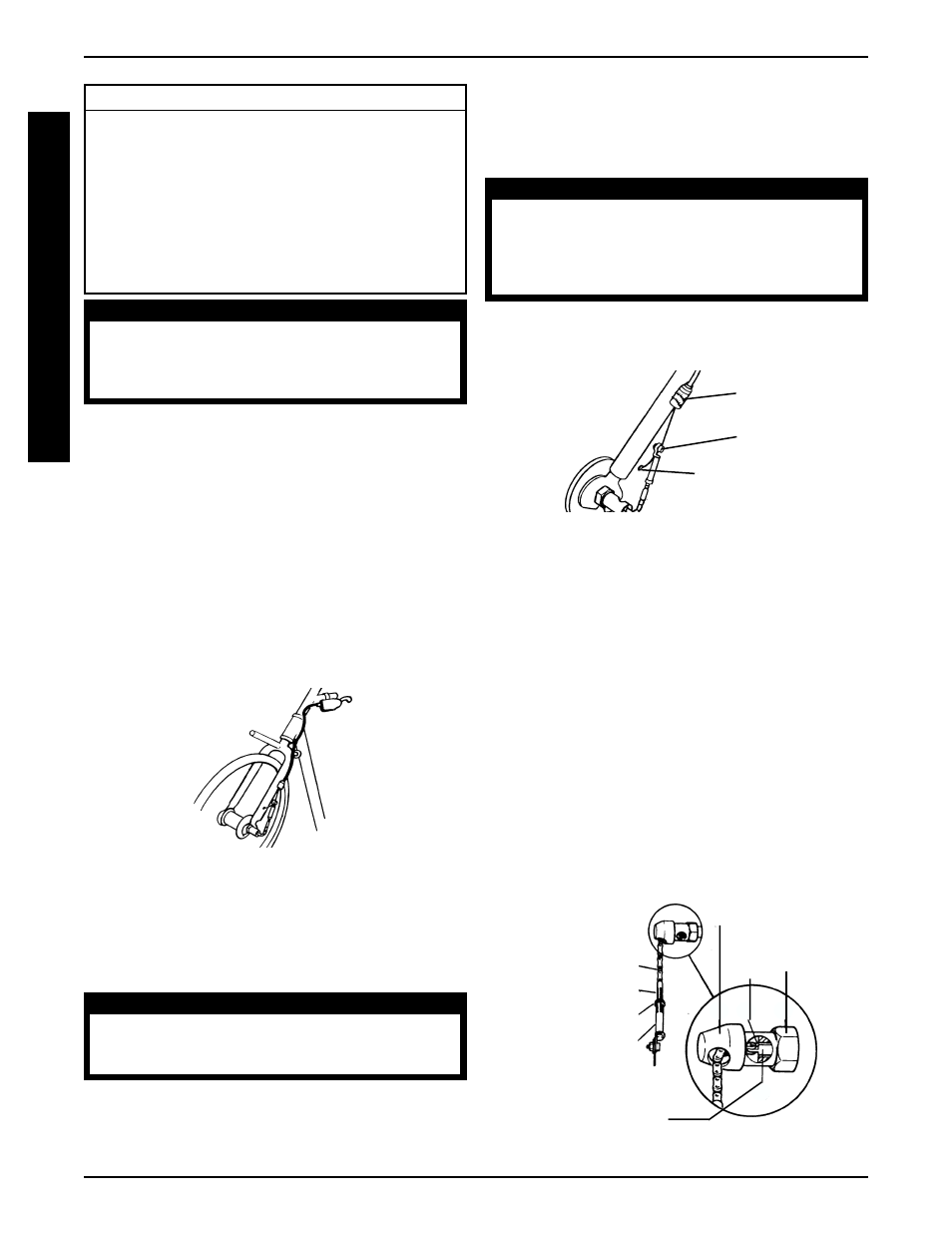

FIGURE 2 - LI'L EXCELERATOR THREE (3) SPEED
SHIFTER CABLE ADJUSTMENT
Procedure B (FIGURE 3)
NOTE: If the following procedure does not enable all three
(3) gears, contact a qualified technician or Invacare for
assistance.
1. Ensure that the indicator chain is fully screwed into
the axle. Turn back a maximum of half a turn.
2. Check that the indicator chain runs freely through the
indicator protector if fitted.
3. Select third gear and loosely connect the cable ad-
juster onto the indicator coupling.
4. Select second gear position on the gear control. Look-
ing through the window in the right-hand axle nut,
turn the cable adjuster until the end of the indicator is
exactly level with the end of the axle.
5. Tighten the locknut against the adjuster.
Clamp
Hex Nut
Cable
WARNING
After ANY adjustments, repair or service and BE-
FORE use, make sure all attaching hardware is tight-
ened securely - otherwise injury or damage may
result.
3. Shift gears to check for correct adjustment.
NOTE: If gears do NOT shift, increase cable tension and
retest proper shifting of gears. If the chain skips a gear,
loosen the cable tension until correct operation is achieved.
CAUTION
DO NOT overtighten the cables. Doing so may
cause the cable to break. If PROCEDURE A does
NOT solve the problem, take your Li'l Excelerator
to an authorized Invacare Dealer or qualified
technician for proper adjustment.
NOTE: Shift gears when pedals are stationary or when
minimum amount of pedaling is being done to avoid wear
on rotating parts of hub.
FIGURE 1 - LI'L EXCELERATOR THREE (3) SPEED
SHIFTER CABLE INSTALLATION
LI'L EXCELERATOR - THREE (3)
SPEED SHIFTER CABLE
INSTALLATION (FIGURE 1)
NOTE: The THREE (3) SPEED Shifter Cable runs from
the LEFT-SIDE of the FRONT FRAME to its mounting
position on the HAND CRANK Assembly Shaft.
1. Run the cable from the left-side of the fork assembly
to mounting position just below the hand crank as-
sembly.
2. Attach the three (3) speed cable to the hand crank
assembly extension.
3. Secure with hardware provided.
LI'L EXCELERATOR - THREE (3)
SPEED SHIFTER CABLE
ADJUSTMENT
CAUTION
DO NOT ride the Excelerator if the hub is out of
adjustment. This will damage the internal parts
and cause hub to malfunction.
Procedure A (FIGURE 2)
1. Loosen the hex nut.
2. Using a pair of pliers, pull cable to increase tension.
Retighten hex nut.
This Procedure includes the following:
LI'L EXCELERATOR:
Three (3) Speed Shifter Cable Installation
Three (3) Speed Shifter Cable Adjustment
EXCELERATOR/EXCELERATOR - XLT:
Seven (7) Speed Shifter Cable Installation
Seven (7) Speed Shifter Cable Adjustment/
Replacement
SPEED SHIFTERS PROCEDURE 6
Locknut
Cable Adjuster
Right- Hand
Axle Nut
Indicator Chain
FIGURE 3 - LI'L EXCELERATOR THREE (3) SPEED
INDICATOR CHAIN ADJUSTMENT
Indicator Protector
Axle
Indicator Coupling
Indicator Chain
