1. Secure and adjust rear wheels (PROCEDURE 4).

2. Adjust hand crank assembly (PROCEDURE 5).

3. Adjust chain (PROCEDURE 7).

4. Adjust the optional cantilever brake cable (PROCE-

DURE 8).

5. Adjust parking brake (PROCEDURE 8).

6. Adjust back height and/or angle (PROCEDURE 9).

7. Adjust seat position/upholstery (PROCEDURE 10).

8. Adjust footrest (PROCEDURE 11).

9. Check that all hardware is tight.

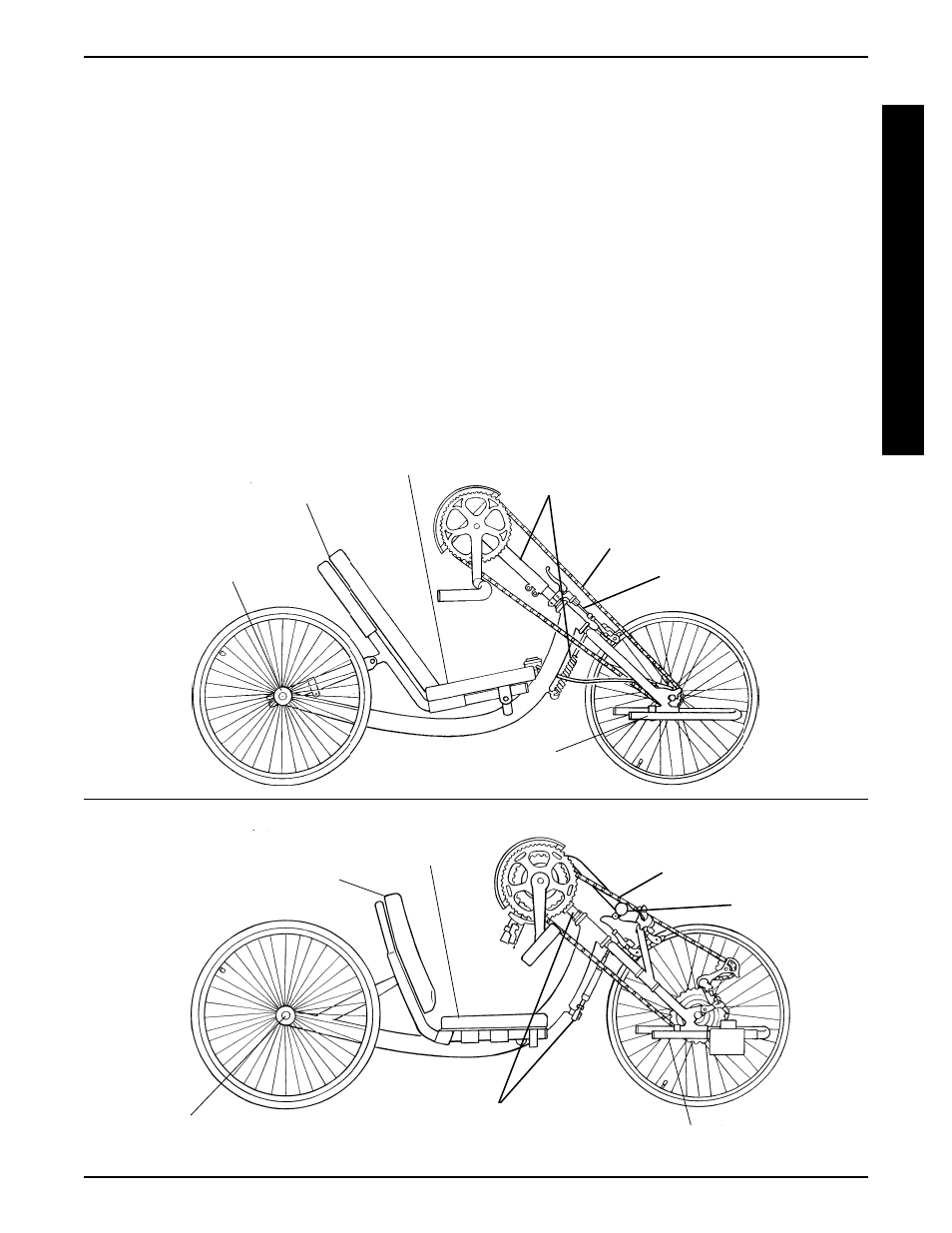

FIGURE 2 - EXCELERATOR XLT/XLT 2000 ASSEMBLY PROCEDURES

EXCELERATOR XLT/XLT 2000
ASSEMBLY PROCEDURES
(FIGURE 2)

NOTE: Invacare recommends that the following pro-
cedures be performed by a qualified technician.

Tools required:

Adjustable Wrench (10-12-inches)
5, 8 and 32 mm Wrench
3/16-inch Allen Wrench
1/4-inch Allen Wrench
1/2-inch Box Wrench
1/2-inch Socket Wrench
Two (2) Medium Screwdrivers (Flathead and Phillips)

PROCEDURE 3

ASSEMBLY PROCEDURES

A
S
S
E

P
R

C
E
D
U
R
E
S

PROCEDURE 4

PROCEDURE 9

PROCEDURE 7

PROCEDURE 11

PROCEDURE 10

PROCEDURE 8

PROCEDURE 5
