Intel GA-8I915G-ZFD - Manual (Page 21)

Hardware Installation - 21 -
English
2
10
1
9
Pin No. Definition
1 TPA2+
2 TPA2-
3 GND
4 GND
5 TPB2+
6 TPB2-
7 No Pin
8 Power
9 Power
10 GND

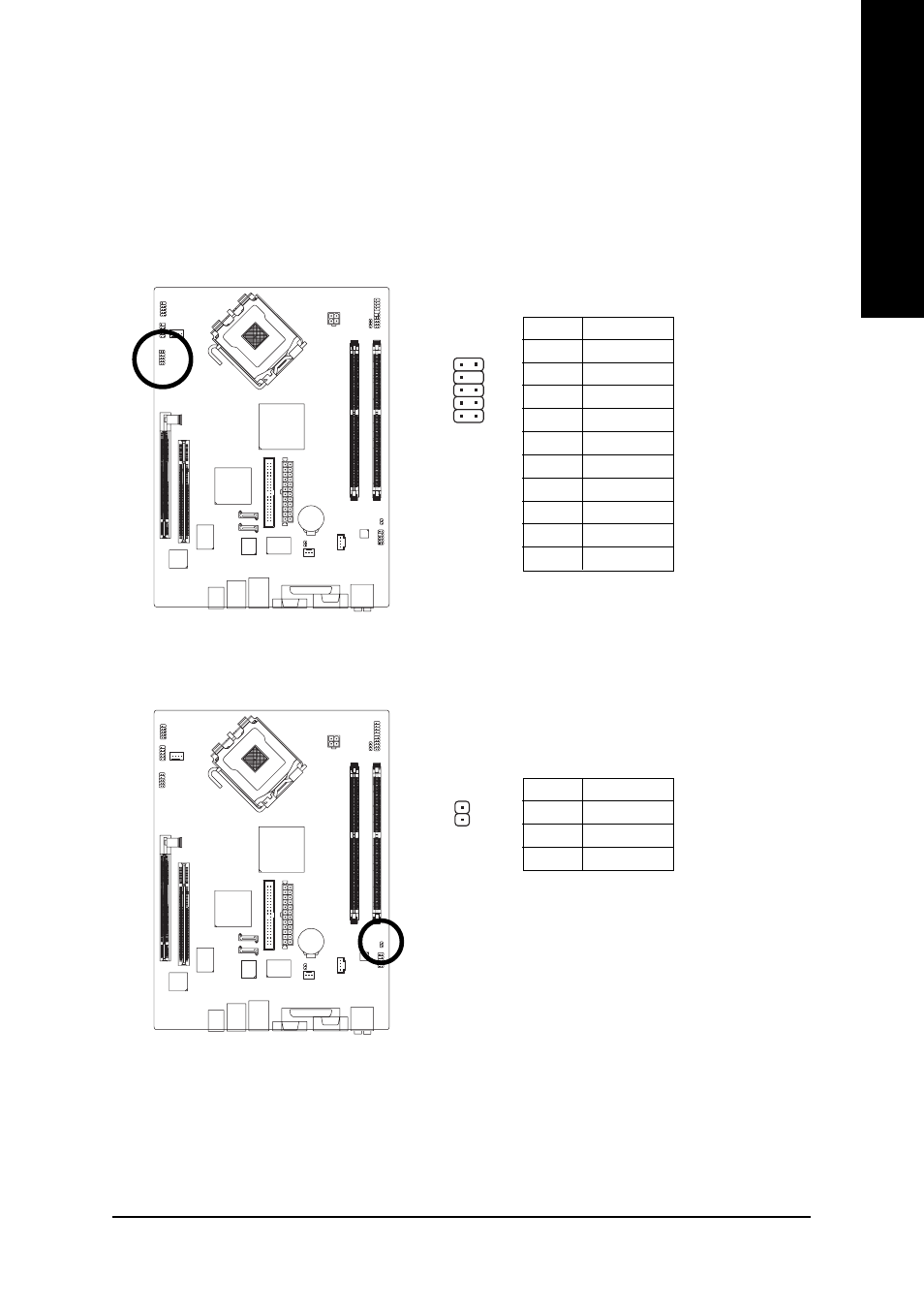

12) F1_1394 (IEEE 1394 Connector)
Serial interface standard set by Institute of Electrical and Electronics Engineers, which has features
like high speed, high bandwidth and hot plug.
Be careful with the polarity of the IEEE1394 connector. Check the pin assignment carefully while
you connect the IEEE1394 cable, incorrect connection between the cable and connector will make
the device unable to work or even damage it. For optional IEEE1394 cable, please contact your
local dealer.
13) SPDIF_IN
2
Pin No. Definition
1 No Pin
2 Signal
3 GND
