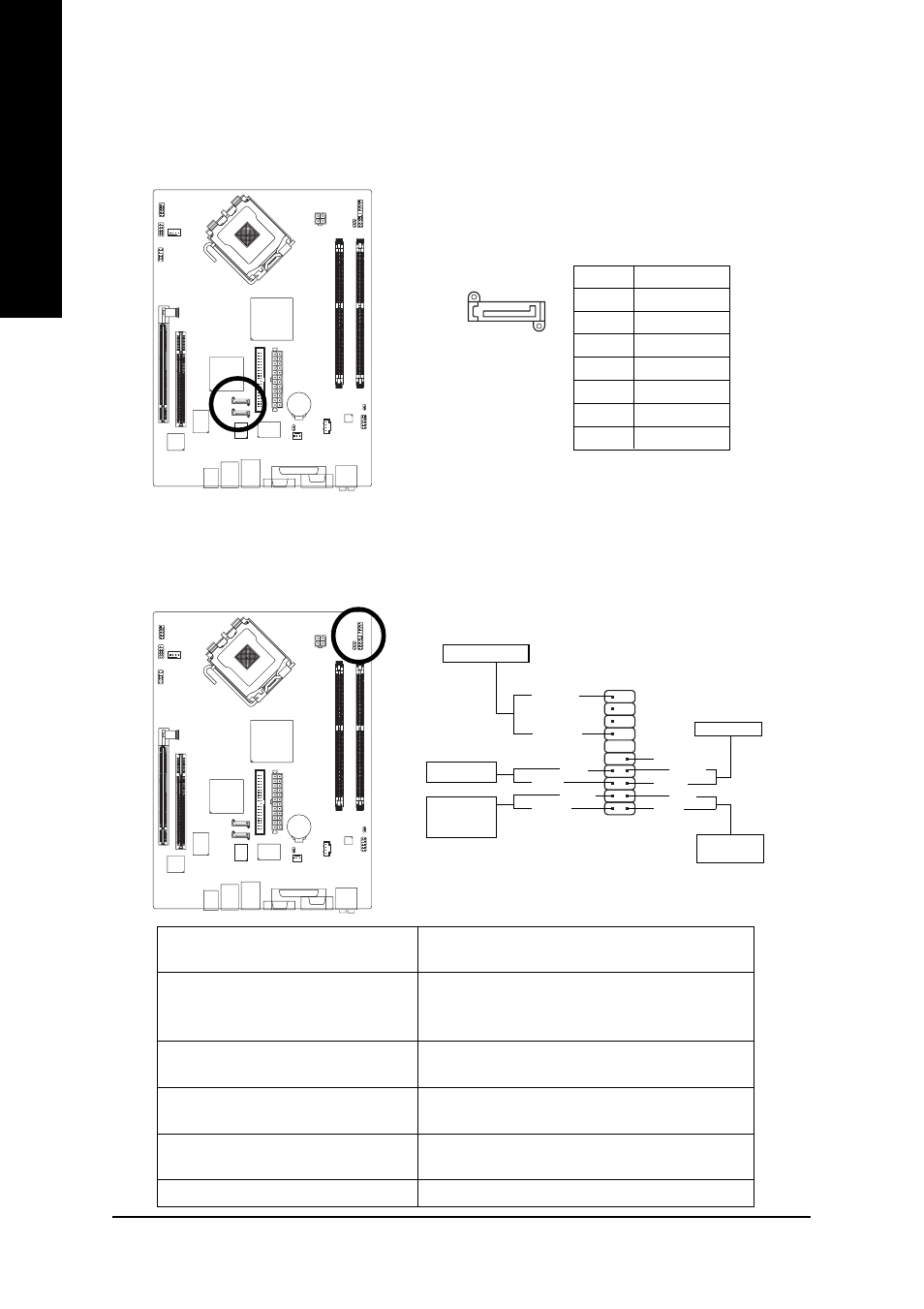

GA-8I915G-ZFD Motherboard - 18 -
English
1 7
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
6) S_ATA0/S_ATA1 (Serial ATA Connector, Controlled by ICH6)
Serial ATA can provide up to 150MB/s transfer rate. Please refer to the BIOS setting for the
Serial ATA and install the proper driver in order to work properly.
1 2
19 20
HD-
HD+
RES+
RES-
NC
SPEAK-
MSG-
MSG+
PW-
PW+
SPEAK+
Message LED/
Power/
Sleep LED
Power Switch
Speaker Connector
IDE Hard Disk
Active LED
Reset Switch
HD (IDE Hard Disk Active LED) (Blue) Pin 1: LED anode(+)
Pin 2: LED cathode(-)
SPEAK (Speaker Connector) (Amber) Pin 1: Power
Pin 2- Pin 3: NC
Pin 4: Data(-)
RES (Reset Switch) (Green) Open: Normal
Close: Reset Hardware System
PW (Power Switch) (Red) Open: Normal
Close: Power On/Off
MSG(Message LED/Power/Sleep LED) Pin 1: LED anode(+)
(Yellow) Pin 2: LED cathode(-)
NC ( Purple) NC
7) F_PANEL (Front Panel Jumper)
Please connect the power LED, PC peaker, reset switch and power switch etc of your chassis front
panel to the F_PANEL connector according to the pin assignment below.
