Hardware Installation
- 19 -
English
1
Pin No.
Definition
1
MPD+
2
MPD-
3
MPD-
1
9
2
10

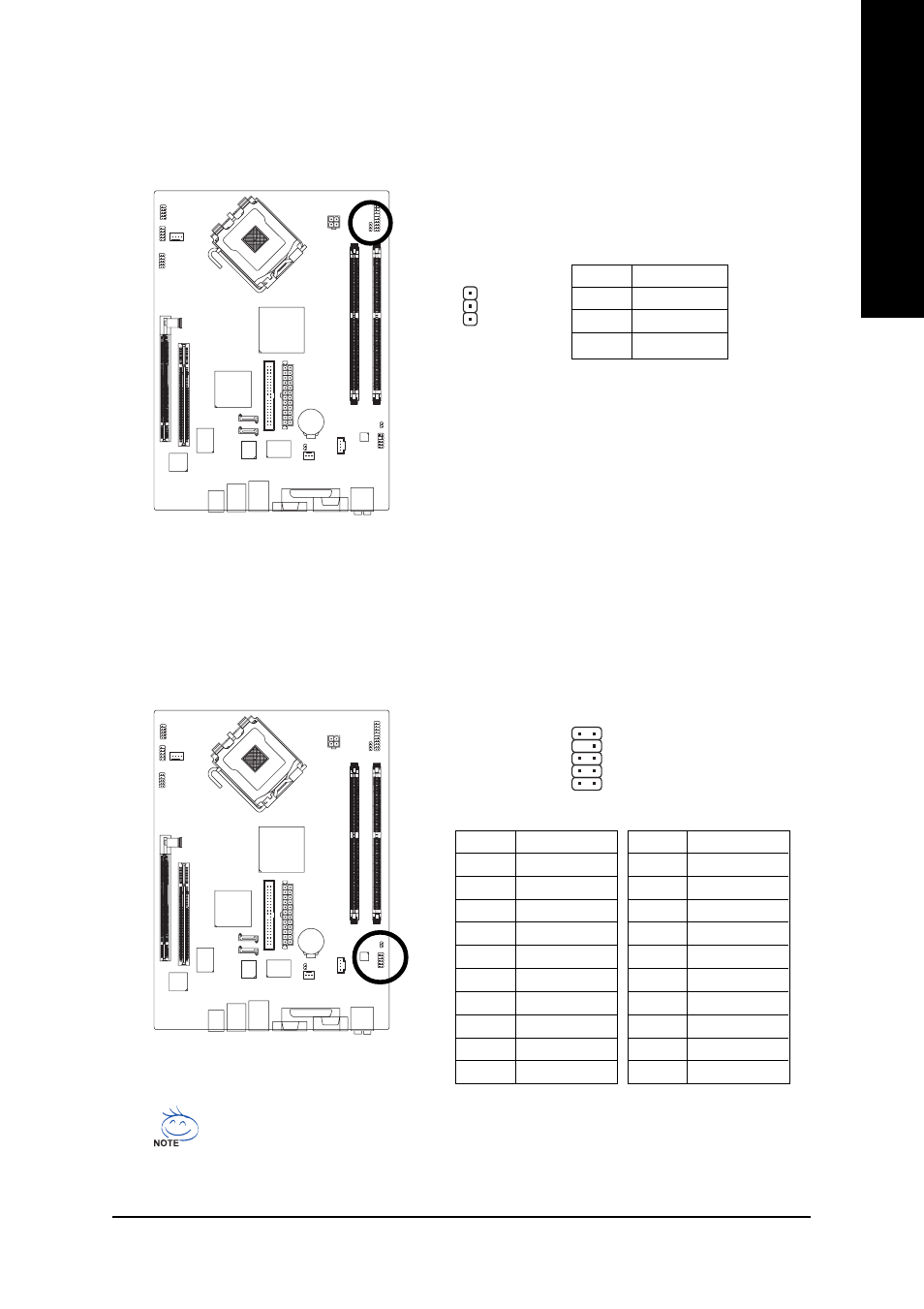

9) AZALIA_FP(Front Audio Panel Connector)
This connector is supported to connect HD(High Definition) Audio and AC'97 Audio. Check the pin
assignment carefully while you connect the audio panel cable, incorrect connection between the
cable and connector will make the device unable to work or even damage it. For optional audio
panel cable, please contact your local dealer.
8) PWR_LED
PWR_LED is connect with the system power indicator to indicate whether the system is on/off. It
will blink when the system enters suspend mode.
Pin No.
Definition
1
MIC2_L
2
GND
3
MIC2_R
4
-ACZ_DET
5
Line2_R
6
FSENSE1
7
FAUDIO_JD
8
No Pin
9
LINE2_L
10
FSENSE2
Pin No.
Definition
1
MIC
2
GND
3
MIC Power
4
N/A
5
Line Out (R)
6
N/A
7
N/A
8
No Pin
9
Line Out (L)
10
N/A
HD Audio:
AC'97 Audio:
HD Audio is the default setting for this connector. To enable AC'97 Audio, from BIOS
settings, set Front Panel Type under Integrated Peripherals to AC97.
