Intel
®
80303 and 80302 I/O Processors
Specification Update
35
Documentation Changes
20.
Table 8-17 on page 8-38 has incorrect data
Problem:
The bit locations for External Interrupt 5 are incorrectly shown as bits '9:4'. It should be '7:4'.
Workaround:

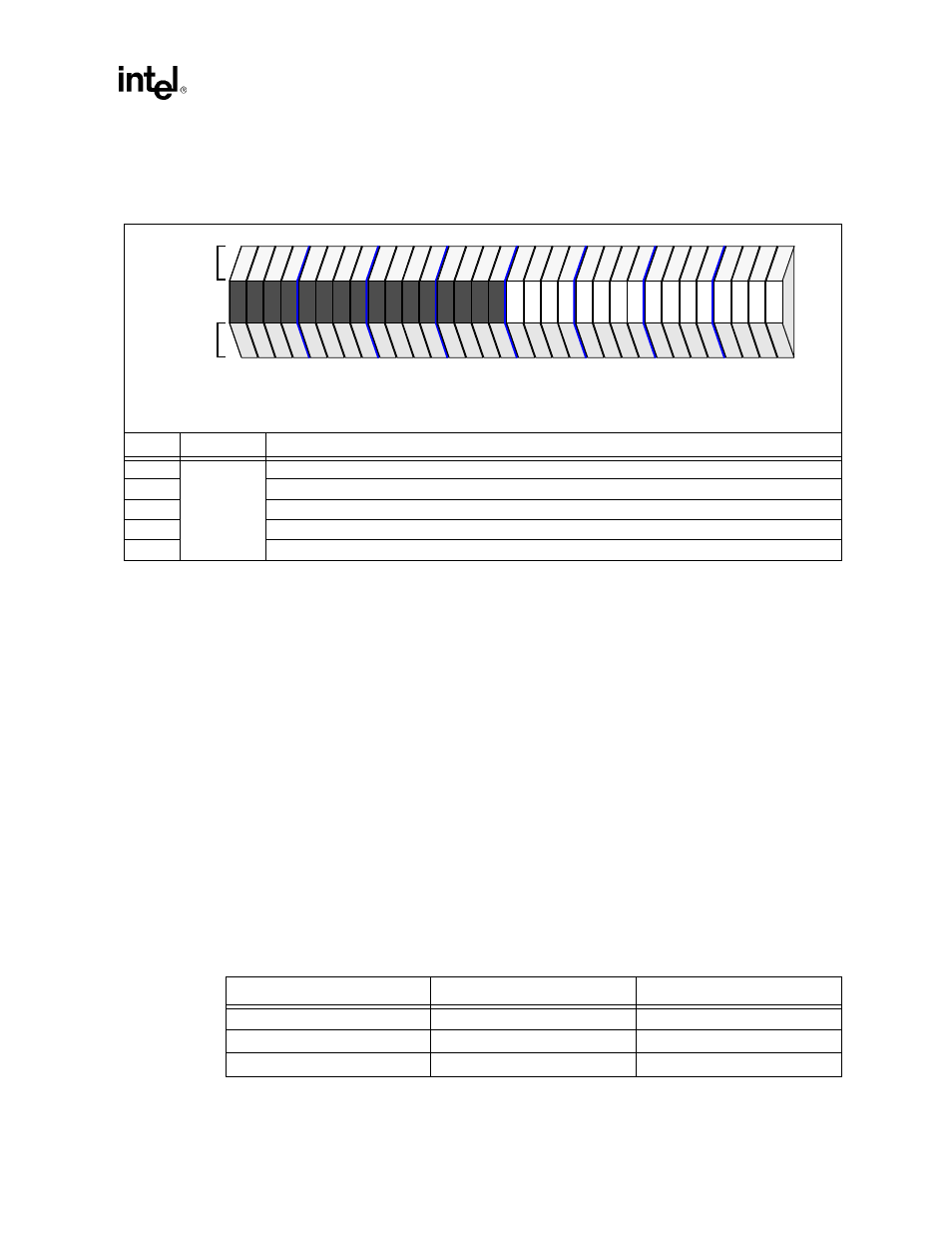

Replace Table 8-17 with the following:
Affected Docs:
Intel
®
80303 I/O Processor Developer’s Manual
21.
Section 11.2.8 on page 11-5 has incorrect data
Problem:
The last sentence in the third paragraph states, 'Specifications for a cold and warm reset can be
found in the 80960RM I/O Processor Data Sheet and the 80960RN I/O Processor Data Sheet.'
This sentence should be removed, it does not pertain to the 80303 I/O processor.
Workaround:
Change text to the following: 'The 80303 I/O processor complies with the PCI Local Bus
Specification, Revision 2.2. Reset parameters are defined in this specification.'
Affected Docs:
Intel
®
80303 I/O Processor Developer’s Manual
22.
Section 13.2.3.1 on page 13-13 has incorrect data
Problem:
The first sentence states, 'The MCU supports an ECC only memory subsystem ranging from 32 to
528 Mbytes.' It should be 512 Mbytes, not 528 Mbytes.
Workaround:
Change this sentence to the following: 'The MCU supports an ECC only memory subsystem
ranging from 32 to 512 Mbytes.'
Affected Docs:
Intel
®
80303 I/O Processor Developer’s Manual
23.
Table 13-4 on page 13-9 has incorrect data
Problem:
Table 13-4 lists incorrect wait states for the flash bus.
Workaround:
Replace Table 13-4 with the following:
Affected Docs:
Intel
®
80303 I/O Processor Developer’s Manual
Bit
Default
Description
31:16
Default
Value loaded
from image
in Control
Table
Reserved (initialize to 0)
15:12
External Interrupt 7 Field - IMAP1.x7
11:8
External Interrupt 6 Field - IMAP1.x6
7:4
External Interrupt 5 Field - IMAP1.x5
3:0
External Interrupt 4 Field - IMAP1.x4
Flash Speed
Address-to-Data Wait States
Recovery Wait States
<= 55 ns
8
4
<= 115 ns
12
4
<= 175 ns
20
4
PCI
IOP
Attributes
Attributes
28
24
20
16
12
8
4
0
31
rv
na
rv
na
rv
na
rv
na
rv
na
rv
na
rv
na
rv
na
rv
na
rv
na
rv
na
rv
na
rv
na
rv
na
rv
na
rv
na
rw
na
rw
na
rw
na
rw
na
rw
na
rw
na
rw
na
rw
na
rw
na
rw
na
rw
na
rw
na
rw
na
rw
na
rw
na
rw
na
Attribute Legend:
RV = Reserved
PR = Preserved
RS = Read/Set
RW = Read/Write
RC = Read Clear
RO = Read Only
NA= Not Accessible
IMAP1
Intel
®
i960
®
Core internal bus address
FF00 8524H
