Documentation Changes

Intel

80303 and 80302 I/O Processors

Specification Update

17.

Section 13.2.4.3 on page 13-30 has incorrect data

Problem:

The first sentence incorrectly states, 'If enabled'. ECC is always enabled on the 80303 I/O
processor, it is not optional.

Workaround:

Remove 'If enabled'.

Affected Docs:

Intel

80303 I/O Processor Developer’s Manual

18.

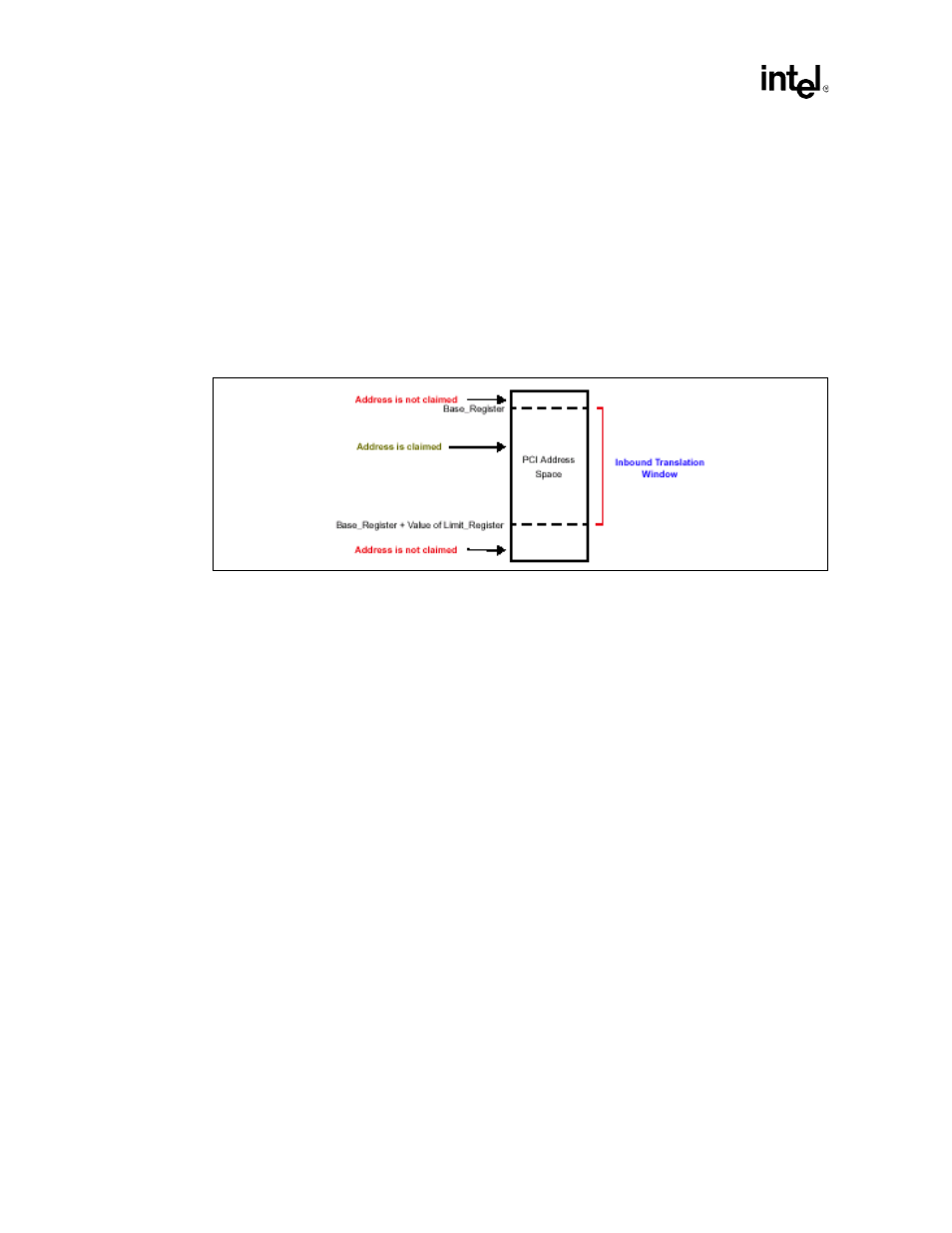

Figure 15-3 on page 15-7 has missing text

Problem:

The figure shows 'se_Register + Value of Limit_Register'. It should be 'Base_Register + Value of
Limit_Register'.

Workaround:

Replace Figure 15-3 with the following:

Affected Docs:

Intel

80303 I/O Processor Developer’s Manual

19.

Section 15.7.39 on page 15-100 has incorrect data

Problem:

The last paragraph is incorrect. It states, 'Note that bits 4:0, bits 12:11, bit 9 and bit 7 can result in
an NMI# interrupt driven to the i960 core processor.' Bit 12 is a reserved bit, so it should be
removed from this sentence.

Workaround:

Change the last paragraph to the following: 'Note that bits 4:0, 11, 9 and 7 can result in an NMI#
interrupt driven to the i960 core processor.'

Affected Docs:

Intel

80303 I/O Processor Developer’s Manual
