Intel ® 80303 and 80302 I/O Processors Specification Update 31
Documentation Changes
9. Figure 25-1 on pg 25-1 has incorrect data
Problem: The Internal bus in diagram shows 66 MHz bus speed. The actual bus speed is 100 MHz
Workaround: Replace Figure 25-1 with the following:
Affected Docs: Intel
®
80303 I/O Processor Developer’s Manual
10. Section 25.1.3 on page 25-2
Problem: The third sentence of the first paragraph is incorrect. It states the maximum bus speed of the region
is 66 MHz. It is actually 100 MHz.
Workaround: Change the third sentence to the following:
“It supports clock frequencies up to a maximum of 100 MHz.”
Affected Docs: Intel
®
80303 I/O Processor Developer’s Manual

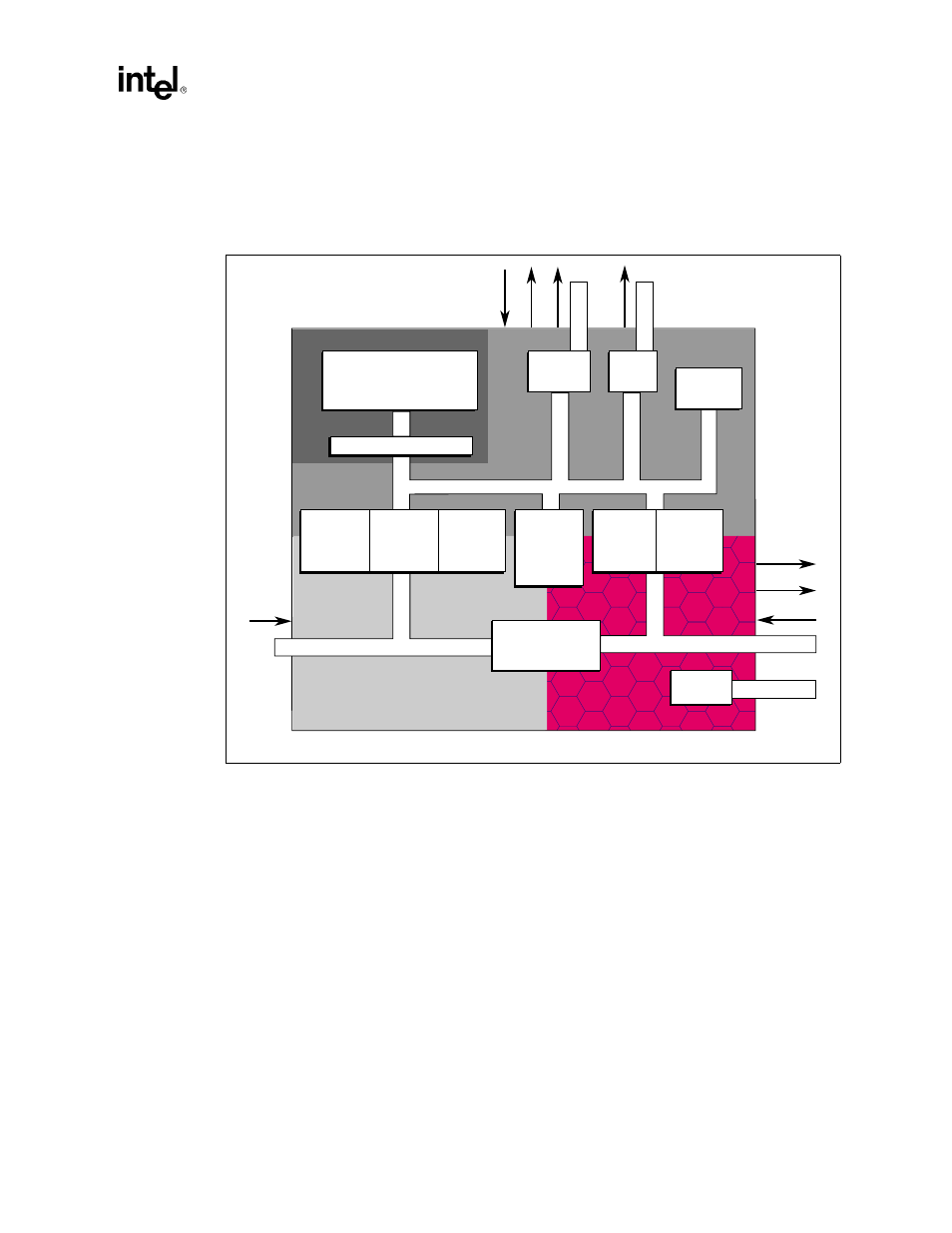

Figure 25-1. Intel ® 80303 I/O Processor Clocking Regions Diagram
A8053-01
P_CLK
R_CLKOUT
R_CLKIN
S_CLKOUT
[5:0]
Intel ® i960 ® JN CPU 100 MHz
16K I-Cache
4K D-Cache
Clock Region 3
Clock Region 1
Clock Region 2
Clock Region 4
Application
Accelerator
800 MBs Internal Bus (100MHz/64-bit)
64-Bit I/F
I 2
C Bus
Performance
Monitoring
Unit
Memory
Controller
I 2 C
Unit
DCLKOUT DCLK[3:0] SCL DCLKIN
Bus Interface Unit
6 Reg/Gnt Pairs
Primary PCI Bus
2 Channel
DMA
Controller
Primary
Address
Translation
Unit
PCI - to - PCI
Bridge
I 2 0
Messaging
Unit
Secondary PCI Bus
Secondary
Address
Translation
Unit
1 Channel
DMA
Controller
Secondary
PCI Arbiter
