Hardware Installation - 25 -
English

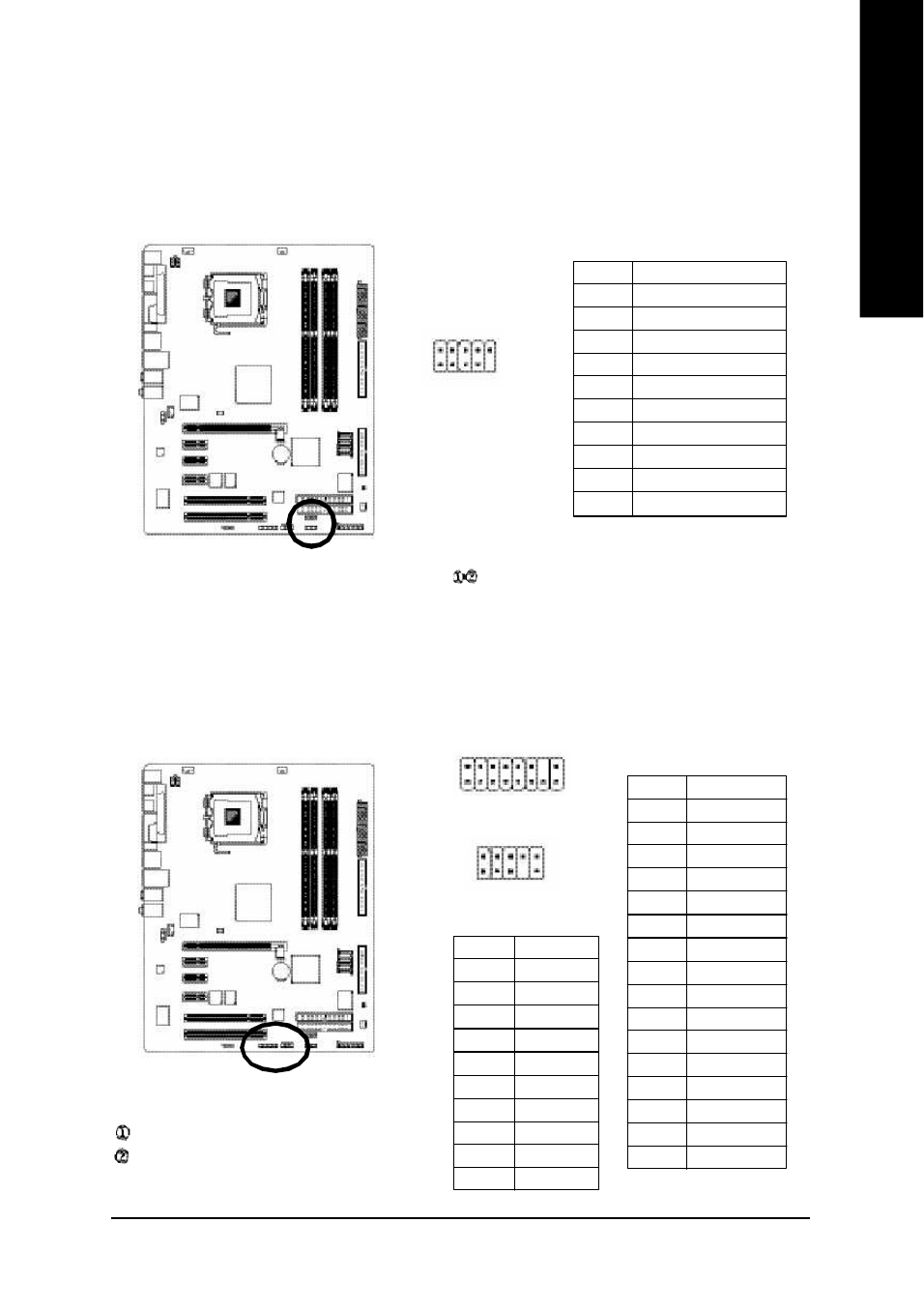

16) F1_1394/F2_1394 (IEEE 1394 Connector)
Serial interface standard set by Institute of Electrical and Electronics Engineers, which has features like
high speed, high bandwidth and hot plug.
Be careful with the polarity of the IEEE1394 connector. Check the pin assignment carefully while you
connect the IEEE1394 cable, incorrect connection between the cable and connector will m ake the
device unable to work or even damage it. For optional IEEE1394 cable, please contact your local
dealer.
15) F1_USB / F2_USB (Front USB Connector, Yellow )
Be careful with the polarity of the front USB connector. Check the pin assignment carefully while
you connect the front USB cable, incorrect connection between the cable and connector will make
the device unable to work or even damage it. For optional front USB cable, please contact your
local dealer. The "USB Device Wake up From S3" is only supported by rear USB ports.
Pin No. Definition
1 Power
2 Power
3 TPA0+
4 TPA0-
5 GND
6 GND
7 TPB0+
8 TPB0-
9 Power
10 Power
11 TPA1+
12 TPA1-
13 GND
14 No Pin
15 TPB1+
16 TPB1-
Pin No. Definition
1 TPA2+
2 TPA2-
3 GND
4 GND
5 TPB2+
6 TPB2-
7 No Pin
8 Power
9 Power
10 GND
1
2
9
1 0
Pin No. Definition
1 Power
2 Power
3 USB DX-
4 USB Dy-
5 USB DX+
6 USB Dy+
7 GND
8 GND
9 No Pin
10 NC
2 1 6
1 1 5
2 1 0
1 9
F2_1394
F1_1394
Only for GA-8I915P Ultra.
Only for GA-8I915P Pro.
