GA-8I915P Series Motherboard

- 24 -

English

1

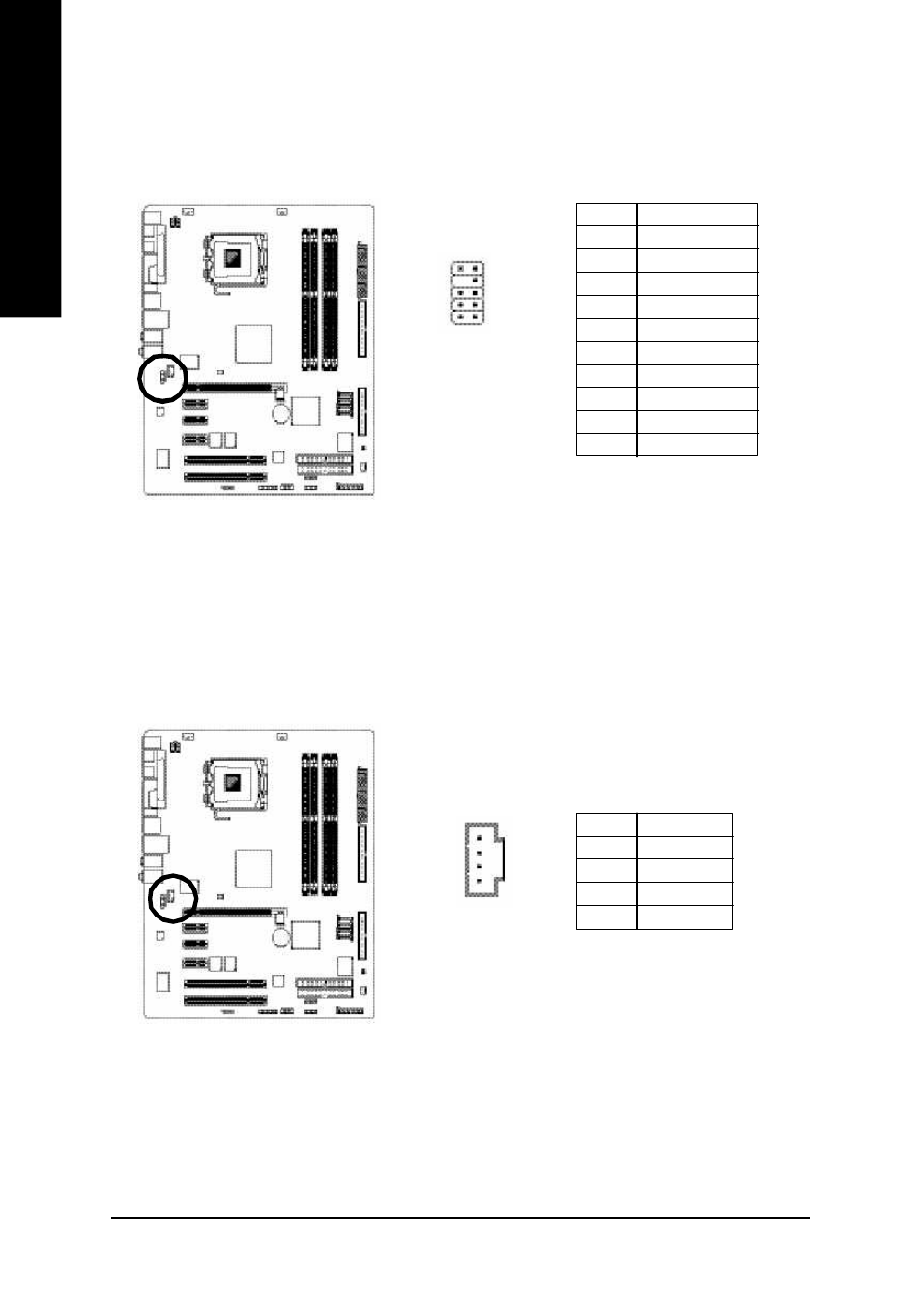

14) CD_IN (CD IN, Black)

Connect CD-ROM or DVD-ROM audio out to the connector.

Pin No.

Definition

1

CD-L

2

GND

3

GND

4

CD-R

13) AZALIA_FP (Front Audio Panel Connector)

Please make sure the pin assigment on the cable is the same as the pin assigment on the MB header.
To find out if the chassis you are buying support front audio panel connector, please contact your dealer.

1

2

9

1 0

Pin No.

Definition

1

MIC2_L

2

GND

3

MIC2_R

4

-ACZ_DET

5

Line2_R

6

FSENSE1

7

FAUOIO_JD

8

No Pin

9

LINE2_L

10

FSENSE2
