Hardware Installation - 21 -
English

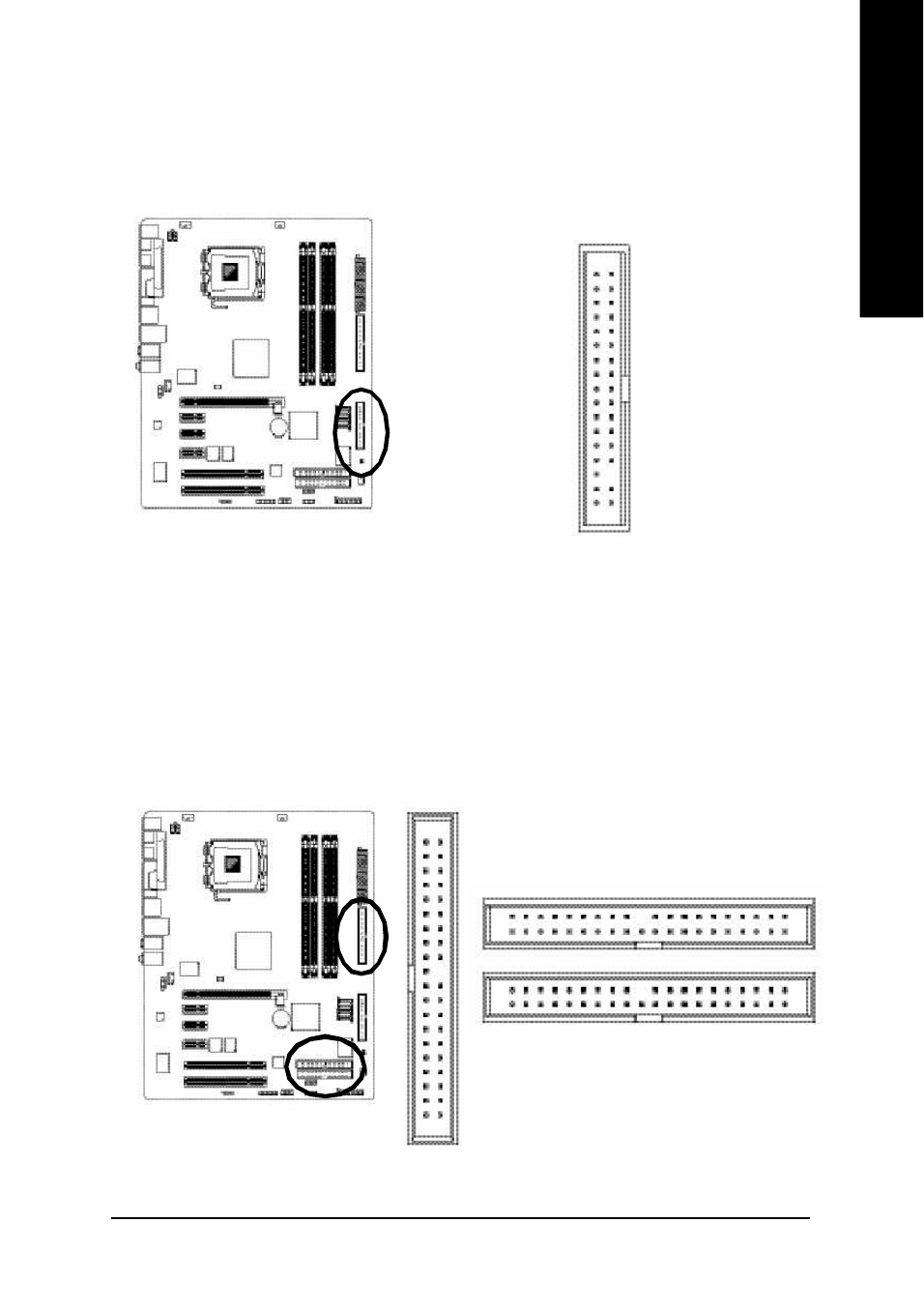

8/9) IDE1/IDE2/IDE3 (IDE Connector)
An IDE device connects to the com puter via an IDE connector. One IDE connector can connect
to one IDE cable, and the single IDE cable can then connect to two IDE devices (hard drive or
optical drive).
If you wish to connect two IDE devices, please set the jum per on one IDE device as Master and
the other as Slave (for inform ation on settings, please refer to the instructions located on the IDE
device).
1 2
3 9 4 0
7) FDD (FDD Connector)
The FDD connector is used to connect the FDD cable while the other end of the cable connects to the
FDD drive. The types of FDD drives supported are:360KB, 720KB, 1.2MB, 1.44MB and 2.88MB.
Please connect the red power connector wire to the pin1 position.
1 2
3 3 3 4
1
2
3 9
4 0
