STEP 2 (See Diagram 2)
A.) Attach Main Seat Support (#4) to the Cross Brace (#3). Secure it with a 4 3/8” x 1 ¾”
Bracket (#19), two M10 x 2 ¾” Carriage Bolts (#37), two
∅
¾” Washers (#26), and two
M10 Aircraft Nuts (#47).
B.) Attach the Leg Developer Holder (#5) to the Front Stabilizer (#6). Secure it with three
M10 x 5/8” Allen Bolts (#41) and Ø ¾” Washers (#26).
C.) Attach the Leg Developer Holder to the Main Seat Support. Secure it with two M10 x 2
½” Carriage Bolts (#37), two
∅
¾” Washers (#26), and M10 Aircraft Nuts (#43)
horizontally. Secure it with one M10 x 2 3/8” Carriage Bolt (#36), Ø ¾” Washer (#26)
and M10 Aircraft Nut (#47) vertically.
D.) Thread a M18 Lock Knob (#48) into the hole on the Leg Developer Holder.

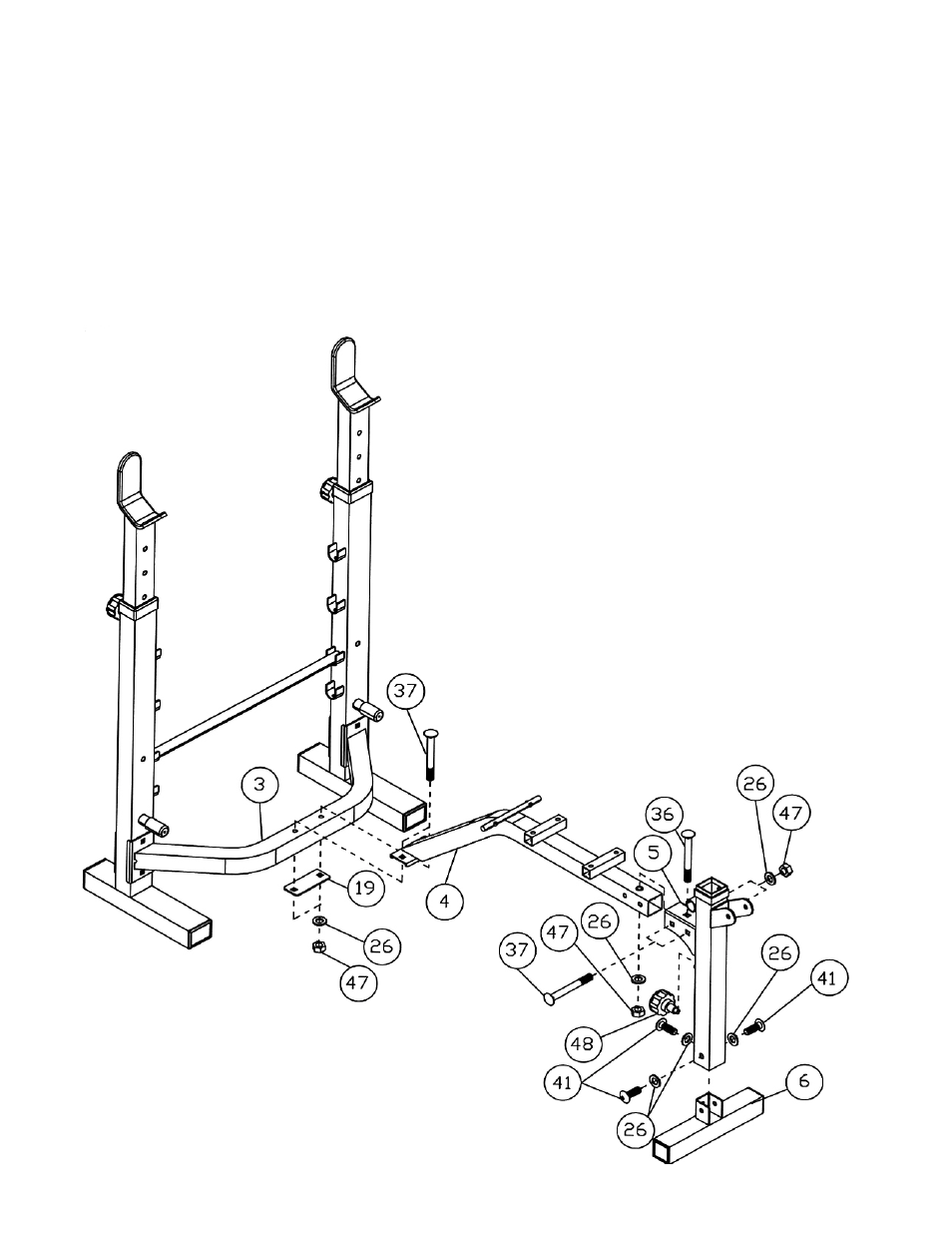

DIAGRAM 2
