STEP 4 (See Diagram 4)
A.) Attach the Leg Developer (#11) to the Leg Developer Holder. Secure it with one M10
x 2 7/8” Allen Bolt (#40), two Ø ¾” Washers (#26), and one M10 Aircraft Nut (#47).
B.) Insert one Foam Tube (#14) halfway through the hole on the Leg Developer Holder.
Push two Ø 2 ¾” Foam Rolls (#22) onto the Tube from both ends.
C.) Insert two Foam Tubes halfway through the holes on the Leg Developer. Push four Ø
4” Foam Rolls (#23) onto the Tubes from both ends. Insert four Foam Roll End Caps
(#33) into the ends.
D.) Attach the Arm Curl Pad (#18) to the Arm Curl Stand (#12). Secure it with two M8 x
5/8” Allen Bolts (#42) and Ø 5/8” Washers (#25).
E.) Pull the M18 Lock Knob (#48) and insert the Arm Curl Stand into the opening on the
Leg Developer Holder. Remove the Arm Curl Stand when doing leg exercises.
F.) Attach a Spring Clip (#24) to the weight post on the Leg Developer.

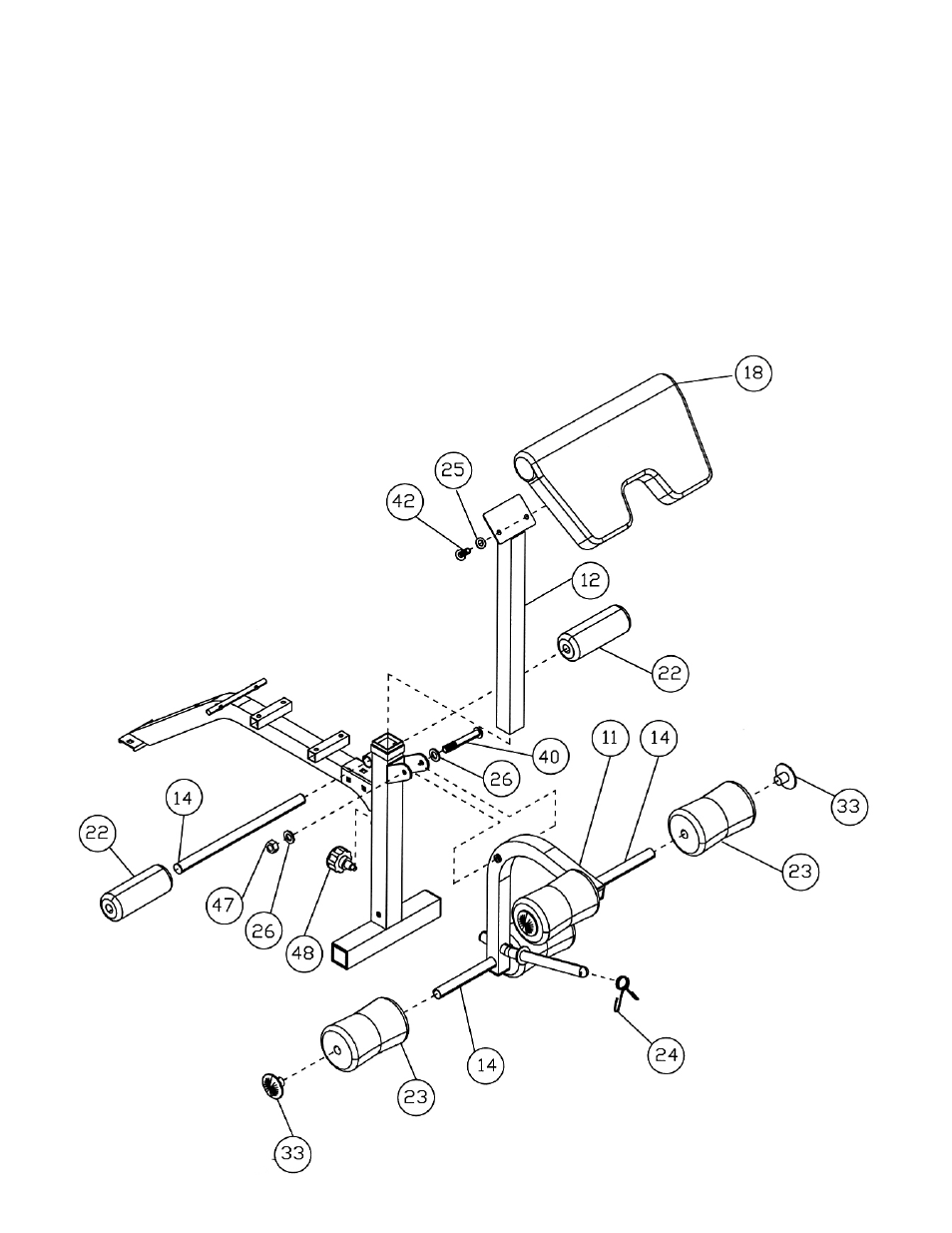

DIAGRAM 4
